Conduits
Protective conduits are key components of cable protection and routing systems in industrial, infrastructure and transport applications. Products in this category are used to protect cables against mechanical damage, UV radiation, moisture, chemicals and the effects of high or low temperatures. Thanks to their design and the availability of many material and dimensional variants, they can be used in both simple and very demanding working environments.
What distinguishes the protective tubes in our offer
A very wide range of outer diameters - from 6 mm to over 100 mm, allowing selection for single cables and large cable bundles.
A wide range of materials - including polyamide PA6, PA12, PP, PU and special ESD, low-smoke, halogen-free, UV-resistant and chemical-resistant plastics.
Various protection classes - from IP40 to IP69K, including products for pressure washing and hygienic applications.
Compliance with industry standards - variants available with certifications such as EN 45545-2, UL, CSA, SMP 800C, ASTM E162/E662, allowing them to be used in railways, the food industry and the energy sector.
Dedicated variants - including for mobile, food, rail and explosion hazard applications.
Key technologies of FLEXA protective hoses
Multi-layer construction - resistance to external factors
Applies to the series: ROHRflex PA 12+
Sheath pipes with a multi-layer construction (Multilayer Technology) offer significantly better protection against UV radiation, oils and aggressive atmospheric factors than standard single-layer sheaths. Thanks to the use of PA12+ polyamide, these sheaths are characterised by:
- Resistance to prolonged exposure to sunlight - ideal for outdoor installations, solar systems and railways.
- Increased durability in environments exposed to oils, fuels and chemicals - dedicated to the chemical and offshore industries.
- Improved mechanical strength while maintaining flexibility - they do not crack under dynamic stress.
Applications: Railways, chemical industry, road infrastructure, solar systems.
S-Profile spiral construction and double interlacing (Agraff) - Maximum mechanical resistance and tightness

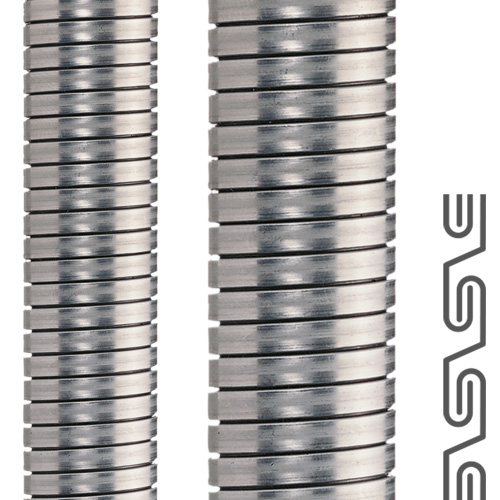

Applies to the series: SPR, SPR-AS, SPR-VA, FLEXAgraff PUAS, FLEXAgraff PUF, FLEXAgraff SIASF, FlexAgraff AS, FlexAgraff VA
FLEXA protective pipes use two key mechanical technologies:
- Spirally wound S-Profile construction - provides high flexibility and abrasion resistance, used in systems where the pipe is regularly bent and exposed to dynamic loads.
- Double interlaced Agraff construction - thanks to the use of double overlapping metal profiles, pipes of this construction are tighter and more resistant to compression than standard spiral covers..
Application: CNC machines, robotics, railways, heavy industry, energy.
Protection against chemicals and corrosion
Applies to the series: ROHRflex PU, SPR-AS, SPR-VA, FlexAgraff VA
FLEXA protective tubes use various protective materials to ensure resistance to aggressive substances.

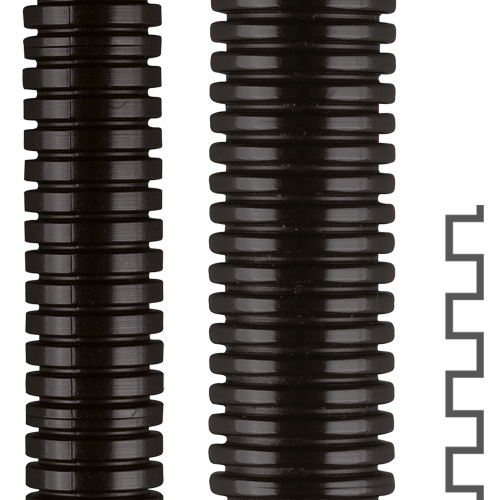

- Polyurethane PU coatings (ROHRflex PU, FLEXAgraff PUAS, FLEXAgraff PUF) - guarantee resistance to oils, fuels and chemicals, which is crucial in the automotive, chemical and railway industries.
- Galvanised steel (SPR-AS) – provides resistance to moisture and weather conditions, used in outdoor installations.
- Stainless steel (SPR-VA, FlexAgraff VA) - offers complete corrosion resistance, ideal for marine and offshore environments.
Application: Offshore, railways, chemical industry, outdoor infrastructure.
EMC protection - shielding against electromagnetic interference
Applies to the series: ROHRflex PA 6CU, HGCU, HGCUF, HGCUK, FLEXAgraff CUPU
Sensitive control, automation and telecommunications systems require effective protection against electromagnetic interference (EMC). FLEXA uses metal braids and conductive screens to protect cables from electrical noise induction.
EMC shielding technologies::
- Copper wire braids (HGCU, HGCUF, HGCUK) - effectively reduce the impact of electromagnetic interference on signal cables.

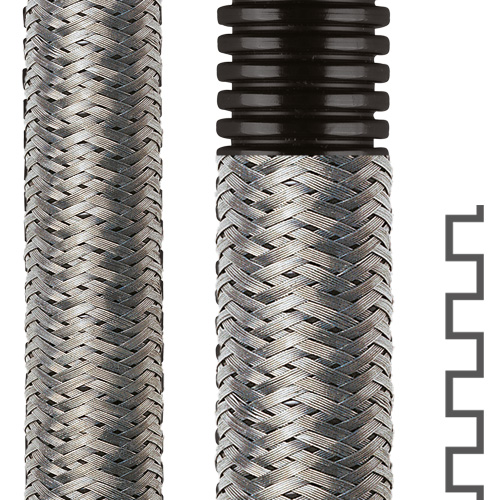

- ROHRflex PA 6CU - plastic pipe with EMC shielding, designed for electrical installations sensitive to interference.
- FLEXAgraff CUPU - EMC shielding in a metal Agraff structure, used in control and automation systems.
Application: Control systems, telecommunications, aviation and military industries.
IP67/IP68/IP69K tightness- protection against water and dust in harsh conditions

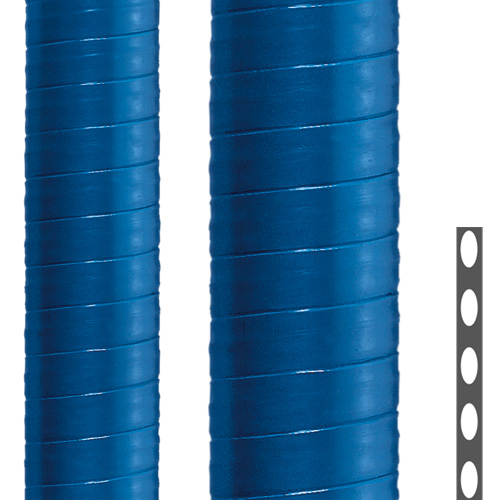

Applies to the series: AIRflex GRS Food, FlexAgraff VA, SPR-VA, SPR-PU-AS, FLEXAgraff PUAS, FLEXAgraff PUF
The IP rating determines the level of protection against dust, moisture and pressure washing. FLEXA protective tubes offer various levels of sealing, allowing them to be used in the most demanding environments.
Zastosowanie: Przemysł spożywczy, laboratoria, myjnie przemysłowe, infrastruktura kolejowa i drogowa.
Applications of protective conduits
- cable protection in machines, control cabinets, distributed installations
- automotive, railway, food and energy industries
- dynamic cable routing in robotics and mobile systems
- installations exposed to vibration, moisture, high temperatures, chemicals or pressure cleaning
Flexa FLEXAgraff-CU-PU - protective conduit
