Flexa PS-VA - protective conduit

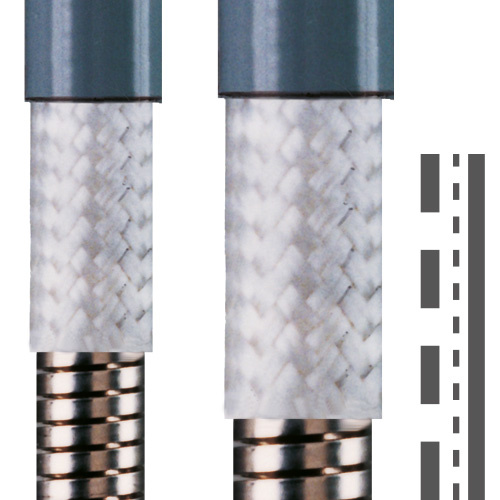

- Flexa PS-VA is a protective conduit for the medical-, sensor technology and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing. Available in grey.
Flexa PS-VA
Flexa PS-VA is a protective conduit for the medical-, sensor technology and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing. Available in grey.
Tubing features:
- flexible
- stretch resistant
- air- and liquid-tight
- temperature resistant
- low flammability
- no appearance of toxic and corrosive fire gases
- widely resistant to solvents and chemicals
- free of halogen and cadmium
Applications:
- Meters
- Fiber Optic Technology
- Technical endoscopy
- Sensor Technology
- Medical Technology
| FLEXA No. | Colour | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|
| 1013390002 | Grey | 2,5 | 4,4 | 14 | 35 | 0,028 | * |
| 1013390003 | Grey | 3,0 | 5,3 | 20 | 50 | 0,044 | * |
| 1013390013 | Grey | 3,5 | 5,8 | 20 | 50 | 0,050 | * |
| 1013390004 | Grey | 4,0 | 6,5 | 25 | 65 | 0,065 | * |
| 1013390014 | Grey | 4,5 | 7,0 | 25 | 65 | 0,072 | * |
| 1013390005 | Grey | 5,0 | 7,5 | 25 | 65 | 0,079 | * |
| 1013390006 | Grey | 6,0 | 8,9 | 35 | 90 | 0,108 | * |
| 1013390007 | Grey | 7,0 | 10,1 | 45 | 110 | 0,141 | * |
| 1013390008 | Grey | 8,0 | 11,6 | 45 | 110 | 0,181 | * |
To download
Producer
Product code
PS-VA
Series
Material
Stainless Steel AISI 304
, Fiberglass
, Silicone rubber
Temperature range
-50...+180°C
Tubing inner diameter (mm)
2,5 x 4,4 mm
, 3,0 x 5,3 mm
, 3,5 x 5,8 mm
, 4,0 x 6,5 mm
, 4,5 x 7,0 mm
, 5,0 x 7,5 mm
, 6,0 x 8,9 mm
, 7,0 x 10,1 mm
, 8,0 x 11,6 mm
Tubing outer diameter (mm)
4,4 mm
, 5,3 mm
, 5,8 mm
, 6,5 mm
, 7 mm
, 7,5 mm
, 8,9 mm
, 10,1 mm
, 11,6 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Profile
Plain
Colour
Grey
