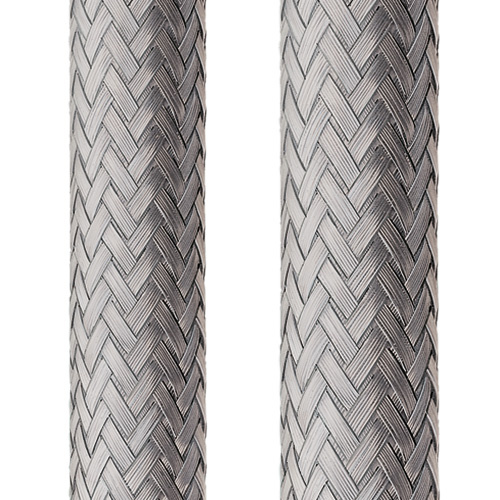

Flexa HG-VA - protective conduit
- Flexa HG-VA is a protective conduit consisting of round braided stainless steel wires with double crossed looping at the different braiding angles, especially for external application.
Flexa HG-VA
Flexa HG-VA is a protective conduit consisting of round braided stainless steel wires with double crossed looping at the different braiding angles, especially for external application.
Tubing features:
- axially pushed together, in a certain proportion, depending upon the construction of the braiding up to the double diameter
- easy pulling in of cables
- the braiding becomes tight by stretching
- protection from hot swarfs
Applications:
- Automation
- Electrical installations
- Automotive
- Cable Ties
- Machinery and equipment, injection molding machines, cutting machines
- Shipbuilding
| FLEXA No. | Colour | NW [mm] |
Operative range [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|
| 14050301008 | Stainless steel | 6,0 | 5–12,0 | 0,061 | 100 |
| 14050301013 | Stainless steel | 10,0 | 8–17,0 | 0,095 | 50 |
| 14050301017 | Stainless steel | 15,0 | 12–22,0 | 0,110 | 50 |
| 14050301025 | Stainless steel | 20,0 | 16–27,0 | 0,186 | 50 |
| 14050301040 | Stainless steel | 25,0 | 20–35,0 | 0,302 | 25 |
To download
Producer
Product code
HG-VA
Series
Material
Stainless steel
Temperature range
-50...+600°C
Tubing inner diameter (mm)
5,0 x 12,0 mm
, 8,0 x 17,0 mm
, 12,0 x 22,0 mm
, 16,0 x 27,0 mm
, 20,0 x 35,0 mm
Tubing outer diameter (mm)
6 mm
, 10 mm
, 15 mm
, 20 mm
, 25 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Unpainted
