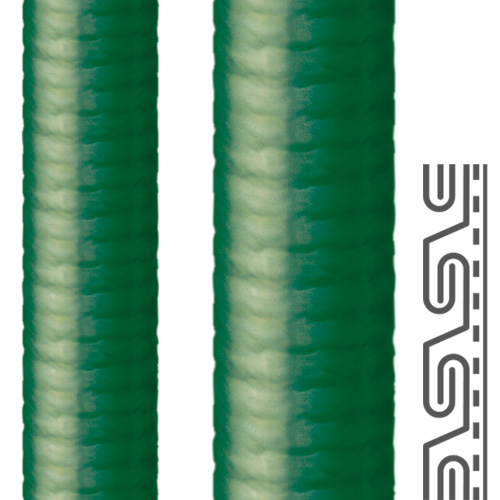

Flexa FLEXAgraff-CU-PU - protective conduit
- Flexa FLEXAgraff-CU-PU is a metal protective conduit made from strip-wound cold galvanized steel, with copper wire braiding and PU sheathing. Double-overlapped profile (Agraff). Conduit for EMC applications. Available in green.
Flexa FLEXAgraff-CU-PU
Flexa FLEXAgraff-CU-PU is a metal protective conduit made from strip-wound cold galvanized steel, with copper wire braiding and PU sheathing. Double-overlapped profile (Agraff). Conduit for EMC applications. Available in green.
FLEXAgraff-CU-PU tubing features:
- V2 according to UL 94
- high stretching and twisting strain
- liquid tight
- widely resistant to acids and solvents
- resistant to oil, benzine, grease
- free of halogen, silicone, cadmium
- microbe resistant
- flame-resistant
- high shielding factor [EMC]
- approved acc. to DIN EN IEC 61386-23
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications:
- Shipbuilding
- Automation
- Electrical installations
- Machinery and equipment
- Automotive
- Railway
| FLEXA No. | Colour | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|
| 12540707011 | Green | 11,0 | 14,0 | 50 | 125 | 0,280 | 25 |
| 12540707013 | Green | 13,0 | 17,0 | 60 | 150 | 0,260 | 25 |
| 12540707017 | Green | 17,0 | 21,0 | 70 | 175 | 0,480 | 25 |
| 12540707023 | Green | 23,0 | 27,0 | 90 | 225 | 0,530 | 25 |
| 12540707029 | Green | 29,0 | 36,0 | 130 | 325 | 1,000 | 10 |
| 12540707038 | Green | 38,0 | 45,0 | 150 | 375 | 1,250 | 10 |
| 12540707049 | Green | 49,0 | 56,0 | 210 | 525 | 1,690 | 10 |
To download
Producer
Product code
FLEXAgraff-CU-PU
Series
Material
Steel strip cold galvanized
, Tinned copper
, Polyurethane - PU
Temperature range
-50...+130°C
Tubing inner diameter (mm)
11,0 x 15,0 mm
, 13,0 x 18,0 mm
, 17,0 x 22,0 mm
, 23,0 x 28,0 mm
, 29,0 x 37,0 mm
, 38,0 x 46,0 mm
, 49,0 x 57,0 mm
Tubing outer diameter (mm)
14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Green
Application features
EMC
Certificate
DIN EN IEC 61386-23
, EN 50289-1-6
