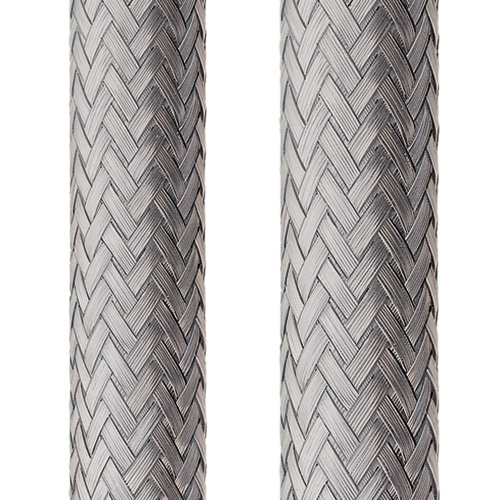

Flexa HG-CU - protective conduit
- Flexa HG-CU is a protective conduit consisting of round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%.
Flexa HG-CU
Flexa HG-CU is a protective conduit consisting of round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%.
Tubing features:
- axially pushed together, in a certain proportion, depending upon the construction of the braiding up to the double diameter
- easy pulling in of cables
- the braiding becomes tight by stretching
- protection from hot swarfs
- high shielding factor
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications:
- Automation
- Electrical installations
- Automotive
- Cable Ties
- Machinery and equipment
- Railway
- Shipbuilding
| FLEXA No. | Colour | NW [mm] |
Aufbau [mm] |
Operative range [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|
| 14050701008 | Zinc | 6.0 | ID 6, 5.0 – 12.0 mm | 5–12.0 | 0.060 | 100 |
| 14050701013 | Zinc | 10.0 | ID 10, 8.0 – 17.0 mm | 8–17.0 | 0.104 | 50 |
| 14050701017 | Zinc | 15.0 | ID 15, 12.0 – 22.0 mm | 12–22.0 | 0.098 | 50 |
| 14050701025 | Zinc | 20.0 | ID 20, 16.0 – 27.0 mm | 16–27.0 | 0.180 | 25 |
| 14050701040 | Zinc | 25.0 | ID 25, 20.0 – 35.0 mm | 20–35.0 | 0.204 | 25 |
| 14050701055 | Zinc | 35.0 | ID 35, 25.0 – 45.0 mm | 25–45.0 | 0.240 | 25 |
| 14050701108 | Zinc | 6.0 | ID 6, 5.0 – 12.0 mm | 5–12.0 | 0.060 | 10 |
| 14050701113 | Zinc | 10.0 | ID 10, 8.0 – 17.0 mm | 8–17.0 | 0.104 | 10 |
| 14050701117 | Zinc | 15.0 | ID 15, 12.0 – 22.0 mm | 12–22.0 | 0.098 | 10 |
| 14050701125 | Zinc | 20.0 | ID 20, 16.0 – 27.0 mm | 16–27.0 | 0.180 | 10 |
| 14050701140 | Zinc | 25.0 | ID 25, 20.0 – 35.0 mm | 20–35.0 | 0.204 | 10 |
| 14050701155 | Zinc | 35.0 | ID 35, 25.0 – 45.0 mm | 25–45.0 | 0.240 | 10 |
To download
Producer
Product code
HG-CU
Series
Material
Tinned copper
Temperature range
-50...+250°C
Tubing inner diameter (mm)
5,0 x 12,0 mm
, 8,0 x 17,0 mm
, 12,0 x 22,0 mm
, 16,0 x 27,0 mm
, 20,0 x 35,0 mm
, 25,0 x 45,0 mm
Tubing outer diameter (mm)
6 mm
, 10 mm
, 15 mm
, 20 mm
, 25 mm
, 35 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Unpainted
Certificate
EN 50289-1-6
