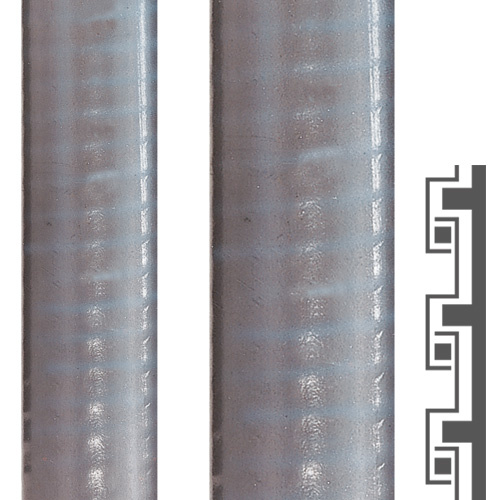

Flexa LIQUID-TIGHT-EF - protective conduit

  • LIQUID-TIGHT-EF is Flexa's metal, tape-wrapped protective conduit. Hooked profile, special fibre seal. Smooth, reinforced, fire-resistant PVC sheathing. Available in grey.
Flexa LIQUID-TIGHT-EF - protective conduit
Temperature range: -25...+100°C
Profile: Hooked
Colour: Grey
Ask about the product

Flexa LIQUID-TIGHT-EF

Flexa LIQUID-TIGHT-EF is a metal, tape-wrapped protective conduit. Hooked profile, special fibre seal. Smooth, reinforced, fire-resistant PVC sheathing. Available in grey.


Tubing features:

  • extremely liquid-tight
  • widely resistant to oils and acids
  • free of silicone and cadmium
  • flexible
  • complies with American installation specifications
  • approved acc. to DIN EN IEC 61386-23

Applications

  • Requirements for International shipbuilding
  • Automation
  • Electrical installations
  • Machinery and equipment
  • Automotive

FLEXA No. Colour OD
[inch]
ID
[mm]
OD
[mm]
BR stat.
[mm]
BR dyn.
[mm]
Weight
[kg/m]
PU
[m]
12080111010Grey5/16 inch10,014,51052650,14050
12080111012Grey3/8 inch12,518,01453600,26050
12080111016Grey1/2 inch16,021,01704250,32050
12080111021Grey3/4 inch21,026,51904750,44050
12080111026Grey1 inch26,533,01954900,70050
12080111035Grey1 1/4 inch35,542,02506251,00025
12080111050Grey2 inch51,560,03207801,20025
To download
Producer
Product code
LIQUID-TIGHT-EF
Material
Steel strip cold galvanized
,
PVC
Temperature range
-25...+100°C
Tubing inner diameter (mm)
10,0 x 14,5 mm
,
12,5 x 18,0 mm
,
16.0 x 21.0 mm
,
21.0 x 26.5 mm
,
26.5 x 33 mm
,
35.5 x 42.0 mm
,
51,5 x 60,0 mm
Tubing outer diameter (mm)
14.5 mm
,
18 mm
,
21 mm
,
26.5 mm
,
33 mm
,
42 mm
,
60 mm
Resistance to compression
Increased
Flame resistance
Regular
Insulating value
Regular
UV resistance
Regular
Resistance to impact
Regular
Operation in smoke
Increased
Pertol resistance
Regular
Oil resistance
Increased
Tensile strength
Increased
Flexibility
Regular
Profile
Hooked
Colour
Grey
Certificate
DIN EN IEC 61386-23
