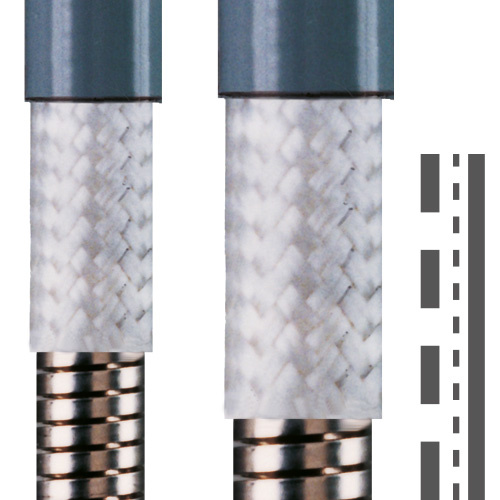

Flexa PSL-VA - protective conduit
- Flexa PSL-VA is a protective conduit for the medical-, sensor technology and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing. Available in grey.
Flexa PSL-VA
Flexa PSL-VA is a protective conduit for the medical-, sensor technology and the beam wave guide technology, helix made of stainless steel, fiber glass braiding, silicone rubber sheathing. Available in grey.
Tubing features:
- flexible
- stretch resistant
- air- and liquid-tight
- temperature resistant
- low flammability
- no appearance of toxic and corrosive fire gases
- widely resistant to solvents and chemicals
- free of halogen and cadmium
Applications:
- Meters
- Optoelectronics
- Fiber Optic Technology
- Technical endoscopy
- Sensor Technology
- Medical Technology
| FLEXA No. | Colour | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|
| 10133901003 | Grey | 3,3 | 5,3 | 10 | 25 | 0,030 | * |
| 10133901013 | Grey | 3,8 | 5,8 | 12 | 30 | 0,035 | * |
| 10133901014 | Grey | 4,5 | 6,5 | 15 | 40 | 0,040 | * |
| 10133901005 | Grey | 5,0 | 7,0 | 20 | 50 | 0,043 | * |
| 10133901006 | Grey | 6,5 | 8,9 | 25 | 65 | 0,065 | * |
| 10133901008 | Grey | 7,2 | 9,6 | 25 | 65 | 0,075 | * |
| 10133901007 | Grey | 7,7 | 10,1 | 30 | 75 | 0,180 | * |
To download
Producer
Product code
PSL-VA
Series
Material
Stainless Steel AISI 304
, Fiberglass
, Silicone rubber
Temperature range
-50...+180°C
Tubing inner diameter (mm)
3,3 x 5,3 mm
, 3,8 x 5,8 mm
, 4,5 x 6,5 mm
, 5,0 x 7,0 mm
, 6,5 x 8,9 mm
, 7,2 x 9,6 mm
, 7,7 x 10,1 mm
Tubing outer diameter (mm)
5,3 mm
, 5,8 mm
, 6,5 mm
, 7 mm
, 8,9 mm
, 9,6 mm
, 10,1 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Profile
Plain
Colour
Grey
