Flexa FLEXAgraff-SI-ASF - protective conduit

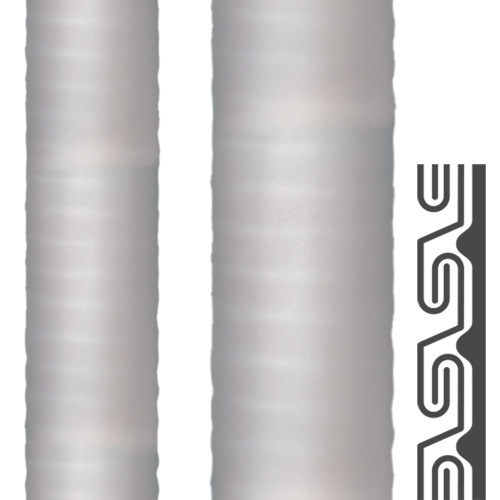

- Flexa FLEXAgraff-SI-ASF is a metal protective conduit, made from strip-wound cold-galvanized steel, in silicone sheating. Flame retardant, has double-overlapped profile (Agraff), available in grey.
Flexa FLEXAgraff-SI-ASF
Flexa FLEXAgraff-SI-ASF is a metal protective conduit, made from strip-wound cold-galvanized steel, in silicone sheating. Flame retardant, has double-overlapped profile (Agraff), available in grey.
Tubing features:
- high tensile and torsional strength
- good electrical insulation
- very good resistance against ozone, ultra-violet radiation and atmospheric influences
- no untwisting of the conduit
- very flexible
- high shielding factor
- low flammability
- free of halogen
- no appearance of toxic and corrosive fire gases
- high temperature resistant
Applications:
- Power plants
- Shipbuilding
- Automation
- Electrical installations
- Machinery and equipment
- Automotive
| FLEXA No. | Colour | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|
| 12140801010 | Grey | 10,0 | 14,0 | 50 | 125 | 0,180 | 50 |
| 12140801012 | Grey | 12,0 | 17,0 | 60 | 150 | 0,230 | 50 |
| 12140801016 | Grey | 16,0 | 21,0 | 70 | 175 | 0,370 | 50 |
| 12140801022 | Grey | 21,0 | 27,0 | 90 | 225 | 0,500 | 50 |
| 12140801028 | Grey | 27,0 | 36,0 | 130 | 325 | 0,860 | 25 |
| 12140801037 | Grey | 37,0 | 45,0 | 150 | 375 | 1,000 | 25 |
| 12140801048 | Grey | 47,0 | 56,0 | 210 | 525 | 1,480 | 25 |
To download
Producer
Product code
FLEXAgraff-SI-ASF
Series
Material
Steel strip cold galvanized
, Silicone rubber
Temperature range
-50...+180°C
Tubing inner diameter (mm)
10.0 x 14.0 mm
, 12,0 x 17,0 mm
, 16.0 x 21.0 mm
, 21.0 x 27.0 mm
, 27,0 x 36,0 mm
, 37,0 x 45,0 mm
, 47,0 x 56,0 mm
Tubing outer diameter (mm)
14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Flame resistance
Increased
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Profile
Double-overlapped (Agraff)
Colour
Grey
