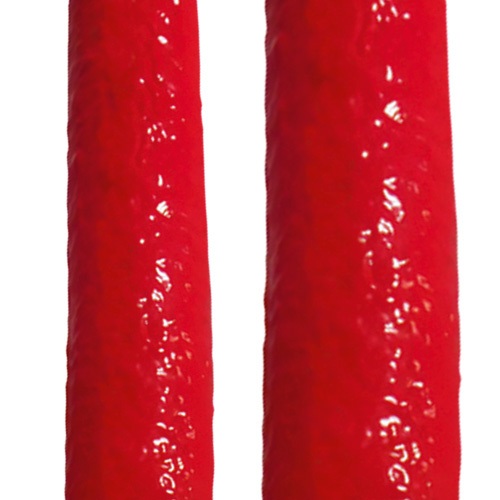

Flexa FLEXAhightemp - protective conduit
- Flexa FLEXAhightemp is a fire protection conduit, non-flammable. Made from calcium-silicate braiding with silicone sheathing. Available in red color.
Flexa FLEXAhightemp
Flexa FLEXAhightemp is a fire protection conduit, non-flammable. Made from calcium-silicate braiding with silicone sheathing. Available in red color.
Tubing features:
- weatherproof
- watertight
- widely resistant to seawater, acids and oils
- good radiation resistance
- abrasive resistant
- very flexible
- non-flammable, even no afterglow
- self-extinguishing DIN 5510 [ST2/SR2/S4]
Applications:
- Mining
- Glass industries
- Steel industry
- Foundry
- Chemical Industry
- Petroleum refineries
- Shipbuilding
- Traffic Engineering
- Railway
| FLEXA No. | Colour | NW [mm] |
ID [mm] |
OD [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|
| 12061809010 | Red | 10,0 | 10,0 | 17,0 | 0,119 | 15 |
| 12061809015 | Red | 15,0 | 15,0 | 22,0 | 0,209 | 15 |
| 12061809020 | Red | 20,0 | 20,0 | 27,0 | 0,213 | 15 |
| 12061809022 | Red | 22,0 | 22,0 | 29,0 | 0,239 | 15 |
| 12061809025 | Red | 25,0 | 25,0 | 32,0 | 0,291 | 15 |
| 12061809030 | Red | 30,0 | 30,0 | 37,0 | 0,342 | 15 |
| 12061809035 | Red | 35,0 | 35,0 | 42,0 | 0,390 | 15 |
| 12061809040 | Red | 40,0 | 40,0 | 47,0 | 0,380 | 15 |
| 12061809050 | Red | 50,0 | 50,0 | 57,0 | 0,733 | 15 |
| 12061809060 | Red | 60,0 | 60,0 | 67,0 | 0,750 | 15 |
To download
Producer
Product code
FLEXAhightemp
Series
Material
Calcium-silicate
, Silicone
Temperature range
-50...+700°C
Tubing inner diameter (mm)
10,0 x 17,0 mm
, 15,0 x 22,0 mm
, 20,0 x 27,0 mm
, 22,0 x 29,0 mm
, 25,0 x 32,0 mm
, 30,0 x 37,0 mm
, 35.0 x 42.0 mm
, 40,0 x 47,0 mm
, 50,0 x 57,0 mm
, 60,0 x 67,0 mm
Tubing outer diameter (mm)
17 mm
, 22 mm
, 27 mm
, 29 mm
, 32 mm
, 37 mm
, 42 mm
, 47 mm
, 57 mm
, 67 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Red
Certificate
DIN 5510 Teil 2 | part 2 [S4 / SR2 / ST2] [eng] (62)
