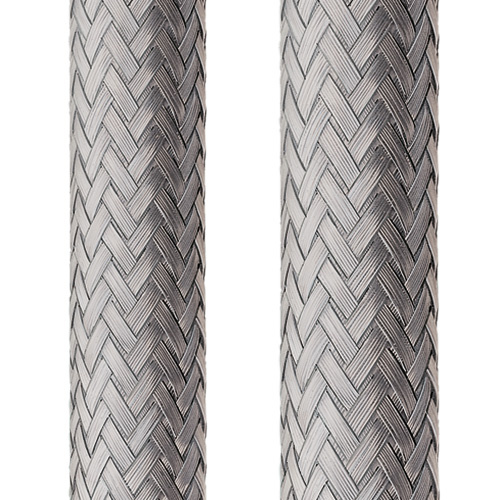

Flexa HG-CU-F - protective conduit
- Flexa HG-CU-F is a protective conduit consisting of fine, round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%.
Flexa HG-CU-F
Flexa HG-CU-F is a protective conduit consisting of fine, round braided tinned-copper wires with double crossed looping at the different braiding angles, Coverage: >85%.
Tubing features:
- axially pushed together, in a certain proportion, depending upon the construction of the braiding up to the double diameter
- easy pulling in of cables
- the braiding becomes tight by stretching
- protection from hot swarfs
- high shielding factor
- screening factor up to 30 MHz acc. to EN 50289-1-6 up to 80 dB
Applications:
- Automation
- Electrical installations
- Automotive
- Cable Ties
- Machinery and equipment
- Railway
- Shipbuilding
| FLEXA No. | Colour | NW [mm] |
Aufbau [mm] |
Operative range [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|
| 14050702004 | Zinc | 4.0 | ID 4, 4.0 – 8.0 mm | 4.0–8.0 | 0.020 | 100 |
| 14050702006 | Zinc | 6.0 | ID 6, 6.0 – 12.0 mm | 6.0–12.0 | 0.030 | 100 |
| 14050702010 | Zinc | 10.0 | ID 10, 8.0 – 16.0 mm | 8.0–16.0 | 0.038 | 100 |
| 14050702015 | Zinc | 15.0 | ID 15, 10.0 – 20.0 mm | 10.0–20.0 | 0.038 | 100 |
| 14050702020 | Zinc | 20.0 | ID 20, 15.0 – 30.0 mm | 15.0–30.0 | 0.060 | 100 |
| 14050702025 | Zinc | 25.0 | ID 25, 19.0 – 38.0 mm | 19.0–38.0 | 0.092 | 100 |
| 14050702035 | Zinc | 35.0 | ID 35, 24.0 – 48.0 mm | 24.0–48.0 | 0.111 | 100 |
| 14050702040 | Zinc | 40.0 | ID 40, 32.0 – 64.0 mm | 32.0–64.0 | 0.152 | 100 |
To download
Producer
Product code
HG-CU-F
Series
Material
Tinned copper
Temperature range
-50...+250°C
Tubing inner diameter (mm)
4,0 x 8,0 mm
, 6,0 x 12,0 mm
, 8,0 x 16,0 mm
, 10,0 x 20,0 mm
, 15,0 x 30,0 mm
, 19,0 x 38,0 mm
, 24,0 x 48,0 mm
, 32,0 x 64,0 mm
Tubing outer diameter (mm)
4 mm
, 6 mm
, 10 mm
, 15 mm
, 20 mm
, 25 mm
, 30 mm
, 40 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Colour
Unpainted
Certificate
EN 50289-1-6
