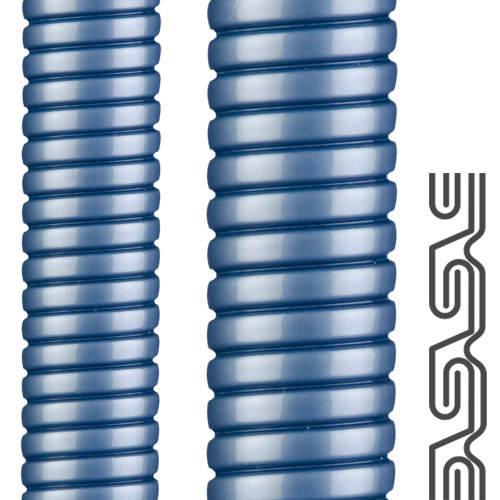

Flexa FLEXAgraff-PU-AS - protective conduit
- Flexa FLEXAgraff-PU-AS s a metal protective conduit, made from cold-galvanized strip-wound steel, sheathed in flame retardant polyurethane. Has a double-overlapped profile (Agraff). Available in blue.
Flexa FLEXAgraff-PU-AS
Flexa FLEXAgraff-PU-AS s a metal protective conduit, made from cold-galvanized strip-wound steel, sheathed in flame retardant polyurethane. Has a double-overlapped profile (Agraff). Available in blue.
Tubing features:
- V2 according to UL 94
- high tensile and twisting strength
- resistant to oil, benzine and grease
- widely resistant to solvents and acids
- free of halogen, silicone, cadmium
- good performance at low temperatures
- no untwisting of the conduit
- very flexible
- high shielding factor
- microbe resistant
- flame-resistant
- approved acc. to DIN EN IEC 61386-23
Applications:
- Shipbuilding
- Automation
- Electrical installations
- Machinery and equipment
- Automotive
| FLEXA No. | Colour | ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|
| 12130101007 | Blue | 7,0 | 10,0 | 35 | 90 | 0,110 | 50 |
| 12130101011 | Blue | 11,0 | 14,0 | 45 | 115 | 0,150 | 50 |
| 12130101013 | Blue | 13,0 | 17,0 | 50 | 125 | 0,260 | 50 |
| 12130101017 | Blue | 17,0 | 21,0 | 75 | 190 | 0,340 | 50 |
| 12130101023 | Blue | 23,0 | 27,0 | 115 | 290 | 0,440 | 50 |
| 12130101029 | Blue | 29,0 | 36,0 | 125 | 315 | 0,685 | 25 |
| 12130101038 | Blue | 38,0 | 45,0 | 175 | 440 | 0,960 | 25 |
| 12130101049 | Blue | 48,0 | 56,0 | 240 | 600 | 1,200 | 25 |
| 12131101007 | Blue | 7,0 | 10,0 | 35 | 90 | 0,110 | 10 |
| 12131101011 | Blue | 11,0 | 14,0 | 45 | 115 | 0,150 | 10 |
| 12131101013 | Blue | 13,0 | 17,0 | 50 | 125 | 0,260 | 10 |
| 12131101017 | Blue | 17,0 | 21,0 | 75 | 190 | 0,340 | 10 |
| 12131101023 | Blue | 23,0 | 27,0 | 115 | 290 | 0,440 | 10 |
| 12131101029 | Blue | 29,0 | 36,0 | 125 | 315 | 0,685 | 10 |
| 12131101038 | Blue | 38,0 | 45,0 | 175 | 440 | 0,960 | 10 |
| 12131101049 | Blue | 48,0 | 56,0 | 240 | 600 | 1,200 | 10 |
To download
Producer
Product code
FLEXAgraff-PU-AS
Series
Material
Steel strip cold galvanized
, Polyurethane - PU
Temperature range
-50...+100°C
Tubing inner diameter (mm)
11,0 x 14,0 mm
, 13,0 x 17,0 mm
, 17,0 x 21 mm
, 23,0 x 27,0 mm
, 29,0 x 36,0 mm
, 38,0 x 45,0 mm
, 7,0 x 10,0 mm
, 49,0 x 56,0 mm
Tubing outer diameter (mm)
14 mm
, 17 mm
, 19 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
, 10 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Profile
Double-overlapped (Agraff)
Colour
Blue
Flammability - UL Standard
UL 94 V-2
Certificate
DIN EN IEC 61386-23
