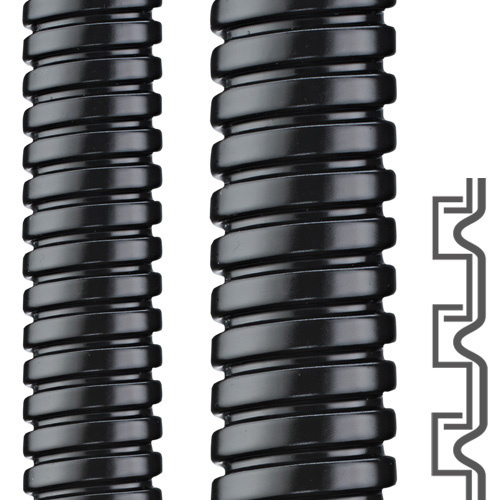

Flexa SPR-PU-F - protective conduit
- Flexa SPR-PU-F is a metal protective conduit, strip-wounded, with an “S” profile, flame retardant polyurethane sheating. Avaiable in black.
Flexa SPR-PU-F

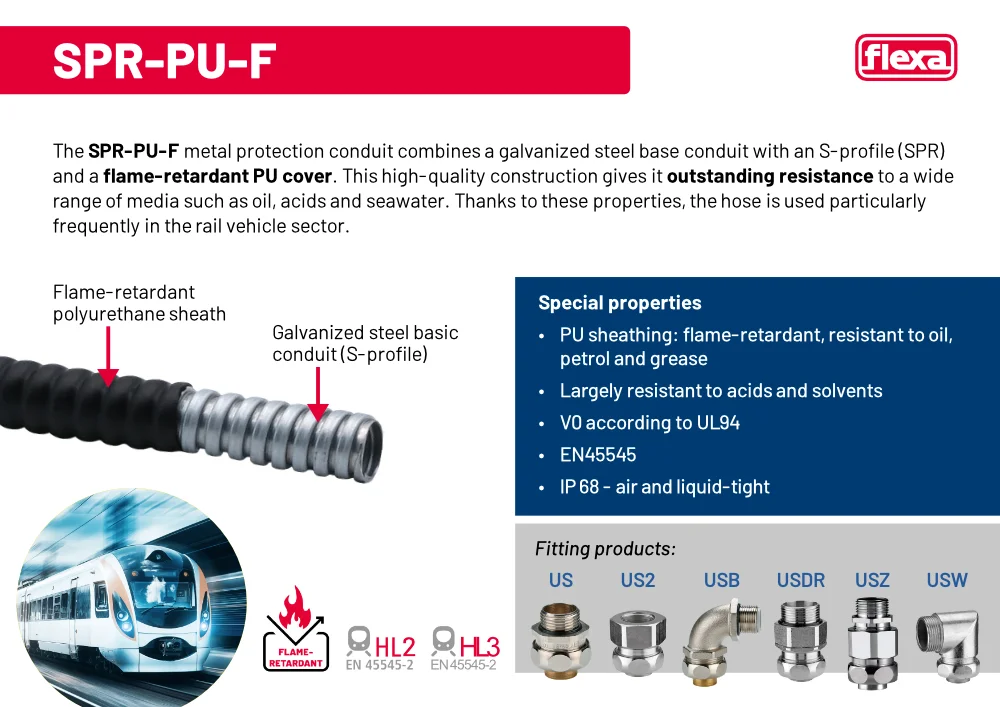

Flexa SPR-PU-F is a metal protective conduit, strip-wounded, with an “S” profile, flame retardant polyurethane sheating. Avaiable in black.
Tubing features:
- flame-retardant
- self-extinguishing
- weatherproof
- widely resistant to seawater, acids and oils
- free of halogen, silicone, cadmium
- compression-resistant
- microbe resistant
- approved acc. to EN45545-2-HL3 NFF 16-101 102 DIN EN IEC 61386-23
Applications:
- Shipbuilding
- Automation
- Electrical installations
- Machinery and equipment
- Automotive
- Railway
| FLEXA No. | Colour | OD [mm] |
ID [mm] |
OD [mm] |
BR stat. [mm] |
BR dyn. [mm] |
Weight [kg/m] |
PU [m] |
|---|---|---|---|---|---|---|---|---|
| 12231702007 | Black | 10,0 | 7,0 | 10,0 | 25 | 65 | 0,077 | 50 |
| 12231702010 | Black | 14,0 | 10,0 | 14,0 | 37 | 95 | 0,120 | 50 |
| 12231702013 | Black | 17,0 | 13,0 | 17,0 | 45 | 115 | 0,150 | 50 |
| 12231702017 | Black | 21,0 | 17,0 | 21,0 | 55 | 140 | 0,230 | 50 |
| 12231702022 | Black | 27,0 | 22,0 | 27,0 | 60 | 150 | 0,320 | 50 |
| 12231702029 | Black | 36,0 | 29,0 | 36,0 | 90 | 225 | 0,620 | 25 |
| 12231702038 | Black | 45,0 | 38,0 | 45,0 | 120 | 300 | 0,820 | 25 |
| 12231702049 | Black | 56,0 | 49,0 | 56,0 | 130 | 325 | 1,080 | 25 |
To download
Producer
Product code
SPR-PU-F
Series
Material
Galvanized steel
, Polyurethane - PU
Temperature range
-50...+130°C
Tubing inner diameter (mm)
7,0 x 10,0 mm
, 10.0 x 14.0 mm
, 13,0 x 17,0 mm
, 17,0 x 21 mm
, 22,0 x 27,0 mm
, 29,0 x 36,0 mm
, 38,0 x 45,0 mm
, 49,0 x 56,0 mm
Tubing outer diameter (mm)
10 mm
, 14 mm
, 17 mm
, 21 mm
, 27 mm
, 36 mm
, 45 mm
, 56 mm
Resistance to impact
Increased
UV resistance
Increased
Media resistance
Podwyższona
Tensile strength
Increased
Flexibility
Increased
Profile
Profile S
Colour
Black
Certificate
EN 45545-2 [HL 2] [eng] (56)
, EN 45545-2 [HL 3]
, NFF 16-101 / 102 [I2 / F2] [eng] (2)
, DIN EN IEC 61386-23
