Pflitsch blueglobe TRI fire protection - EMC cable gland
- Pflitsch brass cable glands from the blueglobe TRI series for installations with high fire protection requirements. Metric thread, T80s seal or silicone S55 seal (on request), protection rating IP68 (up to 15 bar) / IP69.
Pflitsch blueglobe TRI fire protection

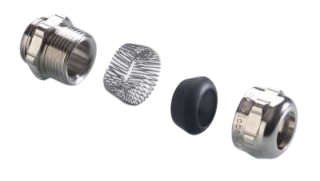

Pflitsch cable glands from the blueglobe TRI series, made of nickel-plated brass, are designed for installations requiring fire protection and EMC shielding. They are equipped with an HNBR O-ring and a black T80s sealing insert. A version with an S55 silicone insert is also available on request, which allows operation in an extended temperature range from -55°C to +180°C. The cable glands offer IP68 (up to 15 bar) and IP69 protection and meet the requirements of EN 45545-2 in class HL3. Metric thread in accordance with EN 60423. Operating temperature range: from -40°C to +130°C (T80s) or from -55°C to +180°C (S55).
Features of blueglobe TRI glands for fire protection:
- Nickel-plated brass housing
- HNBR seal and T80s insert (optional S55)
- High temperature resistance: from -40°C to +130°C (T80s) or from -55°C to +180°C (S55)
- Protection class IP68 (up to 15 bar) / IP69
- Hazard class HL3 according to EN 45545-2
- Metric thread according to EN 60423
- EMC shielding thanks to integrated cage
Applications
- Installations in rail vehicles
- Transport and infrastructure systems
- Applications requiring EMC shielding and fire resistance
- Environments with increased temperature and tightness requirements
| Part No. | Thread A [mm] |
Thread length D [mm] |
Sealing range max–min ø [mm] |
Shield diameter E1 [mm] |
Cable passage G [mm] |
Mounting height C [mm] |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|---|---|
| bg 212Bms tri | M12x1,5 | 5,0 | 8,0 – 5,0 | 5,0 | 5,0 | 21,0 | 17x18,9 | 50 |
| bg 216Bms tri | M16x1,5 | 6,0 | 11,0 – 7,0 | 9,5 | 9,5 | 25,0 | 20x22,2 | 50 |
| bg 220Bms tri | M20x1,5 | 6,5 | 14,0 – 9,0 | 12,0 | 12,0 | 29,5 | 24x26,5 | 50 |
| bg 225Bms tri | M25x1,5 | 7,5 | 20,0 – 16,0 | 16,0 | 16,0 | 32,0 | 30x33 | 50 |
| bg 232Bms tri | M32x1,5 | 8,0 | 25,0 – 20,0 | 24,0 | 24,0 | 36,0 | 36x39,5 | 25 |
| bg 240Bms tri | M40x1,5 | 15,0 | 32,0 – 26,0 | 28,0 | 28,0 | 39,0 | 45x48 | 5 |
| bg 250Bms tri | M50x1,5 | 15,0 | 42,0 – 35,0 | 37,0 | 37,0 | 39,0 | 57x61 | 5 |
| bg 263Bms tri | M63x1,5 | 20,0 | 54,0 – 46,0 | 46,0 | 46,0 | 40,0 | 68x72 | 5 |
To download
Producer
Product code
blueglobe TRI fire protection
Material
Nickel-plated Brass
Insert material
T80s
, S55
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Sealing range in millimeters
5-8 mm
, 7-11 mm
, 9-14 mm
, 16-20 mm
, 20-25 mm
, 26-32 mm
, 35-42 mm
, 46-54 mm
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 15
, 20
Product height in millimetres
26
, 31
, 35.5
, 37.5
, 40
, 50
, 54
, 60
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 61
, 72
Ingress Protection
IP68
, IP69
Application features
EMC
, Fire-resistant
Colour
Unpainted
Insert color
Black
Temperature range
-40...+130°C
, -55...+180°C
Certificate
EN 60423
, EN 45545-2 [HL 3]
