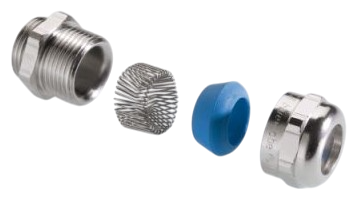

Pflitsch blueglobe TRI - brass EMC cable gland
- EMC cable gland from blueglobe TRI series by Pflitsch. Effective against EMC radiation, made from brass, with seal insert made from TPE. Thread: M12-M85, protection degree: IP 68/69.
Pflitsch blueglobe TRI
EMC cable gland made of nickel-plated brass with an exceptionally wide clamping range. This product is available with threads from M12 to M85, offers sealing up to IP68 (15 bar) and IP69, and includes a sealing insert made of TPE.
Features of blueglobe TRI cable glands:
- Electromagnetic compatibility (EMC) thanks to TRI Spring technology
- Very low contact resistance – effective 360° shielding
- No sharp edges: gentle, spring-loaded contact with the cable shield
- Fast installation without the need for additional tools or clamps
- Protection rating: IP68 (up to 15 bar) / IP69
- Operating temperature range: -40°C to +130°C
- Available on request: connection thread 15 mm (up to M32), in stainless steel and lead-free brass
Applications
- Automation and control systems
- Data and signal transmission technology
- Industrial infrastructure requiring EMC protection
- Control cabinets in high-EMI environments
- Railway industry and public transportation
- Measuring equipment and detection systems

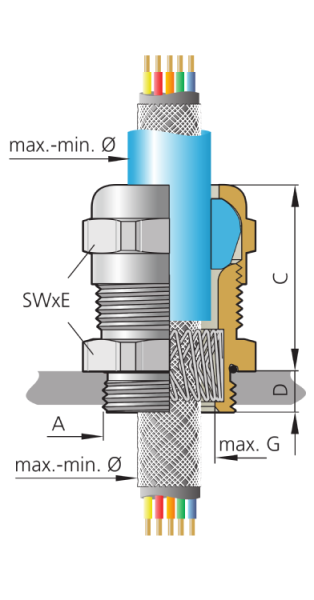

| Part No. | Thread A |
Thread length D [mm] |
Clamping range max–min ø [mm] |
Clamping range without insert max–min ø [mm] |
Clamping range with insert max–min ø [mm] |
Screening range max–min ø [mm] |
Passage G [mm] |
Mounting height C [mm] |
Wrench size SW x E [mm] |
Packing |
|---|---|---|---|---|---|---|---|---|---|---|
| bg 212ms tri | M12x1,5 | 5,0 | 8,0 – 5,0 | 8,0 – 5,0 | 5,0 - 3,0 | 5,0 | 21,0 | 17x18,9 | 50 | |
| bg 216ms tri | M16x1,5 | 6,0 | 11,0 – 7,0 | 11,0 – 7,0 | 9,0 – 5,0 | 9,0 | 25,0 | 20x22,2 | 50 | |
| bg 220ms tri | M20x1,5 | 6,5 | 14,0 – 9,0 | 14,0 – 9,0 | 12,0 – 7,0 | 12,0 | 29,0 | 24x26,5 | 50 | |
| bg 225ms tri | M25x1,5 | 7,5 | 20,0 – 11,0 | 20,0 – 16,0 | 16,0 – 11,0 | 16,0 – 10,0 | 16,0 | 30,0 | 30x33 | 50 |
| bg 232ms tri | M32x1,5 | 8,0 | 25,0 – 15,0 | 25,0 – 20,0 | 20,0 – 15,0 | 20,0 – 13,0 | 20,0 | 32,0 | 36x39,5 | 25 |
| bg 240ms tri | M40x1,5 | 15,0 | 32,0 – 20,0 | 32,0 – 26,0 | 26,0 – 20,0 | 28,0 – 20,0 | 28,0 | 35,0 | 45x48 | 10 |
| bg 250ms tri | M50x1,5 | 15,0 | 42,0 – 31,0 | 42,0 – 35,0 | 35,0 – 31,0 | 37,0 – 28,0 | 37,0 | 39,0 | 57x61 | 5 |
| bg 263ms tri | M63x1,5 | 20,0 | 54,0 – 41,0 | 54,0 – 46,0 | 46,0 – 41,0 | 46,0 – 37,0 | 46,0 | 40,0 | 68x72 | 5 |
| bg 275ms tri | M75x1,5 | 20,0 | 65,0 – 54,0 | 65,0 – 58,0 | 58,0 – 54,0 | 58,0 – 46,0 | 58,0 | 47,0 | 81x87 | 5 |
| bg 285ms tri | M85x2,0 | 20,0 | 77,0 – 65,0 | 77,0 – 70,0 | 70,0 – 65,0 | 65,0 – 58,0 | 65,0 | 49,0 | 95x102 | 1 |
To download
Producer
Product code
blueglobe TRI
Series
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
, M75
, M85
Sealing range in millimeters
3-5 mm
, 5-9 mm
, 7-12 mm
, 10-16 mm
, 13-20 mm
, 20-28 mm
, 28-37 mm
, 37-46 mm
, 46-58 mm
, 58-65 mm
Thread length in millimeters
6
, 6.5
, 7.5
, 8
, 15
, 20
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 61
, 72
, 87
, 102
Product height in millimetres
26
, 31
, 35.5
, 37.5
, 40
, 50
, 54
, 60
, 67
, 69
Ingress Protection
IP68
, IP69
Application features
EMC
Colour
Unpainted
Insert color
Blue
Certificate
EN 60423
, DIN EN 62444
Temperature range
-40...+130°C
