Pflitsch blueglobe fire protection - brass cable gland
- Pflitsch brass cable glands from the blueglobe fire protection series designed for installations with high fire protection requirements. Metric thread, T80s sealing insert, IP68/IP69 protection class.
Pflitsch blueglobe fire protection

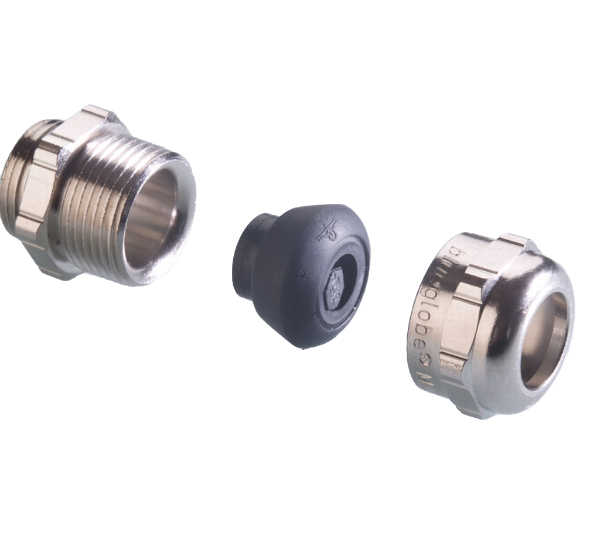

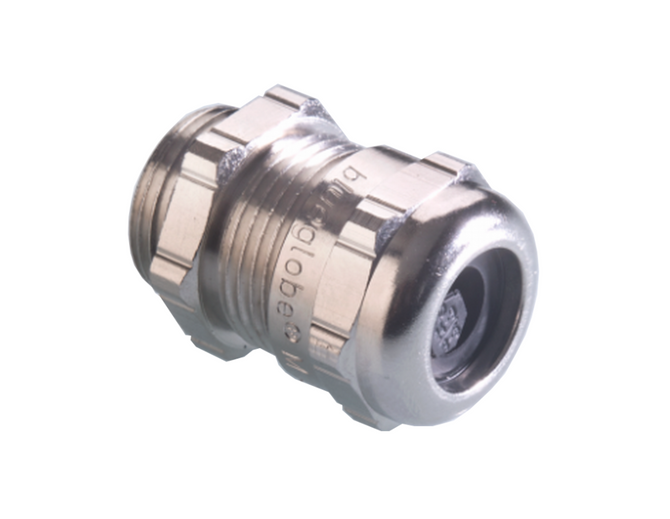

Made of brass, nickel-plated cable glands from Pflitsch's blueglobe series for fire protection applications. They provide a high degree of protection (IP68 up to 15 bar) and IP69, and are equipped with an HNBR seal and a black T80s sealing insert. The cable glands meet the requirements of EN 45545-2: HL3 and EN 45545-3: E30 and are designed for use in fire-prone environments. Metric thread in accordance with EN 60423. Operating temperature range: -40°C to +130°C.
Features of blueglobe glands for fire protection:
- Nickel-plated brass housing
- HNBR seal and T80s insert
- High temperature resistance: from -40°C to +130°C
- Protection rating IP68 (up to 15 bar) / IP69
- Hazard class HL3 according to EN 45545-2
- Fire resistance E30 according to EN 45545-3
- Metric thread
Applications
- Installations in rail vehicles
- Systems with increased fire requirements
- Transport and infrastructure technology
- Applications requiring fire resistance and high mechanical resistance
| Part No. | Thread A |
Thread length D [mm] |
Clamping range max–min ø [mm] |
Mounting height C [mm] |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|
| bg 212Bms | M12x1.5 | 5.0 | 8.0 – 2.0 | 20.8 | 17x18.9 | 50 |
| bg 216Bms | M16x1.5 | 6.0 | 11.0 – 4.0 | 25.0 | 20x22.2 | 50 |
| bg 220Bms | M20x1.5 | 6.5 | 14.0 – 5.0 | 29.5 | 24x26.5 | 50 |
| bg 225Bms | M25x1.5 | 7.5 | 20.0 – 11.0 | 30.0 | 30x33 | 50 |
| bg 232Bms | M32x1.5 | 8.0 | 25.0 – 15.0 | 32.0 | 36x39.5 | 5 |
| bg 240Bms | M40x1.5 | 8.0 | 32.0 – 20.0 | 35.0 | 45x48 | 5 |
| bg 250Bms | M50x1.5 | 10.0 | 42.0 – 31.0 | 38.0 | 57x61 | 5 |
| bg 263Bms | M63x1.5 | 10.0 | 54.0 – 41.0 | 40.0 | 68x72 | 5 |
| Part No. | Thread A |
Thread length D [mm] |
Clamping range max–min ø [mm] |
Mounting height C [mm] |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|
| bg 812Bms | M12x1,5 | 15,0 | 8,0 – 2,0 | 21,0 | 17x18,9 | 50 |
| bg 816Bms | M16x1,5 | 15,0 | 11,0 – 4,0 | 25,0 | 20x22,2 | 50 |
| bg 820Bms | M20x1,5 | 15,0 | 14,0 – 5,0 | 29,5 | 24x26,5 | 50 |
| bg 825Bms | M25x1,5 | 15,0 | 20,0 – 11,0 | 30,0 | 30x33 | 50 |
| bg 832Bms | M32x1,5 | 15,0 | 25,0 – 15,0 | 32,0 | 36x39,5 | 25 |
To download
Producer
Product code
blueglobe fire protection
Material
Nickel-plated Brass
Insert material
T80s
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Sealing range in millimeters
2-8 mm
, 4-11 mm
, 5-14 mm
, 11-20 mm
, 15-25 mm
, 20-32 mm
, 31-42 mm
, 41-54 mm
Thread length in millimeters
6
, 6.5
, 7.5
, 8
, 10
, 15
Product height in millimetres
25.8
, 31
, 36
, 37.5
, 40
, 43
, 48
, 50
Product width in millimeters
18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 61
, 72
Ingress Protection
IP68
, IP69
Application features
Fire-resistant
Colour
Unpainted
Insert color
Black
Certificate
EN 60423
, EN 45545-2 [HL 3]
, EN 45545-3: E30
Temperature range
-40...+135°C
