Pflitsch blueglobe Ex eb / Ex tb - stainless steel cable gland
- blueglobe Ex eb / Ex tb are stainless ATEX cable glands with TPE sealing by Pflitsch. Suitable for hazardous areas thread: M10-M85, protection degree: IP68 (up to15 bar).
blueglobe Ex eb / Ex tb Stainless steel
ATEX cable gland made of stainless steel with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M10 to M85, offers sealing up to IP66 (products with *), IP68 (up to 15 bar), and includes a sealing insert made of TPE.
Features of blueglobe Ex eb / Ex tb stainless steel cable glands:
- Made of stainless steel AISI 303 or AISI 316Ti
- Metric connection thread according to EN 60423
- Integrated silicone O-ring
- Protection rating IP66 / IP68 (up to 15 bar)
- Certified for Ex eb / Ex tb explosion protection zones
- Operating temperature range: -20°C to +60°C
- Optional version with inlet for enhanced sealing
Applications
- Installations in explosive atmospheres (ATEX)
- Chemical and petrochemical industry
- Automation systems in Ex zones
- Offshore infrastructure and marine power installations
- Switchgear systems in mining and power distribution
blueglobe Ex eb / Ex tb stainless steel AISI 303

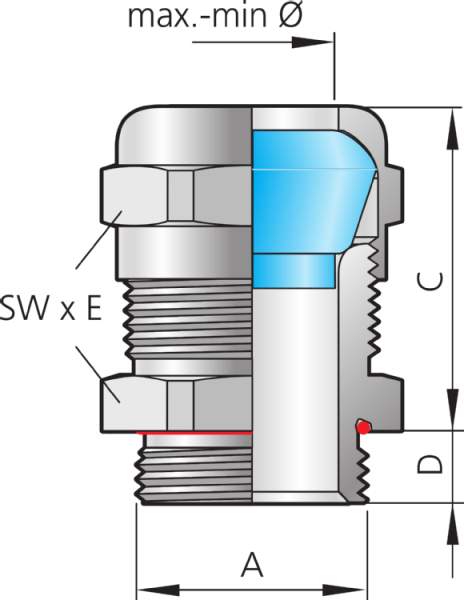

| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Sealing range with inlet max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|
| bg 210VAex* | M10x1,0 | 6,0 | 6,0–2,5 | 6,0–3,0 | 3,0–2,5 | 20,0 | 13x14,2 | 50 |
| bg 212VAex | M12x1,5 | 5,0 | 8,0–3,0 | 8,0–5,0 | 5,0–3,0 | 21,0 | 17x18,9 | 50 |
| bg 216VAex | M16x1,5 | 6,0 | 11,0–5,0 | 11,0–7,0 | 7,0–5,0 | 25,0 | 20x22,2 | 50 |
| bg 220VAex | M20x1,5 | 6,5 | 14,0–6,0 | 14,0–9,0 | 9,0–6,0 | 29,5 | 24x26,5 | 50 |
| bg 225VAex | M25x1,5 | 7,5 | 20,0–12,0 | 20,0–16,0 | 16,0–12,0 | 30,0 | 30x33 | 50 |
| bg 232VAex | M32x1,5 | 8,0 | 25,0–17,0 | 25,0–20,0 | 20,0–17,0 | 32,0 | 36x39,5 | 25 |
| bg 240VAex | M40x1,5 | 8,0 | 32,0–21,0 | 32,0–26,0 | 26,0–21,0 | 35,0 | 45x48 | 10 |
| bg 250VAex | M50x1,5 | 10,0 | 42,0–32,0 | 42,0–35,0 | 35,0–32,0 | 39,0 | 57x60 | 5 |
| bg 263VAex | M63x1,5 | 10,0 | 54,0–42,0 | 54,0–46,0 | 46,0–42,0 | 40,0 | 68x72 | 5 |
| bg 275VAex | M75x1,5 | 15,0 | 65,0–55,0 | 65,0–58,0 | 58,0–55,0 | 47,0 | 81x87 | 5 |
| bg 285VAex | M85x2,0 | 15,0 | 77,0–66,0 | 77,0–70,0 | 70,0–66,0 | 49,0 | 95x102 | 1 |
| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Sealing range with inlet max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|
| bg 810VAex* | M10x1,0 | 15,0 | 6,0–2,5 | 6,0–3,0 | 3,0–2,5 | 20,0 | 13x14,2 | 50 |
| bg 812VAex | M12x1,5 | 15,0 | 8,0–3,0 | 8,0–5,0 | 5,0–3,0 | 21,0 | 17x18,9 | 50 |
| bg 816VAex | M16x1,5 | 15,0 | 11,0–5,0 | 11,0–7,0 | 7,0–5,0 | 25,0 | 20x22,2 | 50 |
| bg 820VAex | M20x1,5 | 15,0 | 14,0–6,0 | 14,0–9,0 | 9,0–6,0 | 29,5 | 24x26,5 | 50 |
| bg 825VAex | M25x1,5 | 15,0 | 20,0–12,0 | 20,0–16,0 | 16,0–12,0 | 30,0 | 30x33 | 50 |
| bg 832VAex | M32x1,5 | 15,0 | 25,0–17,0 | 25,0–20,0 | 20,0–17,0 | 32,0 | 36x39,5 | 25 |
| bg 840VAex | M40x1,5 | 15,0 | 32,0–21,0 | 32,0–26,0 | 26,0–21,0 | 35,0 | 45x48 | 10 |
| bg 850VAex | M50x1,5 | 15,0 | 42,0–32,0 | 42,0–35,0 | 35,0–32,0 | 39,0 | 57x60 | 5 |
| bg 863VAex | M63x1,5 | 15,0 | 54,0–42,0 | 54,0–46,0 | 46,0–42,0 | 40,0 | 68x72 | 5 |
blueglobe Ex eb / Ex tb stainless steel AISI 316Ti
| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Sealing range with inlet max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|
| bg 212V4Aex | M12x1,5 | 5,0 | 8,0–3,0 | 8,0–5,0 | 5,0–3,0 | 21,0 | 17x18,9 | 50 |
| bg 216V4Aex | M16x1,5 | 6,0 | 11,0–5,0 | 11,0–7,0 | 7,0–5,0 | 25,0 | 20x22,2 | 50 |
| bg 220V4Aex | M20x1,5 | 6,5 | 14,0–6,0 | 14,0–9,0 | 9,0–6,0 | 29,5 | 24x26,5 | 50 |
| bg 225V4Aex | M25x1,5 | 7,5 | 20,0–12,0 | 20,0–16,0 | 16,0–12,0 | 30,0 | 30x33 | 50 |
| bg 232V4Aex | M32x1,5 | 8,0 | 25,0–17,0 | 25,0–20,0 | 20,0–17,0 | 32,0 | 36x39,5 | 25 |
| bg 240V4Aex | M40x1,5 | 8,0 | 32,0–21,0 | 32,0–26,0 | 26,0–21,0 | 35,0 | 45x48 | 10 |
| bg 250V4Aex | M50x1,5 | 10,0 | 42,0–32,0 | 42,0–35,0 | 35,0–32,0 | 39,0 | 57x60 | 5 |
| bg 263V4Aex | M63x1,5 | 10,0 | 54,0–42,0 | 54,0–46,0 | 46,0–42,0 | 40,0 | 68x72 | 5 |
| bg 275V4Aex | M75x1,5 | 15,0 | 65,0–55,0 | 65,0–58,0 | 58,0–55,0 | 47,0 | 81x87 | 5 |
| bg 285V4Aex | M85x2,0 | 15,0 | 77,0–66,0 | 77,0–70,0 | 70,0–66,0 | 49,0 | 95x102 | 1 |
| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Sealing range without inlet max-min ø [mm] |
Sealing range with inlet max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|
| bg 812V4Aex | M12x1,5 | 15,0 | 8,0–3,0 | 8,0–5,0 | 5,0–3,0 | 21,0 | 17x18,9 | 50 |
| bg 816V4Aex | M16x1,5 | 15,0 | 11,0–5,0 | 11,0–7,0 | 7,0–5,0 | 25,0 | 20x22,2 | 50 |
| bg 820V4Aex | M20x1,5 | 15,0 | 14,0–6,0 | 14,0–9,0 | 9,0–6,0 | 29,5 | 24x26,5 | 50 |
| bg 825V4Aex | M25x1,5 | 15,0 | 20,0–12,0 | 20,0–16,0 | 16,0–12,0 | 30,0 | 30x33 | 50 |
| bg 832V4Aex | M32x1,5 | 15,0 | 25,0–17,0 | 25,0–20,0 | 20,0–17,0 | 32,0 | 36x39,5 | 25 |
| bg 840V4Aex | M40x1,5 | 15,0 | 32,0–21,0 | 32,0–26,0 | 26,0–21,0 | 35,0 | 45x48 | 10 |
| bg 850V4Aex | M50x1,5 | 15,0 | 42,0–32,0 | 42,0–35,0 | 35,0–32,0 | 39,0 | 57x60 | 5 |
| bg 863V4Aex | M63x1,5 | 15,0 | 54,0–42,0 | 54,0–46,0 | 46,0–42,0 | 40,0 | 68x72 | 5 |
To download
Producer
Product code
blueglobe Ex eb / Ex tb
Series
Material
Stainless Steel AISI 303
, Stainless Steel AISI 316Ti
Insert material
Thermoplastic elastomer - TPE
Thread
M10
, M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
, M75
, M85
Sealing range in millimeters
2,5-6 mm
, 3-8 mm
, 5-11 mm
, 6-14 mm
, 12-20 mm
, 17-25 mm
, 21-32 mm
, 32-42 mm
, 42-54 mm
, 55-65 mm
, 66-77 mm
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 10
, 15
Product height in millimetres
26
, 26.5
, 31
, 36
, 37.5
, 40
, 43
, 49
, 50
, 62
, 64
, 35
, 44.5
, 45
, 47
, 54
, 55
Product width in millimeters
14.2
, 18.9
, 22.2
, 26.5
, 33
, 39.5
, 48
, 60
, 72
, 87
, 102
Ingress Protection
IP66
, IP68
Application features
ATEX
Colour
Unpainted
Insert color
Blue
Temperature range
-20...+60°C
Certificate
EN 60423
, EN IEC 60079-0:2018
, EN 60079-7:2015 + A1:2018
, EN 60079-31:2014
, IECEx – IECEx PTB 10.0004X
, EAC – RU C-DE.AЖ58.B.01336/21
, CCC – 2021312313000348
, UKCA – CML 22UKEX3130X
