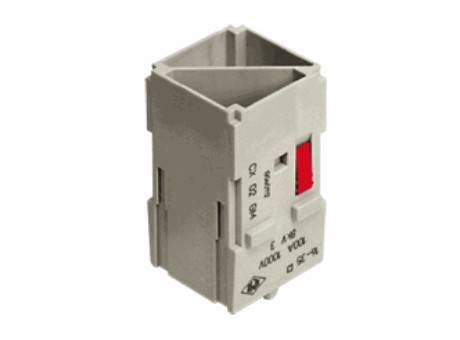

Ilme CX 02 GM - male module
- Ilme CX 02 GM is male modular insert from Mixo series. Product has 2 poles and IP20 degree of protection. Size: 2 modules. The insert can work with a current of 100A and 1000V.
Easy return of products within 14 days from the date of purchase without giving reasons
Ilme CX 02 GM
Male type CX 02 GM modular insert has two poles and 2 modules size. Product is a part of Mixo series developed by Ilme. Insert has IP20 degree of protection (IP65/IP66/IP68/IP69 with enclosure) and can operate with a current of 100A and 1000V and, in the temperature range from -40 to +125 degrees Celsius. RAL 7032 colour.
To download
Producer
Product code
CX 02 GM
Series
Certificate
DNV-GL
, cUL ECBT8
, UL ECBT2
, EN 61984:2009-06
, CQC
, EAC
, CSA
Number of cycles
500
Number of pins
2
Material
Polycarbonate - PC UL 94 V-0
Voltage
1000V
Gender
Male
Contact size / Cable diameter
8-2 AWG / 8.4 - 33.6 mm²
Temperature range
-40...+125°C
Termination method
Crimp termination
Electric current
100A
Signal
Electric
Compatible with
2 modules
