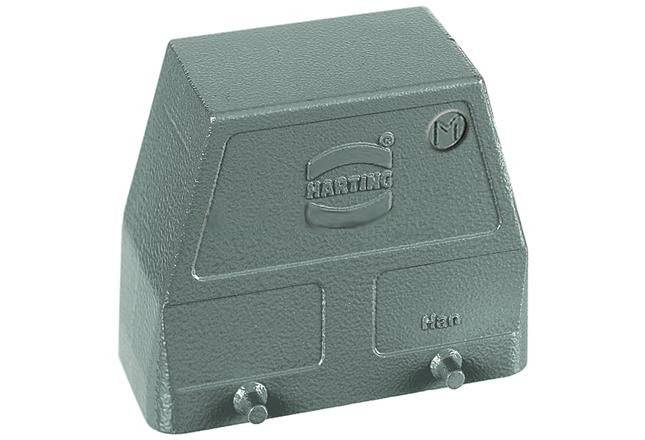

Harting 19 30 016 0527 - hood
- 19 30 016 0527 is a hood made of aluminum, size 16B. It has a side cable entry with M32 thread and four locking pegs. The product provides the degree of protection of IP65/IP66/IP67. It is characterized by a high construction (76 mm).
Harting 19 30 016 0527
Size 16B hood made of powder coated (RAL 7037 colour) die-cast aluminum. The product has a side cable entry with M32 thread and four pegs for easy connection with a double locking lever. The hood can operate in the temperature range of -40...+125°C and provides the IP65/IP66/IP67 degree of protection. Housing is characterized by a high construction (76 mm).
To download
Producer
Product code
19 30 016 0527
Series
Product length in millimeters
57
Locking lever
No lever
Compatible with
16 B / 77.27
Product width in millimeters
93.5
Product height in millimetres
76
Ingress Protection
IP65
, IP66
, IP67
Material
Aluminum
Number of cable glands
None
Thread
M32
Application features
Standard
Temperature range
-40...+125°C
Certificate
DNV-GL
, CE
, UL 1977 ECBT2.E235076
, CSA-C22.2 No. 182.3 ECBT8.E235076
Housing type
Kablowa
