Harting 09 30 016 0541 - hood
- 09 30 016 0541 is a size 16B hood. Made of aluminum, the product has a Pg 29 threaded side cable entry and two pegs suitable for a single lever locking system. Protection degree: IP65/IP66/IP67.
Easy return of products within 14 days from the date of purchase without giving reasons

Harting 09 30 016 0541 - hood
Harting 09 30 016 0541

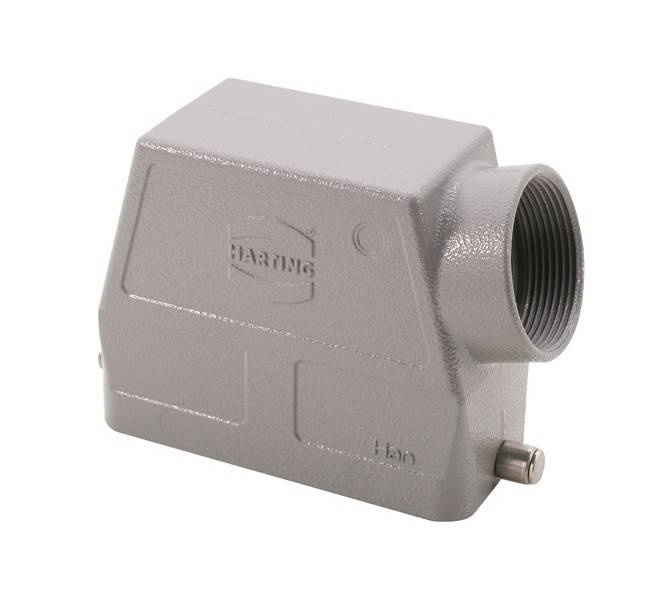

Characterized by a high construction (76 mm), hood in size 16B. The aluminum product has a side cable entry with Pg 29 thread and two pegs prepared for connection to the housing equipped with a single locking lever. The casing provides the IP65/IP66/IP67 degree of protection in accordance with IEC 60529 and can operate in the temperature range of -40...+125°C. The product is powder coated in RAL 7037 colour.
To download
Producer
Product code
09 30 016 0541
Series
Product length in millimeters
43 mm
Locking lever
No lever
Compatible with
16 B / 77.27
Width in millimeters
111.7 mm
Height in millimeters
76 mm
Ingress Protection
IP65
, IP66
, IP67
Material
Aluminum
Number of cable glands
None
Thread
PG 29
Special features
No data
Temperature range
-40...+125 degrees Celsius
Certificate
DNV-GL
, CE
, UL 1977 ECBT2.E235076
, CSA-C22.2 No. 182.3 ECBT8.E235076
