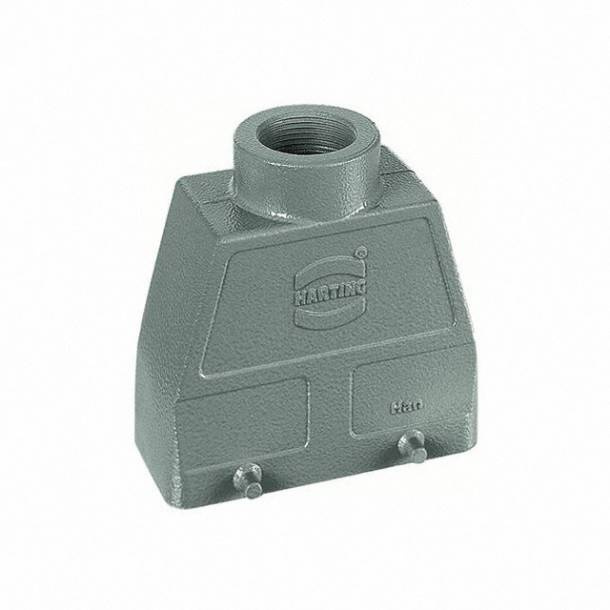

Harting 09 30 016 0420 - hood

  • 09 30 016 0420 is a size 16B hood. Made of aluminum, the product has a Pg 21 threaded top cable entry and four pegs suitable for a double lever locking system. Protection degree: IP65/IP66/IP67.
Harting 09 30 016 0420 - hood
Product length in millimeters: 57.2 mm
Compatible with: 16 B / 77.27
Width in millimeters: 93.5 mm
Height in millimeters: 92 mm
Ingress Protection: IP65, IP66, IP67
Material: Aluminum
Thread: PG 21
99,70 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons

Harting 09 30 016 0420

Characterized by a high construction (92 mm), hood in size 16B. The aluminum product has a top cable entry with Pg 21 thread and four pegs prepared for connection to the housing equipped with a double locking lever. The casing provides the IP65/IP66/IP67 degree of protection in accordance with IEC 60529 and can operate in the temperature range of -40...+125°C. The product is powder coated in RAL 7037 colour.

To download
Producer
Product code
09 30 016 0420
Series
Product length in millimeters
57.2 mm
Locking lever
No lever
Compatible with
16 B / 77.27
Width in millimeters
93.5 mm
Height in millimeters
92 mm
Ingress Protection
IP65
,
IP66
,
IP67
Material
Aluminum
Number of cable glands
None
Thread
PG 21
Special features
Brak
Temperature range
-40...+125 degrees Celsius
Certificate
DNV-GL
,
CE
,
UL 1977 ECBT2.E235076
,
CSA-C22.2 No. 182.3 ECBT8.E235076
