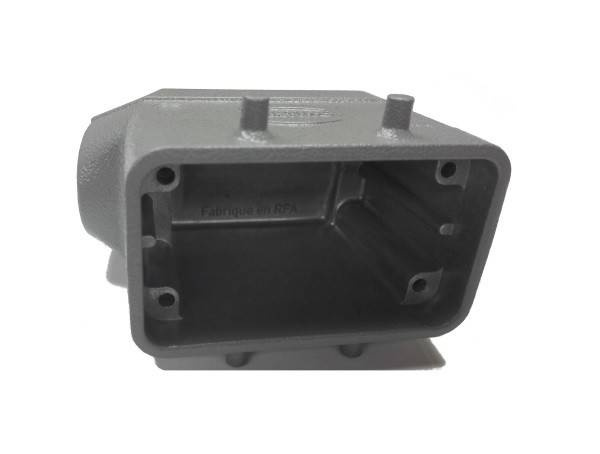

Harting 09 30 010 1521 - hood

  • 09 30 010 1521 is a hood made of aluminum, size 10B. It has a side cable entry with Pg16 thread and four locking pegs. The product provides the degree of protection of IP65/IP66/IP67. It is characterized by a low construction (57 mm).
Harting 09 30 010 1521 - hood
Harting 09 30 010 1521 - hood
Harting 09 30 010 1521 - hood
Harting 09 30 010 1521 - hood
Product length in millimeters: 57.2
Compatible with: 10 B / 57.27
Product width in millimeters: 72.6
Product height in millimetres: 57
Ingress Protection: IP65, IP66, IP67
Material: Aluminum
Thread: PG 16
9,95 €
/ pc. excl. VAT
12,24 € / pc. gross

Harting 09 30 010 1521

Size 10B hood made of powder coated (RAL 7037 colour) die-cast aluminum. The product has a side cable entry with Pg16 thread and four pegs for easy connection with a double locking lever. The hood can operate in the temperature range of -40...+125°C and provides the IP65/IP66/IP67 degree of protection. Housing is characterized by a high construction (57 mm).

To download
Producer
Product code
09 30 010 1521
Series
Product length in millimeters
57.2
Locking lever
No lever
Compatible with
10 B / 57.27
Product width in millimeters
72.6
Product height in millimetres
57
Ingress Protection
IP65
,
IP66
,
IP67
Material
Aluminum
Number of cable glands
None
Thread
PG 16
Application features
/
Temperature range
-40...+125°C
Certificate
DNV-GL
,
CE
,
UL 1977 ECBT2.E235076
,
CSA-C22.2 No. 182.3 ECBT8.E235076
Typ obudowy
Kablowa
