Harting 09 20 003 1252 - surface mounted housing
- 09 20 003 1252 is a 3A angled surface mounted housing. Made of zinc die-cast, it has one locking lever and an Pg11 thread. IP44 protection rating.

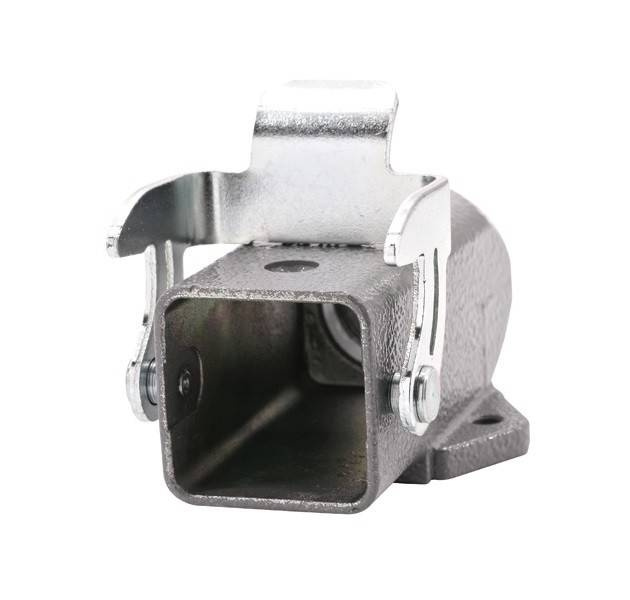

Harting 09 20 003 1252
Angled surface mounted housing with size 3A. Made of powder coated (RAL 7037 colour) zinc die-cast. It is equipped with a single locking lever (steel) and an Pg11 thread. It has a closed bottom. Provides IP44 protection (higher IP65/IP67 rating can be achieved by using sealing screws 09 20 000 9918) and can operate in the temperature range -40...+125°C.
To download
Producer
Product code
09 20 003 1252
Series
Product length in millimeters
40
Długość towaru w centymetrach
Locking lever
Galvanized steel / Zinc plated steel
, Single
Compatible with
3 A / 21.21
Product width in millimeters
50.6
Product height in millimetres
57.6
Ingress Protection
IP44
, IP65
, IP67
Material
Zinc
Number of cable glands
None
Thread
None
Application features
Standard
Temperature range
-40...+125°C
Certificate
DNV-GL
, CE
Housing type
Cokołowa
