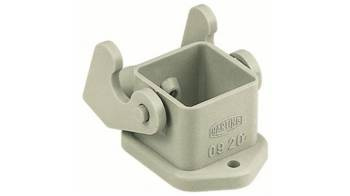

Harting 09 20 003 0320 - bulkhead mounted housing

  • 09 20 003 0320 is a straight bulkhead mounted housing made of polycarbonate, size 3A. Equipped with a single polyamide locking lever, it has an NBR seal. Provides IP44 protection class.
Harting 09 20 003 0320 - bulkhead mounted housing
Product length in millimeters: 35 mm
Compatible with: 3 A / 21.21
Products width in millimeters: 61 mm
Products height in millimeters: 23 mm
Ingress Protection: IP44
Thread: None
14,10 zł
/ pc. net
Easy return of products within 14 days from the date of purchase without giving reasons

Harting 09 20 003 0320

Straight polycarbonate housing, size 3A. It has a single polyamide locking lever and an NBR seal. It provides IP44 protection (and IP65/IP67 when using sealing screws: 09 20 000 9918) and can operate in the temperature range -40...+125°C. Both the housing body and the lever have V0 flammability class according to UL 94.

To download
Product code
09 20 003 0320
Product length in millimeters
35 mm
Locking lever
Polyamide - PA
Compatible with
3 A / 21.21
Products width in millimeters
61 mm
Products height in millimeters
23 mm
Ingress Protection
Polycarbonate - PC
Number of cable glands
Special features
No data
Temperature range
-40...+125 degrees Celsius
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
