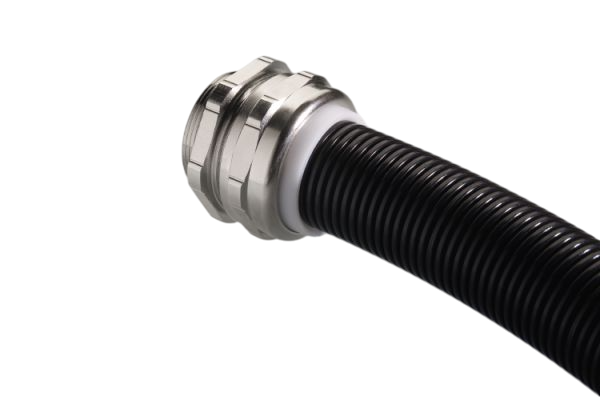

UNI Corrugated conduit cable gland
- Pflitsch cable glands for protective conduits from the UNI series with metric thread. Made of nickel-plated brass, available with TPE, TPE-V or silicone seals. IP68 protection rating up to 10 bar, operating temperature from -40°C to +110°C.
Pflitsch UNI Corrugated conduit cable gland
Pflitsch cable glands from the UNI series for corrugated conduit entries are designed for secure and sealed installation in industrial environments. The body is made of nickel-plated brass, ensuring durability and resistance to external conditions. Sealing is achieved using an internal clamping ring made of POM and sealing inserts made of TPE, TPE-V, or silicone – depending on the version. Metric thread compliant with EN 60423. Protection rating: IP68 up to 10 bar. Operating temperature range: -40°C to +110°C.
Features of UNI Corrugated Conduit Cable Glands:
- Nickel-plated brass housing
- Sealing with O-ring and POM clamping ring
- Sealing inserts made of TPE / TPE-V / silicone
- IP68 protection rating (up to 10 bar)
- Operating temperature range: -40°C to +110°C
- Metric thread compliant with EN 60423
- Compatible with WRLS / WRMS series
Applications:
- Installations in rail vehicles
- Transport and infrastructure systems
- Industrial applications requiring sealing and pressure resistance
- Corrugated conduit entries for outdoor applications
| Part No. | Thread A |
Thread length D [mm] |
Sealing range max./min. ø [mm] |
Mounting height C [mm] |
Spanner width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|
| 21651dW 0707 | M16x1.5 | 6.0 | 6.5–4.0 | 24.0 | 20x22.2 | 50 |
| 21652dW 0709 | M16x1.5 | 6.0 | 6.5–4.0 | 24.0 | 22x24.4 | 50 |
| 21652dW 0909 | M16x1.5 | 6.0 | 9.5–6.5 | 24.0 | 22x24.4 | 50 |
| 22052dW 0709 | M20x1.5 | 6.5 | 6.5–4.0 | 24.0 | 22x24.4 | 50 |
| 22053dW 0811 | M20x1.5 | 6.5 | 8.0–5.0 | 24.0 | 24x26.7 | 10 |
| 22052dW 0909 | M20x1.5 | 6.5 | 9.5–6.5 | 24.0 | 22x24.4 | 50 |
| 22053dW 1111 | M20x1.5 | 6.5 | 10.5–7.0 | 24.0 | 24x26.7 | 50 |
| 22054dW 1116 | M20x1.5 | 6.5 | 10.5–7.0 | 28.0 | 30x33.5 | 25 |
| 22054dW 1316 | M20x1.5 | 6.5 | 13.0–9.0 | 28.0 | 30x33.5 | 25 |
| 22553dW 0711 | M25x1.5 | 7.5 | 6.5–4.0 | 24.0 | 28x31.2/24x26.7 | 50 |
| 22553dW 0911 | M25x1.5 | 7.5 | 9.5–6.5 | 24.0 | 28x31.2/24x26.7 | 50 |
| 22553dW 1111 | M25x1.5 | 7.5 | 10.5–7.0 | 24.0 | 28x31.2/24x26.7 | 50 |
| 22554dW 1316 | M25x1.5 | 7.5 | 13.0–9.0 | 29.0 | 30x33.5 | 25 |
| 22554dW 1616 | M25x1.5 | 7.5 | 15.5–11.5 | 29.0 | 30x33.5 | 25 |
| 22554dW 1816 | M25x1.5 | 7.5 | 18.0–14.0 | 29.0 | 30x33.5 | 25 |
| 23254dW 1116 | M32x1.5 | 8.0 | 10.5–7.0 | 29.0 | 35x38.5/30x33.5 | 25 |
| 23254dW 1316 | M32x1.5 | 8.0 | 13.0–9.0 | 29.0 | 35x38.5/30x33.5 | 25 |
| 23254dW 1616 | M32x1.5 | 8.0 | 15.5–11.5 | 29.0 | 35x38.5/30x33.5 | 25 |
| 23255dW 1621 | M32x1.5 | 8.0 | 15.5–11.5 | 35.0 | 40x43.5 | 10 |
| 23254dW 1816 | M32x1.5 | 8.0 | 16.5–14.0 | 29.0 | 35x38.5/30x33.5 | 25 |
| 23255dW 1821 | M32x1.5 | 8.0 | 18.0–14.0 | 35.0 | 40x43.5 | 10 |
| 23255dW 2121 | M32x1.5 | 8.0 | 20.5–17.0 | 35.0 | 40x43.5 | 10 |
| 24055dW 1621 | M40x1.5 | 8.0 | 15.5–11.5 | 35.0 | 43x47.3/40x43.5 | 10 |
| 24055dW 1821 | M40x1.5 | 8.0 | 18.0–14.0 | 35.0 | 43x47.3/40x43.5 | 10 |
| 24055dW 2121 | M40x1.5 | 8.0 | 20.5–17.0 | 35.0 | 43x47.3/40x43.5 | 10 |
| 24056dW 2029 | M40x1.5 | 9.0 | 20.5–17.0 | 35.0 | 50x54 | 10 |
| 24056dW 2529 | M40x1.5 | 9.0 | 25.0–20.0 | 35.0 | 50x54 | 10 |
| 24056dW 2829 | M40x1.5 | 9.0 | 28.0–24.0 | 35.0 | 50x54 | 10 |
To download
Producer
Product code
UNI Corrugated Conduit Cable Gland
Series
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
, TPE-V
, Silicone HT
Thread
M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
4-6.5 mm
, 5-8 mm
, 6,5-9 mm
, 6.5-9.5 mm
, 7-10,5 mm
, 9-13 mm
, 11.5-15.5 mm
, 14-16,5 mm
, 14-18 mm
, 17-20.5 mm
, 20-25 mm
, 24-28 mm
Thread length in millimeters
6
, 6.5
, 7.5
, 8
, 9
Product height in millimetres
30
, 30.5
, 34.5
, 31,5
, 36.5
, 37
, 43
, 44
Product width in millimeters
22.2
, 24.4
, 26,7
, 33.5
, 43,5
, 54
Ingress Protection
IP68
Colour
Unpainted
Insert color
See colour code
, Unpainted
, Black
Temperature range
-40...+110°C
