Pflitsch LevelEx Ex db / Ex eb / Ex ta - stainless steel cable gland
- LevelEx Ex db / Ex eb / Ex ta - ATEX stainless steel AISI 316L cable gland with silicone sealing by Pflitsch. Suitable for hazardous areas thread: M16-M75, protection degree: IP66, IP68 (up to10 bar, 1h)
Pflitsch LevelEx Ex db / Ex eb / Ex ta
ATEX cable gland made of stainless steel AISI 316L with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M16 to M75, offers sealing up to IP66, IP68 (up to 10 bar, 1h) and includes a sealing insert made of silicone.
Features of LevelEx Ex db / Ex eb / Ex ta cable glands:
- Material options: nickel-plated brass or stainless steel AISI 316L
- Metric threads compliant with EN 60423 standard
- High Temperature silicone sealing (-60°C to +130°C range)
- IP66 and IP68 protection (10 bar for 1 hour)
- Full ATEX certification: Ex db, Ex eb, Ex ta
- Sealing range from 7.0 mm to 66.0 mm
- For installation in hazardous areas (zone 1, 2, 21, 22)
Applications:
- Oil & gas industry
- Industrial power systems
- Industrial automation in Ex zones
- Marine and shipbuilding systems
- Offshore installations
- Mining and extraction industry
- Wind and solar farms

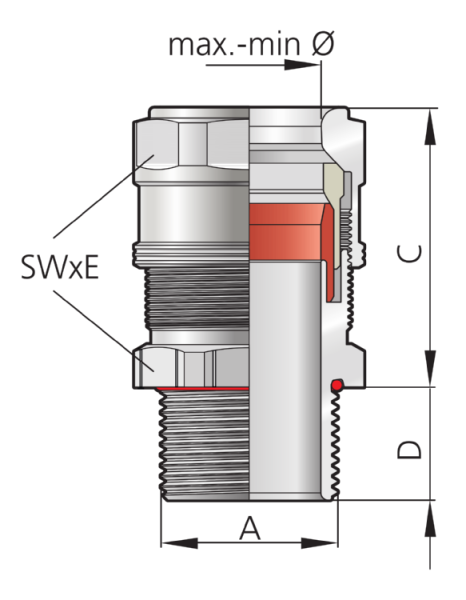

| Part No. | Gwint A | Długość gwintu D [mm] | Zakres dławienia max–min ø [mm] | Wysokość mocowania C [mm] | Szerokość klucza SW x E [mm] | Pakowanie |
|---|---|---|---|---|---|---|
| Lex 216VA/316L HTS | M16x1,5 | 16,0 | 11,0 – 7,0 | 32,0 | 20x22 | 10 |
| Lex 220VA/316L HTS | M20x1,5 | 16,0 | 14,0 – 8,0 | 37,0 | 24x26 | 10 |
| Lex 225VA/316L HTS | M25x1,5 | 16,0 | 20,0 – 12,5 | 40,0 | 30x32,5 | 10 |
| Lex 232VA/316L HTS | M32x1,5 | 16,0 | 26,0 – 18,5 | 43,0 | 36x39 | 10 |
| Lex 240VA/316L HTS | M40x1,5 | 16,0 | 34,0 – 26,0 | 46,5 | 46x50 | 5 |
| Lex 250VA/316L HTS | M50x1,5 | 16,0 | 45,0 – 33,0 | 51,0 | 60x64 | 5 |
| Lex 263VA/316L HTS | M63x1,5 | 19,0 | 56,0 – 44,0 | 55,0 | 70x74 | 1 |
| Lex 275VA/316L HTS | M75x1,5 | 19,0 | 66,0 – 54,0 | 58,0 | 81x87 | 1 |
To download
Producer
Product code
LevelEx Ex db / Ex eb / Ex ta
Series
Material
Stainless Steel AISI 316L
Insert material
Silicone
Thread
M16
, M20
, M25
, M32
, M40
, M50
, M63
, M75
Sealing range in millimeters
7-11 mm
, 8-14 mm
, 12.5-20 mm
, 18.5-26 mm
, 26-34 mm
, 33-45 mm
, 44-56 mm
, 54-66 mm
Thread length in millimeters
16
, 19
Product height in millimetres
48
, 53
, 56
, 59
, 62.5
, 67
, 74
, 77
Product width in millimeters
22
, 26
, 32.5
, 39
, 50
, 64
, 74
, 87
Ingress Protection
IP66
, IP68
Application features
ATEX
Colour
Unpainted
Insert color
Reddish-brown
Temperature range
-60...+130°C
Certificate
EN 60423
, EN 60529: IP 66
, EN IEC 60079-0:2018
, EN 60079-1:2014
, EN 60079-7:2015 + A1:2018
, EN IEC 60079-15:2019
, EN 60079-31:2014
, IECEx – IECEx PTB 18.0001X
, EAC – RU C-DE.AA71.B.00390
, VDE – 40048659
, DNV GL – TAC000036Y
, CCC – 2021312313000360
, Kosha – 19-AV4BO – 0379X
, UL – E510939 (LevelEx)
, UKCA – CML 22UKEX1506X
