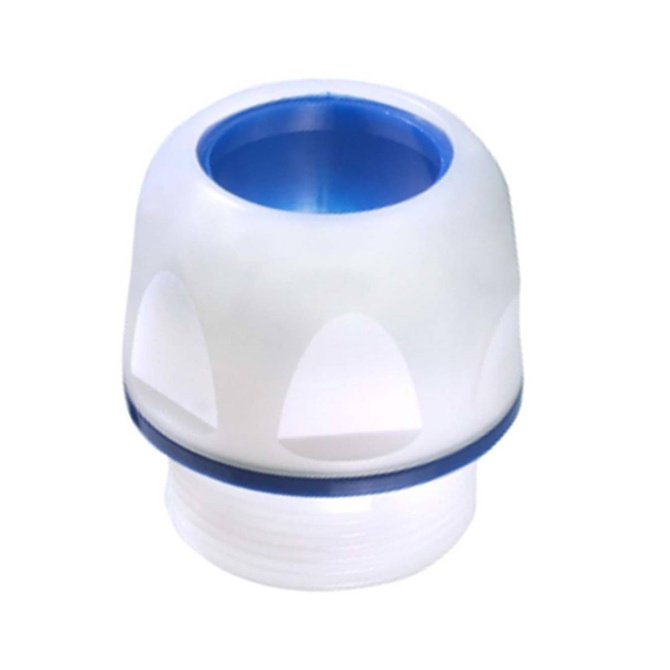

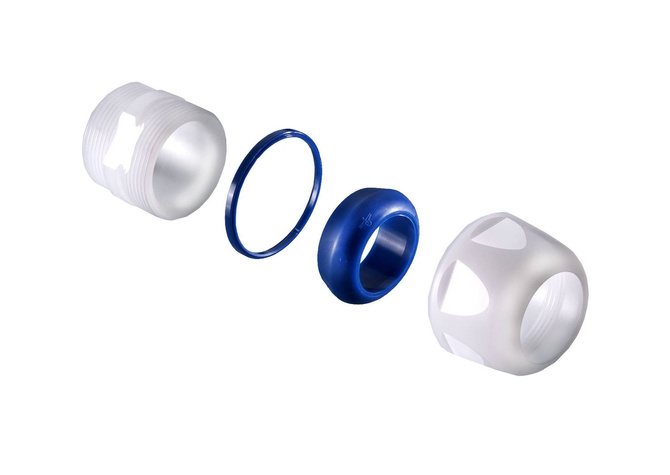

Polyamide cable gland from blueglobe CLEAN plus series by Pflitsch. Cable glands from this series feature high resistance to cleaning detergents as well as ease of cleaning itself, and high protection degrees IP68 (up to 15 bar), IP69. Blueglobe cable glands also offer balanced strain relief distribution on large surface (Soft Squeeze) and high resistance to vibrations. The product is equipped with a sealing inlet made from TPU. The component is easy to identify with metric thread. Operating temperatures from -20 to +85 degrees Celsius.
| Part No. | ThreadA | Thread LengthD [mm] | Sealing Rangemax–min ø [mm] | Mounting HeightC [mm] | Spanner WidthSW x E [mm] | Packing Unit |
|---|---|---|---|---|---|---|
| bg 216PA cp | M16x1.5 | 9.0 | 9.0 – 7.0 | 25.0 | 14/22x24.9 | 5 |
| bg 220PA cp | M20x1.5 | 9.0 | 12.0 – 10.0 | 30.0 | 18/26x28.9 | 5 |
| bg 225PA15 cp | M25x1.5 | 10.0 | 15.0 – 12.0 | 30.0 | 24/32x34.9 | 5 |
| bg 225PA cp | M25x1.5 | 10.0 | 18.0 – 15.0 | 30.0 | 24/32x34.9 | 5 |
| bg 232PA21 cp | M32x1.5 | 11.0 | 21.0 – 19.0 | 31.0 | 30/38x40.9 | 5 |
| bg 232PA cp | M32x1.5 | 11.0 | 23.0 – 21.0 | 31.0 | 30/38x40.9 | 5 |
Clean Plus cable glands from PFLITSCH are the answer to the growing hygiene requirements in the food, pharmaceutical and chemical industries. Thanks to their well-thought-out design without recesses, smooth surfaces and EHEDG and Ecolab certifications, these components ensure microbiological safety, ease of cleaning and durability in demanding conditions. Discover a solution that combines precision engineering with rigorous hygienic design standards.
