UNI corrugated conduit transit - cable gland for corrugated conduits

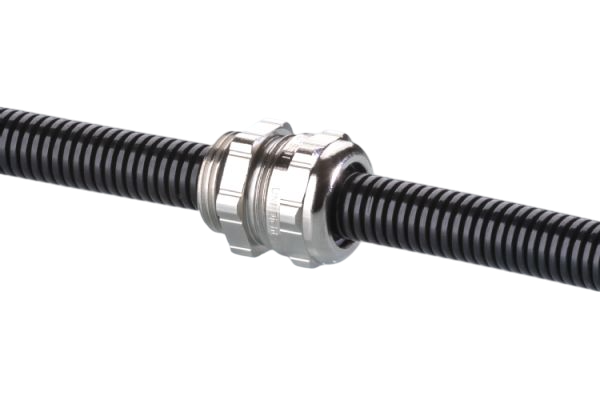

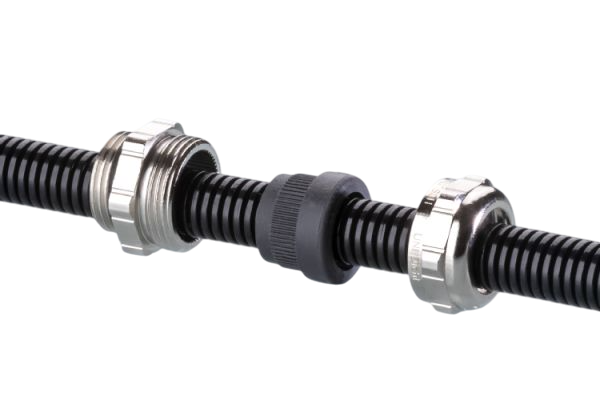

  • UNI corrugated conduit transit glands are made of nickel-plated brass with an O-ring seal made of HNBR. Sealing insert made of S55 silicone. IP68 protection rating up to 10 bar, operating temperature from -40°C to +150°C.
UNI corrugated conduit transit - cable gland for corrugated conduits
UNI corrugated conduit transit - cable gland for corrugated conduits
UNI corrugated conduit transit - cable gland for corrugated conduits
UNI corrugated conduit transit - cable gland for corrugated conduits
Insert material: S55
Ingress Protection: IP68
Temperature range: -40...+150°C
Ask about the product

Pflitsch UNI corrugated conduit transit

Glands designed for the transit routing of corrugated pipes in industrial installations. Nickel-plated brass housing with HNBR O-ring seal ensures high mechanical and environmental resistance. Sealing insert made of S55. The solution meets the requirements of EN 60423 and class HL3 according to EN 45545-2. IP68 protection rating up to 10 bar. Temperature range: -40°C to +150°C.


Features of UNI corrugated conduit transit glands:

  • Nickel-plated brass housing
  • S55 silicone sealing insert (high-temp.)
  • HNBR sealing O-ring
  • Metric thread in accordance with EN 60423
  • IP68 protection rating (up to 10 bar)
  • Operating temperature: from -40°C to +150°C
  • EN 45545-2 class: HL3
  • Fire resistance in accordance with EN 45545-3

Applications

  • Rail transport and railway infrastructure
  • Heavy industry and outdoor installations
  • Applications requiring fire resistance and high temperature resistance
  • Corrugated pipe bushings in systems with increased tightness


Pflitsch UNI corrugated conduit transit cable gland dimensions


Part No. Thread
A
Thread length
C [mm]
Mounting height
C [mm]
Nominal Width [mm] Spanner Width
SW x E [mm]
Profile Packing
22053dBigeschl 13WR10M20x1.56.5171024x26.7/24x26.7Fine50
22553dBigeschl 13WR10M25x1.57.5171028x31.2/24x26.7Fine50
22554dBigeschl 16WR12M25x1.57.5211230x33.5Fine50
23254dBigeschl 16WR12M32x1.58.0211235x38.5/30x33.5Fine25
24056dBigeschl 29WR23M40x1.58.022.52350x54/50x54Coarse10
25055dBigeschl 21WR17M50x1.510.022.51754x58/40x43.5Coarse10
25056dBigeschl 29WR23M50x1.510.022.52354x58/50x54Coarse5
25056dBigeschl 35WR29M50x1.510.0272954x58/50x54Coarse5
25057dBigeschl 43WR36M50x1.510.0283657x61/57x61Coarse5
263212dBigeschl 55WR48M63x1.510.341.54881x87/81x87Coarse5
To download
Producer
Product code
UNI Corrugated Conduit Transit
Series
Material
Nickel-plated Brass
Insert material
S55
Thread
M20
,
M25
,
M32
,
M50
,
M63
,
M40
Thread length in millimeters
6.5
,
7.5
,
10
,
10,3
,
8
Product height in millimetres
23,5
,
24.5
,
28.5
,
29
,
30.5
,
32.5
,
37
,
51,8
Product width in millimeters
26,7
,
33.5
,
43,5
,
54
,
61
,
87
Ingress Protection
IP68
Colour
Unpainted
Insert color
Black
Certificate
EN 60423
,
EN 45545-2 [HL 3]
Temperature range
-40...+150°C
