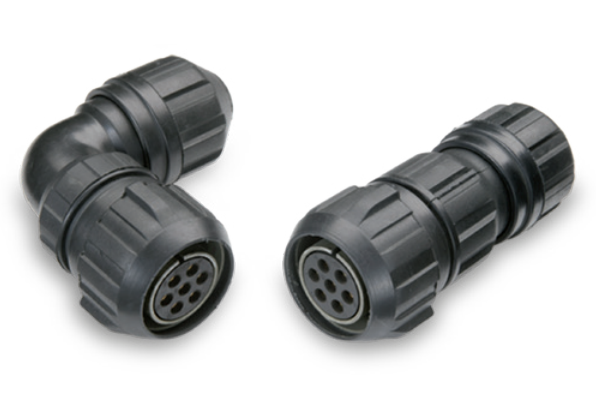

Radiall Van-System CVBS

Circular bayonet connectors that are very popular in railway applications. They are successfully used both in infrastructure (signalling, communications cabinet) and data transmission (security systems, control cabinets, engine monitoring, video transmission and many others). Series based on MIL-DTL-5015 and VG95234 specifications. The greatest advantage of the connectors is the bayonet mounting consisting of three ramps on the outside of the receptacle connector (the coupling point at the ends of the ramps is additionally protected by a stainless steel roller - this increases the number of switching cycles) and three stainless steel protrusions on the inside of the plug connector.

Series characteristics:

• Fast and reliable coupling (coupling-nut rotation of 120° only and mating is audible,
• Continuous and reliable service in the harshest use conditions,
• Vibration and impact resistance,
• IP68 waterproof protection (when connectors are mated and harnessed with the correct accessories),
• Manufactured in several shell versions as panel connectors (with front or rear mounting) or plug connectors (with straight backshell or 90°) and a wide range of insulators (with combination of different size contacts) from 1 to 201 poles,
• Accessories for all types of cables and shielding protection hoses are also available,
• Crimp contacts are suitable for wires of all sections.
