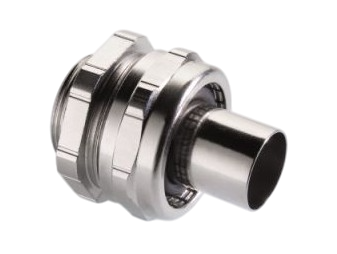

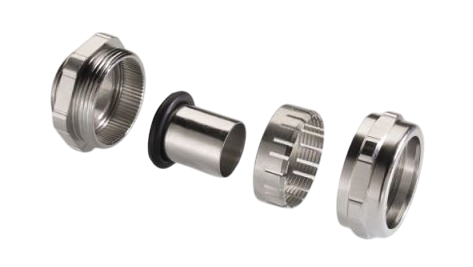

Pflitsch UNI SVD hose gland - cable gland for protective hoses
- Pflitsch cable gland from the UNI SVD series, with a nickel-plated brass body and HNBR O-ring seal. Sealing insert made of TPE-V, TPE or HT silicone. Protection rating IP68, operating temperature range: from -55°C to +200°C.
Pflitsch SVD hose gland
The Pflitsch SVD series gland is designed for use with protective hoses (e.g., GP type). The nickel-plated brass housing ensures durability and corrosion resistance, while the HNBR O-ring seal improves tightness and resistance to environmental factors. The product is designed for typical industrial applications and offers IP54 protection.
Features of SVD cable glands:
- Nickel-plated brass housing
- HNBR O-ring seal
- Designed for GP type hoses
- Metric thread
- Protection rating: IP54
Applications
- Machinery industry and general industrial applications
- Cable connections with flexible protective hoses
- Where maximum tightness (IP54) is not required

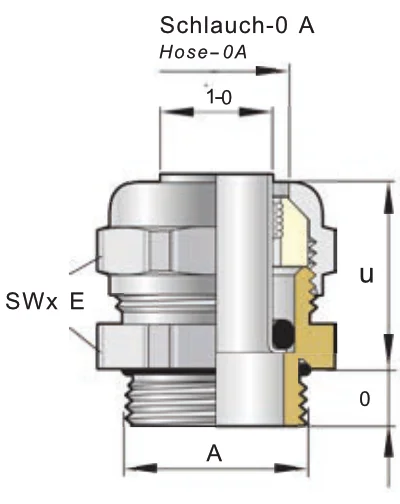

| Part No. | Thread A |
Thread length [mm] D |
Hose diameter [mm] max./min. ø |
Glanding range [mm] i-Ø |
Mounting height [mm] C |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|---|
| 621250 07 | M12x1.5 | 5.0 | 12.0–10.0 | 7.0 | 20.0 | 17x18.9 | 50 |
| 621651 08 | M16x1.5 | 6.0 | 15.0–13.0 | 8.0 | 21.0 | 20x22.2 | 50 |
| 621651 10 | M16x1.5 | 6.0 | 15.0–13.0 | 10.0 | 21.0 | 20x22.2 | 50 |
| 621652 11 | M16x1.5 | 6.0 | 17.0–14.0 | 11.0 | 21.0 | 22x24.4 | 50 |
| 622052 10 | M20x1.5 | 6.5 | 17.0–14.0 | 10.0 | 21.0 | 22x24.4 | 25 |
| 622052 13 | M20x1.5 | 6.5 | 17.0–14.0 | 13.0 | 21.0 | 22x24.4 | 50 |
| 622053 12 | M20x1.5 | 6.5 | 18.0–15.0 | 12.0 | 21.0 | 24x26.7 | 50 |
| 622053 13 | M20x1.5 | 6.5 | 18.0–15.0 | 13.0 | 21.0 | 24x26.7 | 50 |
| 622026 13 | M20x1.5 | 6.5 | 21.0–18.0 | 13.0 | 23.0 | 28x31 | 25 |
| 622054 14 | M20x1.5 | 6.5 | 23.0–19.0 | 14.0 | 23.0 | 30x33.5 | 25 |
| 622054 15 | M20x1.5 | 6.5 | 23.0–19.0 | 15.0 | 23.0 | 30x33.5 | 25 |
| 622054 16 | M20x1.5 | 6.5 | 23.0–19.0 | 16.0 | 21.0 | 30x33.5 | 25 |
| 622054 18 | M20x1.5 | 6.5 | 23.0–19.0 | 18.0 | 23.0 | 30x33.5 | 25 |
| 622554 16 | M25x1.5 | 7.5 | 23.0–19.0 | 16.0 | 24.0 | 30x33.5 | 25 |
| 622554 18 | M25x1.5 | 7.5 | 23.0–19.0 | 18.0 | 24.0 | 30x33.5 | 25 |
| 622555 25 | M25x1.5 | 7.5 | 32.0–28.0 | 25.5 | 26.0 | 35x38.5 | 25 |
| 623233 22 | M32x1.5 | 8.0 | 28.0–24.0 | 22.0 | 26.0 | 35x38.5 | 25 |
| 624056 30 | M40x1.5 | 9.0 | 40.0–34.0 | 30.0 | 27.0 | 50x54 | 10 |
| 625057 35 | M50x1.5 | 10.0 | 46.0–40.0 | 35.0 | 29.0 | 57x61 | 5 |
To download
Producer
Product code
SVD Hose Gland
Series
Material
Nickel-plated Brass
Insert material
Not included
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 9
, 10
Product height in millimetres
25
, 27
, 27.5
, 29.5
, 31,5
, 33.5
, 34
, 36
, 39
Product width in millimeters
18.9
, 22.2
, 24.4
, 26,7
, 31
, 33.5
, 38.5
, 54
, 61
Ingress Protection
IP54
