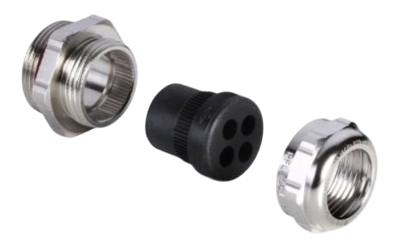

Pflitsch UNI Silicone Multiple cable gland

Multiple cable gland made of brass nickiel-plated/stainless steel AISI 303/polycarbonate/PVDF with an exceptionally wide clamping range. This product is available with threads from M16 to M40, offers sealing IP65, IP68 up to 10 bar (if cable ø = hole ø) and includes a sealing insert made of silicone HT.

Features of UNI Multiple cable glands:

  • Multi-hole version – multiple cables through a single gland
  • High-temperature silicone HT sealing insert
  • Body available in nickel-plated brass, stainless steel (VA), PC, and PVDF
  • Metric thread according to EN 60423
  • Protection class IP65 / IP68 up to 10 bar (with matched cable and hole diameters)
  • Cable strain relief up to class A, EN 62444
  • Operating temperature range from -55 °C to +200 °C (depending on version)

Applications

  • Control cabinets and electrical enclosures
  • Installations with many signal wires
  • Space-saving electrical designs
  • Industrial machinery and process automation
  • Safety and monitoring systems
  • Measurement and laboratory equipment


Part No. Thread A Number of holes Diameter of holes ø [mm] Packing
21650 im2x4HT M16x1,5 2 4,0 50
22052 im2x5HT M20x1,5 2 5,0 50
22052 im4x3HT M20x1,5 4 3,0 50
22052 im4x4HT M20x1,5 4 4,0 50
22052 im5x2HT M20x1,5 5 2,0 50
22553 im4x5HT M25x1,5 4 5,0 50
22553 im4x6HT M25x1,5 4 6,0 50
23254 im3x7HT M32x1,5 3 7,0 25
23254 im3x9HT M32x1,5 3 9,0 25
23254 im4x4HT M32x1,5 4 4,0 25
23254 im4x6HT M32x1,5 4 6,0 25
23254 im4x8HT M32x1,5 4 8,0 25
24055 im2x13HT M40x1,5 2 13,0 10
24055 im3x11HT M40x1,5 3 11,0 10
24055 im5x9HT M40x1,5 5 9,0 10
24055 im7x7HT M40x1,5 7 7,0 10
To download
Producer
Product code
UNI Silicone Multiple cable gland
Material
Nickel-plated Brass
,
Stainless Steel AISI 303
,
Polycarbonate
,
PVDF
Insert material
Silicone HT
Thread
M16
,
M20
,
M25
,
M32
,
M40
Ingress Protection
IP65
,
IP68
Colour
Unpainted
,
Grey
,
Transparent
Insert color
Black
Certificate
EN 60423
,
EN 62444
Temperature range
-55...+200°C
,
-20...+100°C
,
-40...+150°C
