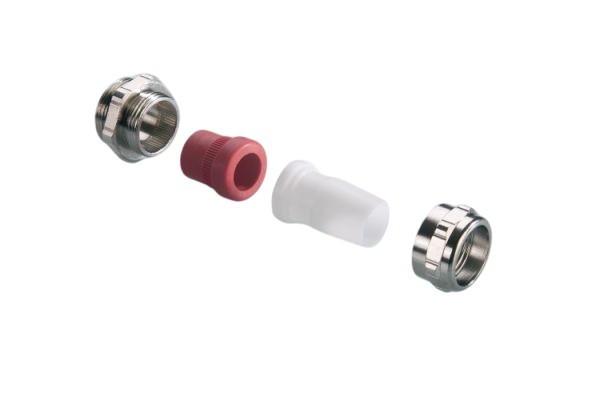

Pflitsch UNI S hose cable gland
- Pflitsch cable glands from the UNI S hose cable gland series, made of nickel-plated brass, with an HNBR O-ring. Sealing insert made of TPE, TPE-V or Silicone HT. Protection rating IP68. Metric thread. Operating temperature range from -40°C to +110°C.
UNI S hose cable gland
Pflitsch UNI S series cable glands are metric, universal cable glands designed for installation with S-type protective hoses. The body is made of nickel-plated brass and the HNBR O-ring seal guarantees excellent tightness and resistance to external factors. Depending on the version, a sealing insert made of TPE, TPE-V or high-temperature silicone (HT) is used. The product offers the highest protection class IP68 (up to 10 bar) and an operating temperature range from -40°C to +110°C. A special feature is the strong and permanent connection between the hose and the gland, achieved through shrink technology.
Features of UNI S hose glands:
- Nickel-plated brass housing
- HNBR O-ring seal
- Versions available with TPE, TPE-V or HT silicone sealing insert
- Designed for S-type protective hoses
- Non-detachable connection to the hose
- Metric thread
- Protection rating: IP68 up to 10 bar
- Temperature range: -40°C to +110°C
Applications
- Machinery industry, automation and robotics
- Cable connections requiring maximum tightness and protection against water and dust
- Installations in harsh environments or areas exposed to mechanical damage
| Part No. | Thread A |
Thread length D [mm] |
Hose diameter NW [mm] |
Sealing range max./min. ø [mm] |
Mounting height C [mm] |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|---|
| 21650dss09 07 | M16x1,5 | 6,0 | 09 | 6,5 - 4,0 | 46,0 | 18x20/17x18,9 | 50 |
| 21652dss11 08 | M16x1,5 | 6,0 | 11 | 8,0 - 5,0 | 47,0 | 22x24,4 | 50 |
| 22052dss11 09 | M20x1,5 | 6,5 | 11 | 9,0 - 6,5 | 47,0 | 22x24,4 | 50 |
| 22053dss13 10 | M20x1,5 | 6,5 | 13 | 10,0 - 7,0 | 47,0 | 24x26,7 | 50 |
| 22053dss16 13 | M20x1,5 | 6,5 | 16 | 13,0 - 9,0 | 47,0 | 24x26,7 | 50 |
| 22054dss16 14 | M20x1,5 | 6,5 | 16 | 14,0 - 11,5 | 52,0 | 30x33,5 | 25 |
| 22553dss13 10 | M25x1,5 | 7,5 | 13 | 10,0 - 7,0 | 47,0 | 28x31,2/24x26,7 | 50 |
| 22554dss16 14 | M25x1,5 | 7,5 | 16 | 14,0 - 11,5 | 52,0 | 30x33,5 | 25 |
| 22554dss21 16 | M25x1,5 | 7,5 | 21 | 15,5 - 11,5 | 52,0 | 30x33,5 | 25 |
| 22554dss21 18 | M32x1,5 | 8,0 | 21 | 18,0 - 14,0 | 58,0 | 40x43,5 | 25 |
| 23255dss21 18 | M32x1,5 | 8,0 | 21 | 18,0 - 14,0 | 58,0 | 40x43,5 | 10 |
| 23255dss29 20 | M32x1,5 | 8,0 | 29 | 20,5 - 17,0 | 58,0 | 40x43,5 | 10 |
| 23255dss29 25 | M32x1,5 | 8,0 | 29 | 25,0 - 20,0 | 58,0 | 40x43,5 | 10 |
| 24055dss29 20 | M40x1,5 | 8,0 | 29 | 20,5 - 17,0 | 55,0 | 43x47,3/40x43,5 | 10 |
| 24055dss29 25 | M40x1,5 | 8,0 | 29 | 25,0 - 20,0 | 55,0 | 43x47,3/40x43,5 | 10 |
| 25056dss29 25 | M50x1,5 | 10,0 | 29 | 25,0 - 20,0 | 61,0 | 54x58/50x54 | 5 |
To download
Producer
Product code
UNI S hose cable gland
Series
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
, TPE-V
, Silicone HT
Thread
M16
, M20
, M25
, M32
, M40
, M50
Sealing range in millimeters
4-6.5 mm
, 5-8 mm
, 6,5-9 mm
, 7-10 mm
, 9-13 mm
, 11,5-14 mm
, 11.5-15.5 mm
, 14-18 mm
, 17-20.5 mm
, 20-25 mm
Thread length in millimeters
6
, 6.5
, 7.5
, 8
, 10
Product height in millimetres
52
, 53
, 53.5
, 54.5
, 58.5
, 59.5
, 63
, 65,5
, 66
, 71
Product width in millimeters
18.9
, 24.4
, 26,7
, 33.5
, 43,5
, 54
Ingress Protection
IP68
Colour
Unpainted
Insert color
See colour code
, Unpainted
, Black
Temperature range
-40...+110°C
