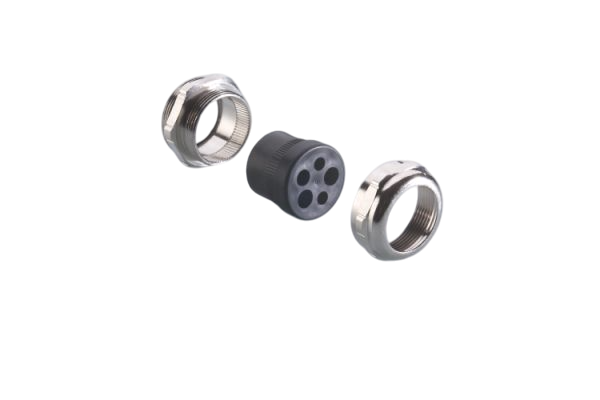

Pflitsch UNI Multiple fire protection - cable gland

  • Pflitsch UNI Multiple metal cable glands for fire protection requirements. Made of nickel-plated brass or stainless steel, with T80s sealing. IP65 or IP68 protection rating, metric thread. Operating temperature range: -40°C to +130°C.
Pflitsch UNI Multiple fire protection - cable gland
Pflitsch UNI Multiple fire protection - cable gland
Pflitsch UNI Multiple fire protection - cable gland
Pflitsch UNI Multiple fire protection - cable gland
Insert material: T80s
Ingress Protection: IP65, IP68
Application features: Fire-resistant
Temperature range: -40...+130°C
Ask about the product

Pflitsch UNI Multiple fire protection

Pflitsch cable glands from the UNI Multiple series are designed for installations with high fire protection requirements. Available in two material versions – nickel-plated brass or AISI 303 stainless steel – they are equipped with a T80s sealing insert. They offer IP65 or IP68 protection (up to 10 bar if the cable diameter corresponds to the diameter of the insert opening) and meet the requirements of EN 45545-2 in class HL3. Metric thread in accordance with EN 60423. Operating temperature range: from -40°C to +130°C.


Features of UNI Multiple cable glands for fire protection:

  • Nickel-plated brass or AISI 303 stainless steel housing
  • T80s sealing insert
  • IP65 or IP68 protection rating (up to 10 bar)
  • HL3 hazard class according to EN 45545-2
  • Operating temperature range: from -40°C to +130°C
  • Metric thread in accordance with EN 60423

Applications

  • Installations in rail vehicles
  • Transport and infrastructure systems
  • Areas with high fire protection requirements
  • Applications requiring multiple cables to pass through a single gland

Part No. Holes
[n x ø]
Thread
A
Packaging
21650 Bm2x4M16x1,550
21652 Bm2x5M16x1,550
22051 Bm2x2,3M20x1,550
22051 Bm6x2,5M20x1,550
22052 Bm2x3M20x1,550
22052 Bm2x4M20x1,550
22052 Bm3x4M20x1,550
22052 Bm3x5M20x1,550
22052 Bm8x1,5M20x1,550
22052 Bm10x2M20x1,550
22053 Bm1x5/1x9M20x1,550
22053 Bm1x6/1x8M20x1,550
22053 Bm2x6,5M20x1,550
22053 Bm3x6M20x1,550
22553 Bm1x3/1x9M25x1,550
22553 Bm1x5M25x1,550
22553 Bm1x5/1x9M25x1,550
22553 Bm2x3,2/2x6M25x1,550
22553 Bm2x5M25x1,550
22553 Bm2x6M25x1,550
22553 Bm2x6/1x7M25x1,550
22553 Bm2x6/1x8M25x1,550
22554 Bm2x7M25x1,525
22554 Bm2x8M25x1,525
22554 Bm2x9M25x1,525
22554 Bm3x4M25x1,525
22554 Bm3x6M25x1,525
22554 Bm3x6,5M25x1,525
22554 Bm4x4M25x1,525
23254 Bm7x4M32x1,525
22554 Bm8x4M25x1,525
23254 Bm7x1/1x8,5M32x1,525
23254 Bm2x7M32x1,525
23254 Bm2x8M32x1,525
23254 Bm2x9M32x1,525
23254 Bm3x4M32x1,525
23254 Bm3x6M32x1,525
23254 Bm3x9M32x1,525
23254 Bm4x5M32x1,525
23254 Bm4x6M32x1,525
23254 Bm4x6,5M32x1,525
23254 Bm4x7M32x1,525
23254 Bm4x8M32x1,525
23254 Bm6x5,5M32x1,525
23254 Bm8x5,5M32x1,525
23255 Bm2x11M32x1,510
23255 Bm2x13M32x1,510
23255 Bm4x8M32x1,510
23255 Bm6x10M32x1,510
23255 Bm6x7,5M32x1,510
23255 Bm9x5M32x1,510
23255 Bm10x6M32x1,510
24055 Bm1x5,5/6x7M40x1,510
24055 Bm1x6/1x7,5/2x8,5M40x1,510
24055 Bm1x6/2x9M40x1,510
24055 Bm1x7/2x8,5M40x1,510
24055 Bm1x7/3x9M40x1,510
24055 Bm1x12/1x13M40x1,510
24055 Bm2x8/2x11,5M40x1,510
24055 Bm2x9M40x1,510
24055 Bm2x10M40x1,510
24055 Bm2x11M40x1,510
24055 Bm2x13M40x1,510
24055 Bm3x6/4x7M40x1,510
24055 Bm3x7M40x1,510
24055 Bm3x7/3x8M40x1,510
24055 Bm3x8/1x9,5M40x1,510
24055 Bm3x11M40x1,510
24055 Bm3x12M40x1,510
24055 Bm4x5,5M40x1,510
24055 Bm4x6,5M40x1,510
24055 Bm4x7/4x8M40x1,510
24055 Bm4x8M40x1,510
24055 Bm4x8/2x9M40x1,510
24055 Bm4x10M40x1,510
24055 Bm5x8,5M40x1,510
24055 Bm5x8M40x1,510
24055 Bm6x8M40x1,510
24055 Bm7x6/1x11M40x1,510
24055 Bm7x8M40x1,510
24055 Bm8x5,5M40x1,510
24055 Bm8x6M40x1,510
24055 Bm10x6M40x1,510
24055 Bm2x14M40x1,510
24055 Bm3x5/5x8,5M40x1,510
25056 Bm2x8/3x10M50x1,55
25056 Bm2x15M50x1,55
25056 Bm3x14,5M50x1,55
25056 Bm4x10,2M50x1,55
25056 Bm5x11,5M50x1,55
25056 Bm6x10M50x1,55
25056 Bm8x9M50x1,55
26358 Bm3x18M63x1,55
26358 Bm4x16M63x1,55
26358 Bm8x11M63x1,55
To download
Producer
Product code
UNI Multiple fire protection
Material
Nickel-plated Brass
,
Stainless Steel AISI 303
Insert material
T80s
Thread
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
Ingress Protection
IP65
,
IP68
Application features
Fire-resistant
Colour
Unpainted
Temperature range
-40...+130°C
Insert color
Black
Certificate
EN 60423
,
EN 45545-2 [HL 3]
