Pflitsch UNI hose cable gland - cable gland for protective hoses
- Pflitsch cable glands from the UNI hose cable gland series made of nickel-plated brass. Sealing insert made of TPE, TPE-V or HT silicone. IP68 protection rating. Metric thread. Operating temperature range up to +200°C (HT silicone).

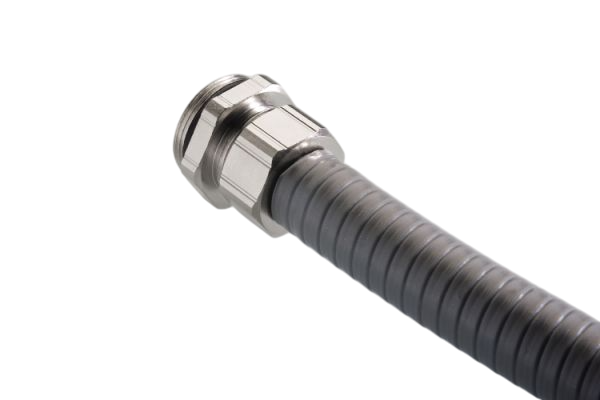

UNI hose cable gland
Pflitsch UNI series cable glands are metric, universal cable glands designed for use with P-type protective hoses. The body is made of nickel-plated brass as standard and equipped with an HNBR O-ring, which guarantees high tightness and resistance to external factors; polycarbonate versions are also available on request. Depending on the version, a sealing insert made of TPE is used, enabling operation at temperatures from -40°C to +130°C, TPE-V for the range from -40°C to +135°C, or high-temperature HT silicone, which extends the operating range from -55°C to +200°C. Regardless of the variant, the product provides the highest IP68 protection class (up to 10 bar with cable), making it a reliable solution for demanding industrial applications.

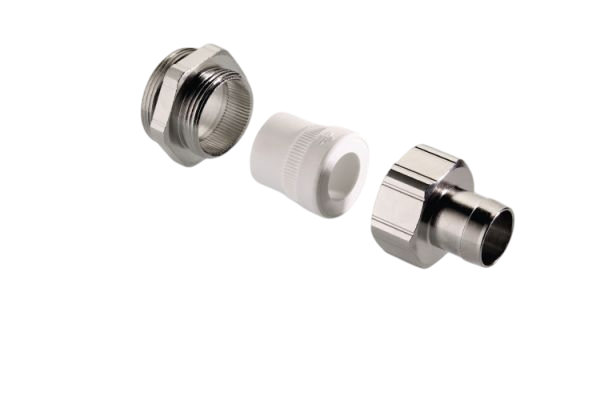

Features of UNI hose glands:
- Nickel-plated brass housing
- Can be made of polycarbonate (on request)
- HNBR O-ring seal
- Versions available with TPE, TPE-V or HT silicone sealing insert
- Designed for P-type protective hoses
- Metric thread
- Protection rating: IP68 up to 10 bar
- Wide operating temperature range: up to +200°C
Applications
- Machinery industry, automation and robotics
- Cable connections requiring maximum tightness and protection against water and dust
- Installations in harsh environments or areas exposed to mechanical damage
| Part No. | Thread | Thread length [mm] | Hose diameter [mm] | Clamping range [mm] | Mounting height C [mm] |
Wrench width SW x E [mm] |
Packaging |
|---|---|---|---|---|---|---|---|
| 21250sd09 | M12x1,5 | 5,0 | 09 | 6,5 - 4,0 | 39,0 | 17x18,9 | 50 |
| 21250sd11 | M12x1,5 | 5,0 | 11 | 6,5 - 4,0 | 39,0 | 17x18,9 | 50 |
| 21650sd09 | M16x1,5 | 6,0 | 09 | 6,5 - 4,0 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd11 | M16x1,5 | 6,0 | 11 | 6,5 - 4,0 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd11 | M16x1,5 | 6,0 | 11 | 8,0 - 5,0 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd11 | M16x1,5 | 6,0 | 11 | 9,5 - 6,5 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd13 | M16x1,5 | 6,0 | 13 | 6,5 - 4,0 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd13 | M16x1,5 | 6,0 | 13 | 8,0 - 5,0 | 38,0 | 18x20/17x18,9 | 50 |
| 21650sd13 | M16x1,5 | 6,0 | 13 | 9,5 - 6,5 | 38,0 | 18x20/17x18,9 | 50 |
| 21651sd11 | M16x1,5 | 6,0 | 11 | 9,5 - 6,5 | 40,0 | 20x22,2 | 50 |
| 21651sd13 | M16x1,5 | 6,0 | 13 | 10,5 - 7,0 | 40,0 | 20x22,2 | 50 |
| 22051sd09 | M20x1,5 | 6,5 | 09 | 6,5 - 4,0 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22051sd11 | M20x1,5 | 6,5 | 11 | 6,5 - 4,0 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22051sd11 | M20x1,5 | 6,5 | 11 | 9,5 - 6,5 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22051sd13 | M20x1,5 | 6,5 | 13 | 6,5 - 4,0 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22051sd13 | M20x1,5 | 6,5 | 13 | 9,5 - 6,5 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22051sd13 | M20x1,5 | 6,5 | 13 | 10,5 - 7,0 | 39,0 | 22x24,4/20x22,2 | 50 |
| 22052sd11 | M20x1,5 | 6,5 | 11 | 6,5 - 4,0 | 40,0 | 22x24,4 | 25 |
| 22052sd11 | M20x1,5 | 6,5 | 11 | 8,0 - 5,0 | 40,0 | 22x24,4 | 25 |
| 22052sd11 | M20x1,5 | 6,5 | 11 | 9,5 - 6,5 | 40,0 | 22x24,4 | 25 |
| 22052sd13 | M20x1,5 | 6,5 | 13 | 8,0 - 5,0 | 40,0 | 22x24,4 | 25 |
| 22052sd13 | M20x1,5 | 6,5 | 13 | 9,5 - 6,5 | 40,0 | 22x24,4 | 25 |
| 22052sd13 | M20x1,5 | 6,5 | 13 | 10,5 - 7,0 | 40,0 | 22x24,4 | 25 |
| 22052sd16 | M20x1,5 | 6,5 | 16 | 8,0 - 5,0 | 40,0 | 22x24,4 | 25 |
| 22052sd16 | M20x1,5 | 6,5 | 16 | 9,5 - 6,5 | 40,0 | 22x24,4 | 25 |
| 22052sd16 | M20x1,5 | 6,5 | 16 | 10,5 - 7,0 | 40,0 | 22x24,4 | 25 |
| 22052sd16 | M20x1,5 | 6,5 | 16 | 13,0 - 9,0 | 40,0 | 22x24,4 | 25 |
| 22053sd16 | M20x1,5 | 6,5 | 16 | 13,0 - 9,0 | 40,0 | 24x26,7 | 25 |
| 22053sd18 | M20x1,5 | 6,5 | 18 | 6,5 - 4,0 | 40,0 | 24x26,7 | 25 |
| 22053sd18 | M20x1,5 | 6,5 | 18 | 8,0 - 5,0 | 40,0 | 24x26,7 | 25 |
| 22053sd18 | M20x1,5 | 6,5 | 18 | 9,5 - 6,5 | 40,0 | 24x26,7 | 25 |
| 22053sd18 | M20x1,5 | 6,5 | 18 | 13,0 - 9,0 | 40,0 | 24x26,7 | 25 |
| 22054sd21 | M20x1,5 | 6,5 | 21 | 10,5 - 7,0 | 42,0 | 30x33,5 | 25 |
| 22054sd21 | M20x1,5 | 6,5 | 21 | 13,0 - 9,0 | 42,0 | 30x33,5 | 25 |
| 22054sd21 | M20x1,5 | 6,5 | 21 | 15,5 - 11,5 | 42,0 | 30x33,5 | 25 |
| 22553sd13 | M25x1,5 | 7,5 | 13 | 9,5 - 6,5 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd13 | M25x1,5 | 7,5 | 13 | 10,5 - 7,0 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd16 | M25x1,5 | 7,5 | 16 | 6,5 - 4,0 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd16 | M25x1,5 | 7,5 | 16 | 9,5 - 6,5 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd16 | M25x1,5 | 7,5 | 16 | 13,0 - 9,0 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd18 | M25x1,5 | 7,5 | 18 | 8,0 - 5,0 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd18 | M25x1,5 | 7,5 | 18 | 9,5 - 6,5 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22553sd18 | M25x1,5 | 7,5 | 18 | 13,0 - 9,0 | 40,0 | 28x31,2/24x26,7 | 25 |
| 22554sd18 | M25x1,5 | 7,5 | 18 | 15,5 - 11,5 | 44,0 | 30x33,5 | 25 |
| 22554sd21 | M25x1,5 | 7,5 | 21 | 10,5 - 7,0 | 44,0 | 30x33,5 | 25 |
| 22554sd21 | M25x1,5 | 7,5 | 21 | 15,5 - 11,5 | 44,0 | 30x33,5 | 25 |
| 22554sd21 | M25x1,5 | 7,5 | 21 | 18,0 - 14,0 | 44,0 | 30x33,5 | 25 |
| 22554sd21 | M25x1,5 | 7,5 | 21 | 20,5 - 17,0 | 44,0 | 30x33,5 | 25 |
| 22554sd24 | M25x1,5 | 7,5 | 24 | 18,0 - 14,0 | 44,0 | 30x33,5 | 25 |
| 22554sd24 | M25x1,5 | 7,5 | 24 | 20,5 - 17,0 | 44,0 | 30x33,5 | 25 |
| 23254sd18 | M32x1,5 | 8,0 | 18 | 10,5 - 7,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd18 | M32x1,5 | 8,0 | 18 | 13,0 - 9,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd21 | M32x1,5 | 8,0 | 21 | 13,0 - 9,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd21 | M32x1,5 | 8,0 | 21 | 15,5 - 11,5 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd21 | M32x1,5 | 8,0 | 21 | 18,0 - 14,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd24 | M32x1,5 | 8,0 | 24 | 18,0 - 14,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23254sd24 | M32x1,5 | 8,0 | 24 | 20,5 - 17,0 | 44,0 | 35x38,5/30x33,5 | 10 |
| 23255sd29 | M32x1,5 | 8,0 | 29 | 20,5 - 17,0 | 48,0 | 40x43,5 | 10 |
| 23255sd29 | M32x1,5 | 8,0 | 29 | 25,0 - 20,0 | 48,0 | 40x43,5 | 10 |
| 23255sd29 | M32x1,5 | 8,0 | 29 | 27,5 - 24,0 | 48,0 | 40x43,5 | 10 |
| 24055sd29 | M40x1,5 | 8,0 | 29 | 15,5 - 11,5 | 47,0 | 43x47,3/40x43,5 | 10 |
| 24055sd29 | M40x1,5 | 8,0 | 29 | 25,0 - 20,0 | 47,0 | 43x47,3/40x43,5 | 10 |
| 24055sd29 | M40x1,5 | 8,0 | 29 | 27,5 - 24,0 | 47,0 | 43x47,3/40x43,5 | 10 |
| 25056sd36 | M50x1,5 | 10,0 | 36 | 31,0 - 29,0 | 51,0 | 54x58/50x54 | 5 |
| 25056sd36 | M50x1,5 | 10,0 | 36 | 34,0 - 29,0 | 51,0 | 54x58/50x54 | 5 |
