Pflitsch UNI HF-UL Dicht - brass nickel-plated EMC cable gland with TPE sealing insert
- Pflitsch UNI HF-UL Dicht - brass nickel-plated EMC cable gland with TPE sealing insert is an EMC cable gland by Pflitsch. Effective against EMC radiation thread: M16-M40, protection degree: IP68 (up to10 bar at cable).
Pflitsch UNI HF-UL Dicht
EMC cable gland made of nickel-plated brass with an exceptionally wide clamping range. This product is available with threads from M16 to M40, offers sealing up to IP68 (up to 10 bar at cable), and includes a sealing insert made of TPE.
Features of UNI HF-UL Dicht cable glands:
- Electromagnetic compatibility (EMC) with robust shielding
- Nickel-plated brass construction for corrosion resistance
- Metric connection thread according to EN 60423 (M16 to M40)
- HNBR O-ring sealing for reliable performance
- IP68 protection rating up to 10 bar (at cable entry)
- Strain relief up to class A per EN 62444
- Operating temperature range: -40°C to +130°C
- Multiple variants (A/B) for different cable diameters
Applications
- Automation and control systems
- Data and signal transmission technology
- Industrial infrastructure requiring EMC protection
- Marine and offshore applications
- Shipbuilding and onboard installations
- Renewable energy systems (wind, wave)
- Telecommunications and base stations
- Railway signaling and control systems
- Medical equipment installations
- Military and aerospace electronics
- Process control systems in harsh environments
- Petrochemical and hazardous area installations

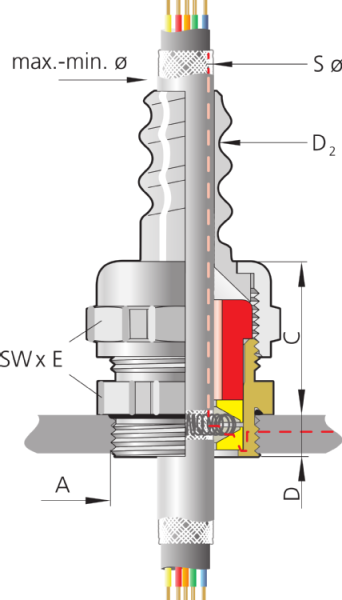

| Part No. | Thread A | Thread length D [mm] | NW | ø D2 [mm] | Sealing range max–min ø [mm] | Screening range max–min ø [mm] | Variant | Mounting height C [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|---|---|---|---|
| 2165006S00UL09 | M16x1,5 | 6,0 | 09 | 9 | 6,0–4,0 | 4,0–1,5 | A | 49,0 | 18x20 | 50 |
| 2165209S04UL11 | M16x1,5 | 6,0 | 11 | 12 | 9,5–6,5 | 8,5–3,5 | B | 55,0 | 22x24,4 | 50 |
| 2205311S04UL13 | M20x1,5 | 6,5 | 13 | 13 | 10,5–7,0 | 8,5–3,5 | A | 55,0 | 24x26,7 | 50 |
| 2205413S05UL16 | M20x1,5 | 6,5 | 16 | 18 | 13,0–9,0 | 10,5–6,5 | A | 59,0 | 30x33,5 | 25 |
| 2205413S07UL16 | M20x1,5 | 6,5 | 16 | 18 | 13,0–9,0 | 12,0–7,5 | A | 59,0 | 30x33,5 | 25 |
| 2255413S07UL16 | M25x1,5 | 6,5 | 16 | 18 | 13,0–9,0 | 12,0–7,5 | A | 59,0 | 30x33,5 | 25 |
| 2255416S08UL16 | M25x1,5 | 6,5 | 16 | 18 | 14,0–11,5 | 16,5–9,5 | B | 59,0 | 30x33,5 | 25 |
| 2325518S18UL21 | M32x1,5 | 7,0 | 21 | 26 | 18,0–14,0 | 18,0–13,0 | B | 68,0 | 40x43,5 | 10 |
| 2405625S11UL29 | M40x1,5 | 8,0 | 29 | 35 | 25,0–20,0 | 21,0–15,0 | A | 76,0 | 50x54 | 5 |
To download
Producer
Product code
UNI HF-UL Dicht
Series
Material
Nickel-plated Brass
Thread
M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
4-6 mm
, 6.5-9.5 mm
, 7-10,5 mm
, 9-13 mm
, 11,5-14 mm
, 14-18 mm
, 20-25 mm
Thread length in millimeters
6
, 6.5
, 7
, 8
Product height in millimetres
55
, 61
, 61,5
, 65,5
, 75
, 84
Product width in millimeters
20
, 24.4
, 26,7
, 33.5
, 43,5
, 54
Ingress Protection
IP68
Application features
EMC
Colour
Unpainted
Insert color
Black
, Blue
, Green
, Orange
, Red
, Yellow
Certificate
EN 60423
, EN 62444
Temperature range
-40...+130°C
Write your opinion
Ask about the product
