Material: Nickel-plated Brass
Insert material: Thermoplastic elastomer - TPE, TPE-V, Silicone HT
Ingress Protection: IP68
Application features: EMC
Temperature range: -40...+130°C, -40...+135°C, -55...+200°C
Ask about the product

Pflitsch UNI HF Dicht - Extended

EMC cable gland made of nickel-plated brass with an exceptionally wide clamping range. This product is available with threads from M12 to M40, offers sealing up to IP68 (10 bar), and includes a sealing insert made of TPE/TPE-V/silicone HT.


Features of UNI HF Dicht – Extended:

  • Electromagnetic compatibility (EMC) – effective 360° shielding
  • Extended version for optimized cable guidance
  • Two mounting methods: offset or continuous outer sheath (variants A and B)
  • Material: nickel-plated brass with HNBR O-ring
  • High pressure resistance – protection rating IP68 up to 10 bar
  • Strain relief according to EN 62444 – class A
  • Operating temperature range: -40 °C to +130 °C (TPE) / up to +135 °C (TPE-V) / up to +200 °C (Silicone HT)
  • UL certification only in combination with sealing inserts made of TPE-V
  • Stainless steel version and lead-free brass on request

Applications

  • Automation and control systems
  • Signal and data transmission technology
  • Industrial infrastructure requiring EMC
  • Railway, aviation, and transport technology
  • Industrial machinery exposed to high temperatures
  • Outdoor systems – resistant to water, dust, and pressure

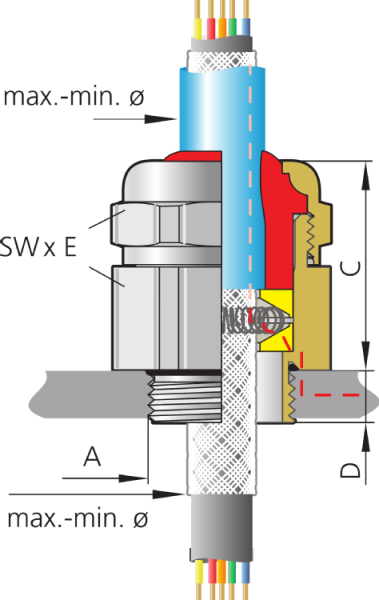

Part No. Thread

A		 Thread length

D

[mm]		 Sealing range

max-min ø

[mm]		 Seal. r. no inlet

max-min ø

[mm]		 Seal. r. with inlet

max-min ø

[mm]		 Mounting height

C

[mm]		 Spanner width

SW x E

[mm]		 Packing
2125007S01 M12x1,5 5,0 6,5 – 4,0 6,0 – 2,5 6,5 27,0 17x18,9 50
2125008S01 8,0 – 5,0 6,0 – 2,5 6,5 27,0 17x18,9 50
2125009S01 9,5 – 6,5 6,0 – 2,5 6,5 27,0 17x18,9 50
2165107S01 M16x1,5 6,0 6,5 – 4,0 6,0 – 2,5 6,5 27,0 20x22,2 50
2165109S03 9,5 – 6,5 8,5 – 3,5 8,5 28,0 20x22,2 50
2165111S03 10,5 – 7,0 8,5 – 3,5 8,5 28,0 20x22,2 50
2165211S05 10,5 – 7,0 10,0 – 6,5 10,5 29,0 22x24,4 50
2165213S05 13,0 – 9,0 10,5 – 6,5 10,5 29,0 22x24,4 50
2205313S05 M20x1,5 6,5 13,0 – 9,0 10,5 – 6,5 10,5 29,0 24x26,7 50
2205413S07 13,0 – 9,0 12,0 – 7,0 13,0 35,0 30x33,5 25
2255413S07 M25x1,5 6,5 13,0 – 9,0 12,0 – 7,0 12,0 35,0 30x33,5 25
2255413S08 13,0 – 9,0 12,5 – 8,0 13,0 35,0 30x33,5 25
2255416S08 15,5 – 11,5 13,5 – 8,0 13,0 35,0 30x33,5 25
2255416S09 15,5 – 11,5 14,5 – 9,5 15,5 35,0 30x33,5 25
2325518S10 M32x1,5 8,0 18,0 – 14,0 17,0 – 13,0 15,5 38,0 40x43,5 10
2325520S18 20,5 – 17,0 18,0 – 13,0 20,0 38,0 40x43,5 10
2325525S19 25,0 – 20,0 20,0 – 15,0 22,5 38,0 40x43,5 10
2405625S13 M40x1,5 8,0 25,0 – 20,0 24,5 – 18,5 25,0 39,0 50x54 10
2405628S13 28,0 – 24,0 25,5 – 18,5 25,5 39,0 50x54 10
2405628S15 28,0 – 24,0 27,5 – 24,0 28,0 39,0 50x54 10
2405632S15 32,0 – 27,0 30,5 – 24,0 30,5 39,0 50x54 10
2405634S15 34,0 – 29,0 30,5 – 24,0 30,5 39,0 50x54 10
To download
Producer
Pflitsch
Product code
UNI HF Dicht - Extended
Series
UNI Dicht
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
,
TPE-V
,
Silicone HT
Thread
M12
,
M16
,
M20
,
M25
,
M32
,
M40
Sealing range in millimeters
4-6.5 mm
,
5-8 mm
,
6.5-9.5 mm
,
7-10,5 mm
,
9-13 mm
,
11.5-15.5 mm
,
14-18 mm
,
17-20.5 mm
,
20-25 mm
,
24-28 mm
,
27-32 mm
,
29-34 mm
Thread length in millimeters
5
,
6
,
6.5
,
8
Product height in millimetres
32
,
33
,
34
,
35
,
35.5
,
41.5
,
46
,
47
Product width in millimeters
18.9
,
22.2
,
24.4
,
26,7
,
33.5
,
43,5
,
54
Ingress Protection
IP68
Application features
EMC
Colour
Unpainted
Insert color
Yellow
,
Gray
,
Black
,
Green
,
Red
,
White
,
Blue
,
Brown
,
Orange
,
Light yellow
,
Anthracite
,
Light blue
,
Natural
Certificate
EN 60423
,
DIN EN 62444
Temperature range
-40...+130°C
,
-40...+135°C
,
-55...+200°C
