Pflitsch UNI Flat cable gland – Rectangular - brass/stainless steel/polycarbonate/PVDF cable gland withTPE/ TPE-V sealing insert
- UNI Flat cable gland – Rectangular - brass nickel-plated/stainless steel AISI 303/polycarbonate/PVDF cable gland for with TPE/TPE-V sealing insert with oval hole by Pflitsch. thread: M16-M75, protection degree: IP65

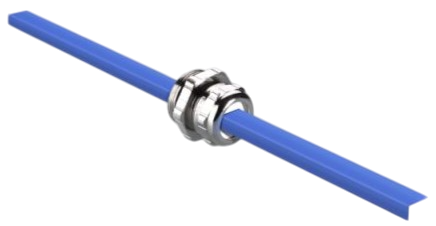

Pflitsch UNI Flat cable gland – Rectangular
Cable gland made of brass nickiel-plated/stainless steel AISI 303/polycarbonate/PVDF. This product is available with thread M25-M50, offers sealing IP43 and includes a sealing insert made of TPE/TPE-V.
Features of UNI Flat – Rectangular cable glands:
- Compact, flat design for space-constrained applications
- Available in nickel-plated brass, stainless steel, polycarbonate and PVDF
- Sealing inserts made of TPE or TPE-V
- Operating temperature range from -40 °C to +135 °C (depending on version)
- Available color options: white, natural, grey, black, blue
- IP43 protection rating
Applications
- Machines and production lines with limited installation space
- Automation and control systems
- Food and chemical industry (PVDF versions)
- Measuring and control equipment
- Installations using flat cables
- Cable management in rectangular housings

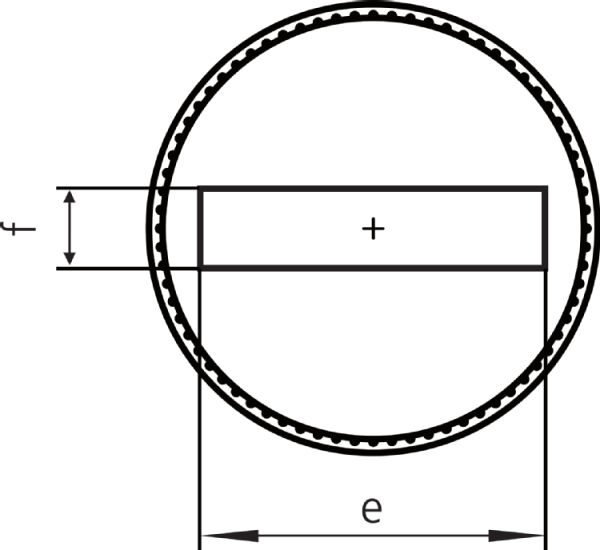

| Part No. | Thread A | Packing |
|---|---|---|
| 22553 f 8 e12 | M25x1,5 | 50 |
| 23254 f 4 e15 | M32x1,5 | 25 |
| 24055 f 6 e26 | M40x1,5 | 10 |
| 25057 f 6 e39 * ** | M50x1,5 | 5 |
To download
Producer
Product code
UNI Flat cable gland – Rectangular
Material
Nickel-plated Brass
, Stainless Steel AISI 303
, Polycarbonate
, PVDF
Insert material
Thermoplastic elastomer - TPE
, TPE-V
Thread
M25
, M32
, M40
, M50
Ingress Protection
IP43
Colour
Unpainted
, Grey
, Transparent
Insert color
White
, Natural
Temperature range
-40...+130°C
, -40...+135°C
, -20...+100°C
