Pflitsch UNI Flat cable gland – Oval

Cable gland made of brass nickiel-plated/stainless steel AISI 303/polycarbonate/PVDF. This product is available with thread M16-M75, offers sealing IP65 and includes a sealing insert made of TPE/TPE-V.

Features of UNI Flat Cable Glands – Oval:

  • Special design for oval and flat cables
  • Housing available in nickel-plated brass, stainless steel, PC, or PVDF
  • Sealing inserts made of TPE or TPE-V
  • Temperature range: -40 °C to +135 °C (depending on the variant)
  • Available in various material colors: grey, white, black, blue, transparent
  • Protection rating IP65
  • Also available with Pg connection thread

Applications

  • Automation and control systems
  • Signal and data transmission technology
  • Industrial infrastructure
  • Installations in limited space environments
  • Machinery with flat power or control cables
  • Control cabinets and switchgear

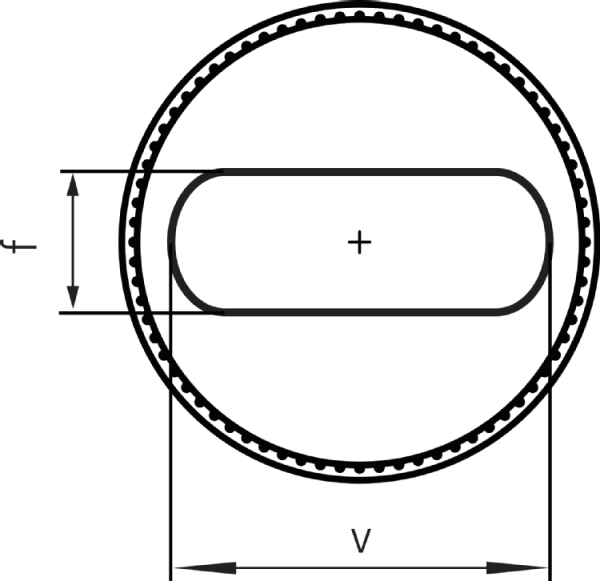

Part No. Thread A Packing
21049 f 1,2v 4/1mm * M10x1,0 50
21049 f 2 v 4/1mm * M10x1,0 50
21049 f 1,2v 4/1,5mm * M10x1,5 50
21049 f 2 v 4/1,5mm * M10x1,5 50
21249 f 1,2v 4 ** M12x1,5 50
21249 f 2 v 4 ** M12x1,5 50
22051 f 4,5v 7 M20x1,5 50
22052 f 2,5v10 *** M20x1,5 50
22052 f 5 v 8 *** M20x1,5 50
22052 f 5 v12 *** M20x1,5 50
22052 f 6 v 10 *** M20x1,5 50
22052 f 6 v 9,1 *** M20x1,5 50
22052 f 8 v10,5 *** M20x1,5 50
22553 f 5 v10 M25x1,5 50
22553 f 5 v12 M25x1,5 50
22553 f 5 v15 M25x1,5 50
22553 f 5,5v 8,5 M25x1,5 50
22553 f 6 v12,5 M25x1,5 50
22553 f 6 v14 M25x1,5 50
22553 f 6 v15 M25x1,5 50
22553 f 7 v14 M25x1,5 50
22553 f 8 v10,5 M25x1,5 50
22553 f 8 v14 M25x1,5 50
22553 f 9 v15 M25x1,5 50
23254 f 5 v16 M32x1,5 25
23254 f 7 v16,5 M32x1,5 25
23254 f 7 v18 M32x1,5 25
23254 f 7 v20 M32x1,5 25
24055 f10 v27 M40x1,5 10
24055 f 4 v23 M40x1,5 10
24055 f 8 v25 M40x1,5 10
24056 f11 v35 M40x1,5 10
25056 f11 v35 M50x1,5 5
25056 f13 v30,5 M50x1,5 5
25056 f 5,5v31 M50x1,5 5
25056 f 6,5v32 M50x1,5 5
25057 f 6 v41 * ** M50x1,5 5
25057 f 9 v38 * ** M50x1,5 5
26358 f 9 v43 ** M63x1,5 5
275212 f 9 v55 ** *** M75x1,5 1
To download
Producer
Product code
UNI Flat cable gland – Oval
Material
Nickel-plated Brass
,
Stainless Steel AISI 303
,
Polycarbonate
,
PVDF
Insert material
Thermoplastic elastomer - TPE
,
TPE-V
Thread
M10
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
,
M75
Ingress Protection
IP65
Colour
Unpainted
,
Grey
,
Transparent
Insert color
White
,
Natural
Temperature range
-40...+130°C
,
-40...+135°C
,
-20...+100°C
