Pflitsch UNI flange UFLG3 54u - splittable cable gland with 3 threaded holes
- UFLG3 54u is a UNI flange series plastic cable frame that can be equipped with three sealing inserts. Operating temperatures range from -20 to +80 degrees Celsius. Protection degree: IP66. Slit sealing inserts M25.

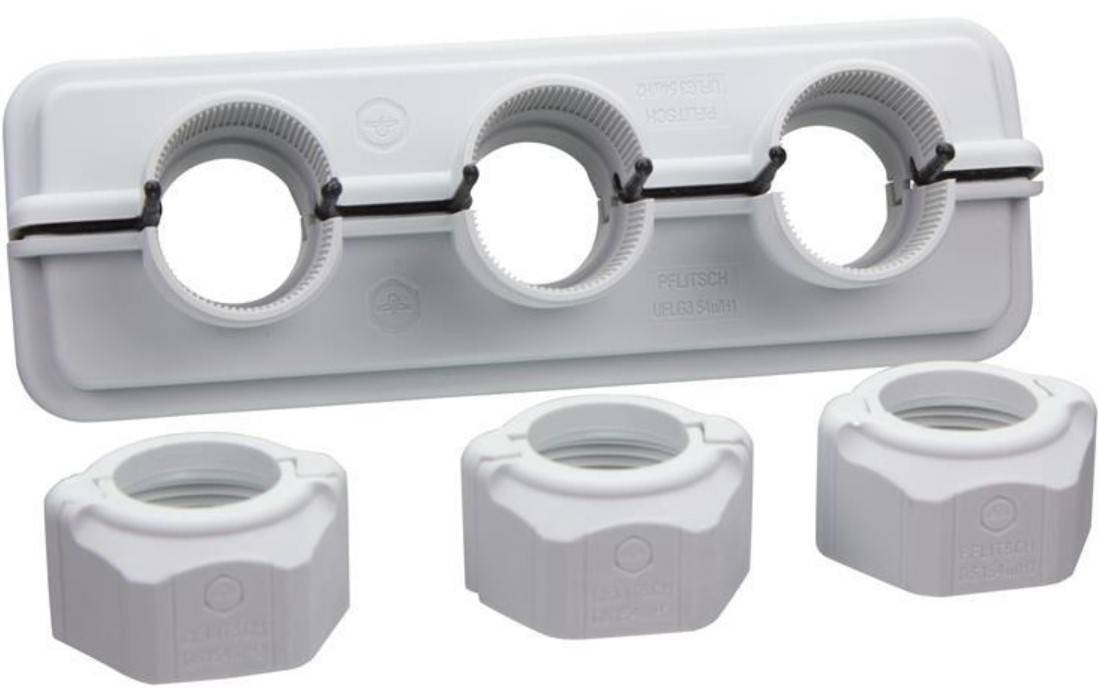

Pflitsch UNI flange UFLG3 54u
UFLG3 54u is a compact set of three M25 splittable cable glands in one plastic frame with threaded holes. Protection degree: IP 66. The splittable cable gland facilitates easy cable harness exchange during prototype building or servicing. The frame allows for the use of a wide selection of sealing inserts.
Variants with T80s insert, dedicated for railway applications, are available on demand. Please contact our sales departement.
CAUTION! The cable gland inserts are not included and must be ordered separetaly!
Features of the UNI flange frame with threaded holes:
- Made of PA 6.6 plastic
- The set consists of 10 frame halves and 30 clamping screws
- IP66 protection rating / Type 4X
- HL3 fire resistance according to EN 45545-2
- Tightness E20 according to EN 45545-3
- Operating temperature range: -20°C to +80°C
- Compact design suitable for 112 mm × 36 mm cut-outs
Applications
- Installations in rail vehicles
- Transport and infrastructure systems
- Applications requiring high tightness and fire resistance
- Installations with limited installation space
To download
Producer
Product code
UFLG3 54u
Series
Material
Polyamide
Insert material
Not included
Thread
3x M25
Sealing range in millimeters
Dependent on the insert
Product height in millimetres
51.6
Product width in millimeters
149.6
Ingress Protection
IP66
Application features
3in1
, Splittable cable gland
Certificate
EN 45545-2 [HL 3]
, EN 45545-3: E20
Colour
Grey
, Black
Temperature range
-20...+80°C
