Pflitsch UNI flange UFLD3 54 Zn - splittable cable gland
- UFLD3 54 Zn is a UNI flange series metal cable frame that can be equipped with three sealing inserts. Operating temperatures range from -20 to +80 degrees Celsius. Protection degree: IP66. Slit sealing inserts M25.
Pflitsch UNI flange HD UFLD3 54 Zn

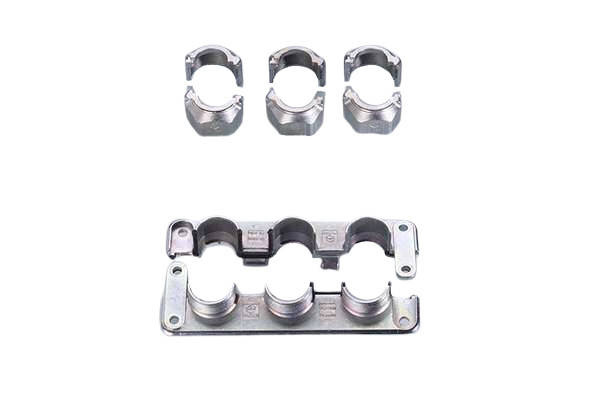

Compact set of 3 split cable glands M25 in one metal frame with through holes from the UNI flange HD series by Pflitsch. Provides IP66 protection and meets the requirements for fire resistance HL3 in accordance with EN 45545-2 and tightness E15 in accordance with EN 45545-3. Operating temperature range from -20°C to +80°C. Included: 10 frame halves with through holes, 30 clamping screws, 20 washers.
NOTE! Cable gland inserts must be ordered separately!
Features of the UNI flange HD frame with through holes:
- Made of die-cast zinc, galvanised
- The set consists of 10 frame halves, 30 clamping screws and 20 washers
- IP66 protection rating / Type 4
- Fire resistance HL3 according to EN 45545-2
- Tightness E15 according to EN 45545-3
- Operating temperature range: -20°C to +80°C
- Compact design suitable for 112 mm × 36 mm cut-outs
Applications
- Installations in rail vehicles
- Transport and infrastructure systems
- Applications requiring high tightness and fire resistance
- Installations with limited installation space
To download
Producer
Product code
UFLD3 54 Zn
Series
Material
Zinc
Insert material
Not included
Thread
3x M25
Sealing range in millimeters
Dependent on the insert
Product height in millimetres
50
Product width in millimeters
149
Ingress Protection
IP66
Application features
3in1
Colour
Unpainted
Temperature range
-20...+80°C
