Pflitsch UNI Ex Dicht Ex eb / Ex tb - cable gland with TPE sealing with holes
- UNI Ex Dicht Ex eb / Ex tb (with multiple sealing insert) - ATEX cable gland, made of brass/stainless steel with TPE sealing by Pflitsch. Suitable for hazardous areas thread: M12-M63, protection degree: IP66, IP68 (up to 10 bar).
Pflitsch UNI Ex Dicht Ex eb / Ex tb

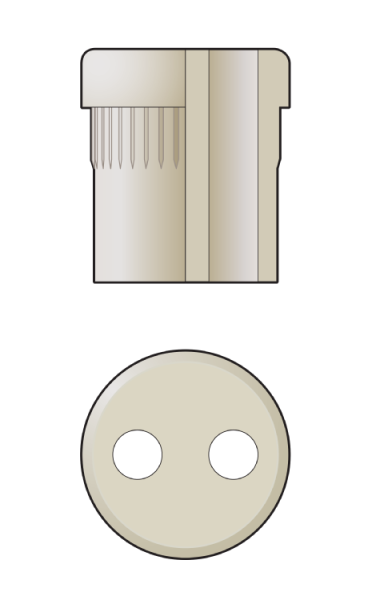

ATEX cable gland, made of nickel-plated brass/stainless steel AISI 303 with an exceptionally wide clamping range. Suitable for hazardous areas. This product is available with threads from M12 to M63, offers sealing up to IP66, IP68 (up to 10 bar), and includes a sealing insert made of TPE with multiple holes.
Features of UNI Ex Dicht Ex eb / Ex tb cable glands (with multiple sealing insert):
- Ex eb / Ex tb certified according to ATEX
- Available in nickel-plated brass and stainless steel AISI 303
- Metric connection thread according to EN 60423
- High protection level: IP66 / IP68 up to 10 bar (if cable ø equals hole ø)
- Operating temperature from -20°C to +60°C
- White sealing inserts made of TPE
- Connection thread with 15 mm length available on request
- Variants with multiple holes and custom diameters available
Applications
- Installations in explosion hazardous areas (Ex)
- Power and signaling systems
- Industrial automation technologies
- Chemical processing systems
- Petrochemical plant infrastructure
- Control cabinets in Ex zones
| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] |
Mounting heightC [mm] | Spanner width SW x E [mm] | Packing |
|---|---|---|---|---|---|---|
| 21249st7ex-12 | M12x1,5 | 5,0 | 6,5 – 5,0 | 20,0 | 14x15,5 | 50 |
| 21650st7ex-12 | M16x1,5 | 6,0 | 6,5 – 5,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st8ex-12 | M16x1,5 | 6,0 | 8,0 – 6,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st9ex-12 | M16x1,5 | 6,0 | 9,5 – 7,5 | 20,0 | 19x21/17x18,9 | 50 |
| 22051st7ex-12 | M20x1,5 | 6,0 | 6,5 – 5,0 | 20,0 | 22x24,4/20x22,2 | 50 |
| 22051st8ex-12 | M20x1,5 | 6,0 | 8,0 – 6,0 | 20,0 | 22x24,4/20x22,2 | 50 |
| 22052st7ex-12 | M20x1,5 | 6,5 | 6,5 – 5,0 | 20,0 | 22x24,4 | 50 |
| 22052st8ex-12 | M20x1,5 | 6,5 | 8,0 – 6,0 | 20,0 | 22x24,4 | 50 |
| 22052st9ex-12 | M20x1,5 | 6,5 | 9,5 – 7,5 | 20,0 | 22x24,4 | 50 |
| 22052st11ex-12 | M20x1,5 | 6,5 | 10,5 – 8,0 | 20,0 | 22x24,4 | 50 |
| 22052st13ex-12 | M20x1,5 | 6,5 | 13,0 – 10,0 | 20,0 | 22x24,4 | 50 |
| 22553st7ex-12 | M25x1,5 | 7,5 | 6,5 – 5,0 | 21,0 | 27x30,5/24x26,7 | 50 |
| 22553st8ex-12 | M25x1,5 | 7,5 | 8,0 – 6,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st9ex-12 | M25x1,5 | 7,5 | 9,5 – 7,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st11ex-12 | M25x1,5 | 7,5 | 10,5 – 8,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st13ex-12 | M25x1,5 | 7,5 | 13,0 – 10,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st16ex-12 | M25x1,5 | 7,5 | 15,5 – 12,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 23254st11ex-12 | M32x1,5 | 8,0 | 10,5 – 8,0 | 25,0 | 36x39,5/30x33,5 | 25 |
| 23254st13ex-12 | M32x1,5 | 8,0 | 13,0 – 10,0 | 25,0 | 36x39,5/30x33,5 | 25 |
| 23254st16ex-12 | M32x1,5 | 8,0 | 15,5 – 12,5 | 25,0 | 36x39,5/30x33,5 | 25 |
| 23254st18ex-12 | M32x1,5 | 8,0 | 18,0 – 15,0 | 25,0 | 36x39,5/30x33,5 | 25 |
| 23254st20ex-12 | M32x1,5 | 8,0 | 20,5 – 18,0 | 25,0 | 36x39,5/30x33,5 | 25 |
| 24055st16ex-12 | M40x1,5 | 8,0 | 15,5 – 12,5 | 25,0 | 46x51/41x45 | 10 |
| 24055st18ex-12 | M40x1,5 | 8,0 | 18,0 – 15,0 | 25,0 | 46x51/41x45 | 10 |
| 24055st20ex-12 | M40x1,5 | 8,0 | 20,5 – 18,0 | 25,0 | 46x51/41x45 | 10 |
| 24055st25ex-12 | M40x1,5 | 8,0 | 25,0 – 21,0 | 25,0 | 46x51/41x45 | 10 |
| 24055st28ex-12 | M40x1,5 | 8,0 | 28,0 – 25,0 | 25,0 | 46x51/41x45 | 10 |
| 25056st32ex-12 | M50x1,5 | 10,0 | 32,0 – 28,0 | 28,0 | 55x60,5/50x54 | 5 |
| 25056st34ex-12 | M50x1,5 | 10,0 | 34,0 – 30,0 | 28,0 | 55x60,5/50x54 | 5 |
| 25056st36ex-12 | M50x1,5 | 10,0 | 36,0 – 33,0 | 28,0 | 55x60,5/50x54 | 5 |
| 25057st40ex-12 | M50x1,5 | 10,0 | 40,0 – 37,0 | 30,0 | 60x65 | 5 |
| 26358st44ex-12 | M63x1,5 | 10,0 | 44,0 – 40,0 | 30,0 | 68x74/65x70 | 5 |
To download
Producer
Product code
UNI Ex Dicht Ex eb / Ex tb
Series
Material
Nickel-plated Brass
, Stainless Steel AISI 303
Insert material
Thermoplastic elastomer - TPE
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
, M63
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
, 10
Ingress Protection
IP66
, IP68
Application features
ATEX
Colour
Unpainted
Insert color
White
Temperature range
-20...+60°C
Certificate
EN 60423
, EN 60529
, EN 60079-0:2012 + A11:2013
, EN 60079-7:2015
, EN 60079-31:2014
, IECEx – IECEx PTB 14.0021X
, EAC – RU C-DE.AЖ58.B.01336/21
, CCC – 2021312313000359
