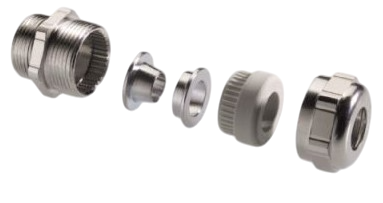

Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert

  • EMC cable gland from UNI Dicht EMC series by Pflitsch. Effective against EMC radiation, made from brass, with sealing insert made from TPE-V, thread: M16-M63, protection degree: IP 68.
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Pflitsch UNI EMC Dicht - brass nickel-plated EMC cable gland with TPE-V sealing insert
Material: Nickel-plated Brass
Insert material: TPE-V
Ingress Protection: IP68
Application features: EMC
Temperature range: -40...+135°C
Ask about the product

Pflitsch UNI EMC Dicht

EMC cable gland made of nickel-plated brass with an exceptionally wide clamping range. This product is available with threads from M16 to M63, offers sealing up to IP68 (10 bar), and includes a sealing insert made of TPE-V.


Features of UNI EMC Dicht cable glands:

  • Electromagnetic compatibility (EMC) – effective 360° shielding
  • Nickel-plated brass body with metric thread according to EN 60423
  • Integrated HNBR o-ring for sealing
  • Protection class IP68 up to 10 bar
  • Strain relief up to class A (EN 62444)
  • Operating temperature range: -40 °C to +135 °C
  • Sealing insert made of natural TPE-V
  • Available on request: connection thread 15 mm (up to M40) and in stainless steel

Applications

  • Industrial automation systems
  • Data and signal transmission
  • Control panels and distribution boxes
  • Machinery requiring EMC shielding
  • Marine and industrial installations
  • Measurement and control technology


Part No. Thread

A		 Thread length

D

[mm]		 Sealing range

max-min ø

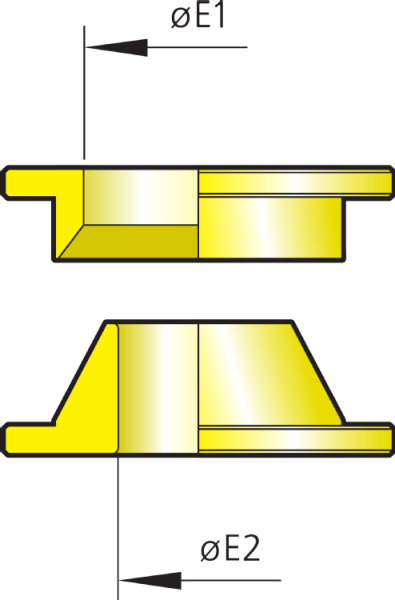

[mm]		 Shield ø E1

[mm]		 Passage E2

[mm]		 Pair of cones

 Mounting height

C

[mm]		 Spanner width

SW x E

[mm]		 Packing
216220700M16x1,5106,5–4,06,53,3EEA03124x26,750
216220901M16x1,5109,0–6,58,26,0EEA13124x26,750
216221102M16x1,51011,0–8,09,27,0EEA23124x26,750
220220700M20x1,5106,5–4,06,53,3EEA03124x26,750
220220901M20x1,5109,0–6,58,26,0EEA13124x26,750
220221102M20x1,51011,0–8,09,27,0EEA23124x26,750
225280903M25x1,5119,5–6,58,26,0EEA33230x33,525
225281104M25x1,51111,0–8,09,27,0EEA43230x33,525
225281205M25x1,51114,0–10,010,28,0EEA53230x33,525
225281406M25x1,51114,0–10,012,710,5EEA63230x33,525
225281607M25x1,51116,5–14,015,213,0EEA73230x33,525
225281808M25x1,51118,0–14,016,314,5EEA83230x33,525
225321809M25x1,51118,0–14,018,016,0EEA93435x38,525
225322010M25x1,51120,0–17,020,018,0EEA103435x38,525
232382311M32x1,51323,0–19,022,020,0EEA113940x43,510
232382312M32x1,51323,0–19,024,022,0EEA123940x43,510
232382611M32x1,51326,0–22,022,020,0EEA113940x43,510
232382613M32x1,51326,0–22,026,024,0EEA133940x43,510
240483014M40x1,51430,0–25,029,027,0EEA144550x545
240483215M40x1,51432,0–29,032,030,0EEA154550x545
240483515M40x1,51435,0–30,032,030,0EEA154550x545
250583716M50x1,51537,0–32,037,035,0EEA165060x655
250584117M50x1,51541,0–37,041,039,0EEA175060x655
263754518M63x1,51645,0–40,046,044,0EEA185881x871
263755119M63x1,51651,0–45,051,049,0EEA195881x871
263755619M63x1,51656,0–51,051,049,0EEA195881x871
To download
Producer
Pflitsch
Product code
UNI EMC Dicht
Series
UNI Dicht
Material
Nickel-plated Brass
Insert material
TPE-V
Thread
M16
,
M20
,
M25
,
M32
,
M40
,
M50
,
M63
Sealing range in millimeters
4-6.5 mm
,
6,5-9 mm
,
8-11 mm
,
10-14 mm
,
14-16,5 mm
,
14-18 mm
,
17-20 mm
,
19-23 mm
,
22-26 mm
,
25-30 mm
,
29-32 mm
,
30-35 mm
,
32-37 mm
,
37-41 mm
,
40-45 mm
,
45-51 mm
,
51-56 mm
Thread length in millimeters
10
,
11
,
13
,
14
,
15
,
16
Product height in millimetres
41
,
43
,
45
,
52
,
59
,
65
,
74
Product width in millimeters
26,7
,
33.5
,
38.5
,
43,5
,
54
,
65
,
87
Ingress Protection
IP68
Application features
EMC
Colour
Unpainted
Insert color
Natural
Certificate
EN 60423
,
DIN EN 62444
Temperature range
-40...+135°C
