Pflitsch UNI Dicht with closed sealing insert

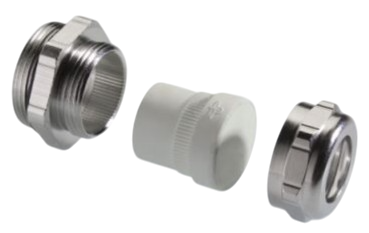

Cable gland made of brass nickiel-plated/stainless steel AISI 303/polycarbonate/PVDF with an exceptionally wide clamping range. This product is available with threads from M16 to M63, offers sealing IP68 (up to 10 bar) and includes a sealing insert made of TPE-V. Products with ** do not have polycarbonate and PVDF variants.
Features of UNI Dicht cable glands with closed sealing insert:
- Custom cable entry configurations enabled by closed sealing insert
- Available in nickel-plated brass, stainless steel, polycarbonate, and PVDF
- Metric thread according to EN 60423
- Protection rating IP68 up to 10 bar
- Wide operating temperature range: from -40 °C to +135 °C (depending on material)
Applications
- Automation and control systems
- Signal and data transmission technology
- Industrial infrastructure requiring IP68 protection
- Installations with custom cable routing requirements
- Equipment operating in harsh environments (PVDF)
- Electrical panels and enclosures

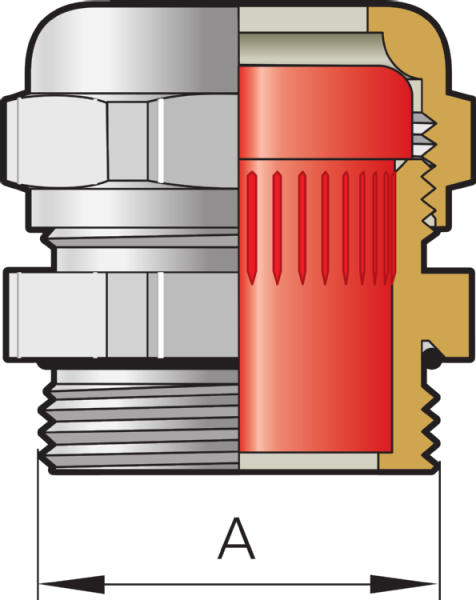

| Part No. | Thread A | Packing |
|---|---|---|
| 21650 pg | M16x1,5 | 50 |
| 22051 pg | M20x1,5 | 50 |
| 22052 pg * | M20x1,5 | 50 |
| 22553 pg | M25x1,5 | 50 |
| 22554 pg | M25x1,5 | 25 |
| 23254 pg | M32x1,5 | 25 |
| 23254 pg/21 ** | M32x1,5 | 25 |
| 24055 pg | M40x1,5 | 10 |
| 24056 pg *** | M40x1,5 | 10 |
| 25056 pg | M50x1,5 | 5 |
| 25057 pg *** **** | M50x1,5 | 5 |
| 26358 pg **** | M63x1,5 | 5 |
To download
Producer
Product code
UNI Dicht with closed sealing insert
Material
Nickel-plated Brass
, Stainless Steel AISI 303
, Polycarbonate
, PVDF
Insert material
TPE-V
Thread
M16
, M20
, M25
, M32
, M40
, M50
, M63
Ingress Protection
IP68
Colour
Unpainted
Insert color
Natural
Certificate
EN 60423
Temperature range
-40...+135°C
, -20...+100°C
