Pflitsch UNI Dicht Strain relief cable gland - polycarbonate cable gland with strain relief with TPE/TPE-V sealing
- UNI Dicht Strain relief cable gland - polycarbonate cable gland with strain relief with TPE/TPE-V sealing insert by Pflitsch. Thread: M12-M50, protection degree: IP54
Pflitsch UNI Dicht Strain relief cable gland
Cable gland made of polycarbonate with an exceptionally wide clamping range. This product is available with threads from M12 to M50, offers sealing IP54 and includes a sealing insert made of TPE/TPE-V.
Features of UNI Dicht Strain Relief Cable Glands:
- Integrated strain relief function – reliable cable pull-out protection
- Durable polycarbonate housing in grey (RAL 7035) or black (RAL 9005)
- Available with metric thread (EN 60423), optionally with Pg thread
- Protection rating: IP54
- Operating temperature range: -20 °C to +100 °C
- Flexible sealing insert made of TPE or TPE-V (natural colour)
Applications
- Industrial machinery
- Installations requiring mechanical cable protection
- Control panels and junction boxes
- Lighting and LED systems
- Public building installations
- HVAC systems and automation enclosures

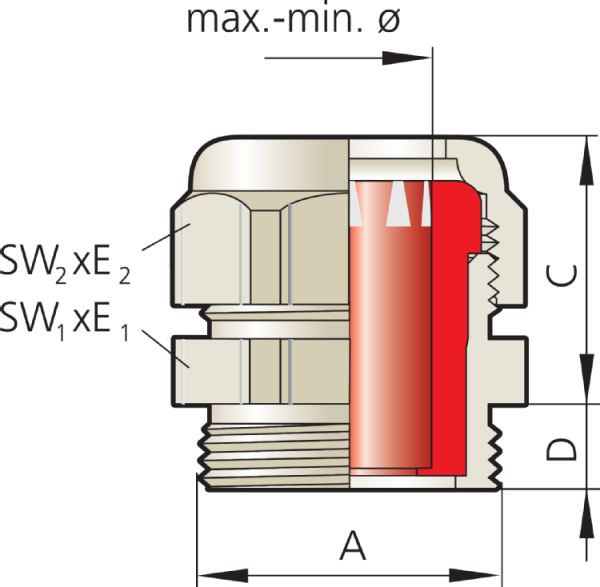

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21249PC z 7 | M12x1,5 | 8,0 | 6,5 – 4,0 | 22,0 | 15x16,5 | 50 |
| 21250PC z 9 * | M12x1,5 | 8,0 | 9,0 – 5,5 | 22,0 | 19x21,2 | 50 |
| 21650PC z 7 | M16x1,5 | 9,0 | 6,5 – 4,0 | 22,0 | 19x21,2 | 50 |
| 21650PC z 9 | M16x1,5 | 9,0 | 9,0 – 5,5 | 22,0 | 19x21,2 | 50 |
| 21651PC z11 * | M16x1,5 | 9,0 | 10,0 – 6,0 | 23,0 | 22x24,5 | 50 |
| 22052PC z 9 * | M20x1,5 | 9,0 | 9,0 – 5,5 | 23,0 | 24x26,5 | 50 |
| 22052PC z11 * | M20x1,5 | 9,0 | 10,0 – 6,0 | 23,0 | 24x26,5 | 50 |
| 22052PC z13 * | M20x1,5 | 9,0 | 12,0 – 8,0 | 23,0 | 24x26,5 | 50 |
| 22053PC z16 * | M20x1,5 | 9,0 | 15,0 – 12,0 | 24,0 | 27x29,5 | 50 |
| 22553PC z11 | M25x1,5 | 9,0 | 10,0 – 6,0 | 24,0 | 30x33/27x29,5 | 50 |
| 22553PC z13 | M25x1,5 | 9,0 | 12,0 – 8,0 | 24,0 | 30x33/27x29,5 | 50 |
| 22553PC z16 | M25x1,5 | 9,0 | 15,0 – 12,0 | 24,0 | 30x33/27x29,5 | 50 |
| 22554PC z18 * | M25x1,5 | 11,0 | 17,0 – 14,0 | 29,0 | 33x36,5 | 25 |
| 22554PC z20 * | M25x1,5 | 11,0 | 20,0 – 16,0 | 29,0 | 33x36,5 | 25 |
| 22555PC z25 * | M25x1,5 | 11,0 | 24,0 – 20,0 | 29,0 | 43x46 | 25 |
| 22555PC z28 * | M25x1,5 | 11,0 | 27,0 – 23,0 | 29,0 | 43x46 | 25 |
| 23254PC z13 | M32x1,5 | 11,0 | 12,0 – 8,0 | 29,0 | 36x39,5/33x36,5 | 25 |
| 23254PC z16 | M32x1,5 | 11,0 | 15,0 – 12,0 | 29,0 | 36x39,5/33x36,5 | 25 |
| 23254PC z18 | M32x1,5 | 11,0 | 17,0 – 14,0 | 29,0 | 36x39,5/33x36,5 | 25 |
| 23254PC z20 | M32x1,5 | 11,0 | 20,0 – 16,0 | 29,0 | 36x39,5/33x36,5 | 25 |
| 23255PC z25 * | M32x1,5 | 11,0 | 24,0 – 20,0 | 32,0 | 43x46 | 10 |
| 23255PC z28 * | M32x1,5 | 11,0 | 27,0 – 23,0 | 32,0 | 43x46 | 10 |
| 24055PC z20 | M40x1,5 | 11,5 | 20,0 – 16,0 | 33,0 | 46x50/43x46,5 | 10 |
| 24055PC z25 | M40x1,5 | 11,5 | 24,0 – 20,0 | 33,0 | 46x50/43x46,5 | 10 |
| 24055PC z28 | M40x1,5 | 11,5 | 27,0 – 23,0 | 33,0 | 46x50/43x46,5 | 10 |
| 24056PC z32 | M40x1,5 | 13,0 | 31,5 – 27,0 | 35,0 | 53x57 | 5 |
| 24056PC z36 | M40x1,5 | 13,0 | 36,0 – 32,0 | 35,0 | 53x57 | 5 |
| 25056PC z32 | M50x1,5 | 14,0 | 31,5 – 27,0 | 34,0 | 56x61/53x57 | 5 |
| 25056PC z36 | M50x1,5 | 14,0 | 36,0 – 32,0 | 34,0 | 56x61/53x57 | 5 |
To download
Producer
Product code
UNI Dicht Strain relief cable gland
Material
Polycarbonate
Insert material
Thermoplastic elastomer - TPE
, TPE-V
Thread
M12
, M16
, M20
, M25
, M32
, M40
, M50
Sealing range in millimeters
4-6.5 mm
, 5,5-9 mm
, 6-10 mm
, 8-12 mm
, 12-15 mm
, 14-17 mm
, 16-20 mm
, 20-24 mm
, 23-27 mm
, 27-31,5 mm
, 32-36 mm
Thread length in millimeters
8
, 9
, 11
, 11,5
, 13
, 14
Product height in millimetres
30
, 31
, 32
, 33
, 40
, 43
, 44.5
, 48
Product width in millimeters
16.5
, 21,2
, 26.5
, 29.5
, 36,5
, 46
, 46,5
, 57
Ingress Protection
IP54
Colour
RAL 7035 - Light grey
, RAL 9005 - Jet Black
Insert color
Blue
, Anthracite
, Black
, Brown
, Green
, Light yellow
, Natural
, Orange
, Pink
, Red
, White
, Yellow
Certificate
EN 60423
Temperature range
-20...+100°C
