Pflitsch UNI Dicht cable gland - stainless steel cable gland with TPE/TPE-V/silicone HT sealing
- UNI Dicht cable gland - stainless steel cable gland with TPE/TPE-V/silicone HT sealing insert by Pflitsch. thread: M10-M63, protection degree: IP68 (up to10 bar)
Pflitsch UNI Dicht cable gland

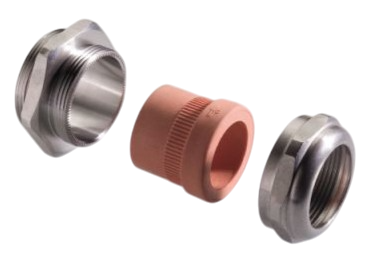

Cable gland made of AISI 303 stainless steel with an exceptionally wide clamping range. This product is available with threads from M10 to M63, offers sealing IP68 (up to 10 bar) and includes a sealing insert made of TPE/TPE-V/silicone HT.
Features of UNI Dicht cable glands:
- Made of stainless steel AISI 303
- Metric connection thread according to EN 60423
- Integrated silicone o-ring for sealing
- Protection rating IP68 (up to 10 bar) and type 4X
- Cable strain relief compliant with class A, EN 62444
- Available with TPE, TPE-V or silicone HT sealing inserts
- Wide operating temperature range: from -55 °C to +200 °C (depending on sealing material)
Applications
- Control cabinets and distribution boxes
- Machinery and production lines
- HVAC and refrigeration systems
- Process and chemical industries
- Outdoor and high-humidity installations
- Food industry (due to stainless steel body)

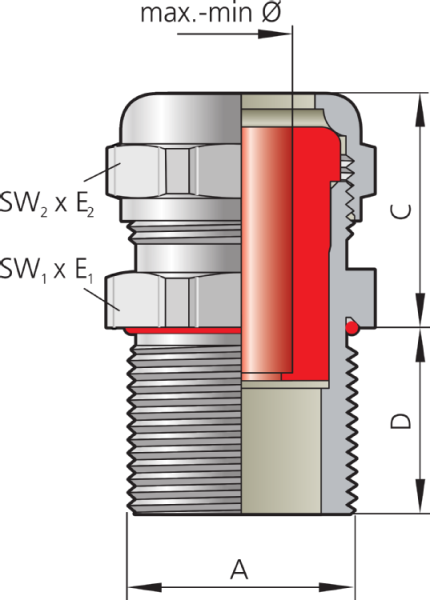

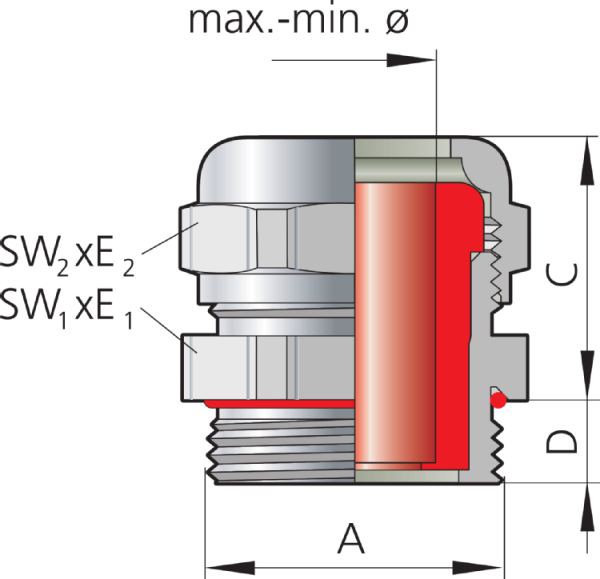

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21049st7/1mm * | M10x1,0 | 5,0 | 6,5 – 4,0 | 19,0 | 14x15,5 | 50 |
| 21049st7/1,5mm * | M10x1,5 | 5,0 | 6,5 – 4,0 | 19,0 | 14x15,5 | 50 |
| 21249st7 * | M12x1,5 | 5,0 | 6,5 – 4,0 | 19,0 | 14x15,5 | 50 |
| 21650st7 | M16x1,5 | 6,0 | 6,5 – 4,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st8 | M16x1,5 | 6,0 | 8,0 – 5,0 | 20,0 | 19x21/17x18,9 | 50 |
| 21650st9 | M16x1,5 | 6,0 | 9,5 – 6,5 | 20,0 | 19x21/17x18,9 | 50 |
| 22051st7 | M20x1,5 | 6,5 | 6,5 – 4,0 | 20,0 | 22x24,4 | 50 |
| 22051st8 | M20x1,5 | 6,5 | 8,0 – 5,0 | 20,0 | 22x24,4 | 50 |
| 22051st9 | M20x1,5 | 6,5 | 9,5 – 6,5 | 20,0 | 22x24,4 | 50 |
| 22051st11 | M20x1,5 | 6,5 | 10,5 – 7,0 | 20,0 | 22x24,4 | 50 |
| 22052st7 | M20x1,5 | 6,5 | 6,5 – 4,0 | 21,0 | 22x24,4 | 50 |
| 22052st8 | M20x1,5 | 6,5 | 8,0 – 5,0 | 21,0 | 22x24,4 | 50 |
| 22052st9 | M20x1,5 | 6,5 | 9,5 – 6,5 | 21,0 | 22x24,4 | 50 |
| 22052st11 | M20x1,5 | 6,5 | 10,5 – 7,0 | 21,0 | 22x24,4 | 50 |
| 22052st13 | M20x1,5 | 6,5 | 13,0 – 9,0 | 21,0 | 22x24,4 | 50 |
| 22553st7 | M25x1,5 | 7,5 | 6,5 – 4,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st8 | M25x1,5 | 7,5 | 8,0 – 5,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st9 | M25x1,5 | 7,5 | 9,5 – 6,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st11 | M25x1,5 | 7,5 | 10,5 – 7,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st13 | M25x1,5 | 7,5 | 13,0 – 9,0 | 21,0 | 27x29,5/24x26,7 | 50 |
| 22553st16 | M25x1,5 | 7,5 | 15,5 – 11,5 | 21,0 | 27x29,5/24x26,7 | 50 |
| 23254st11 | M32x1,5 | 8,0 | 10,5 – 7,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st13 | M32x1,5 | 8,0 | 13,0 – 9,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st16 | M32x1,5 | 8,0 | 15,5 – 11,5 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st18 | M32x1,5 | 8,0 | 18,0 – 14,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 23254st20 | M32x1,5 | 8,0 | 20,5 – 17,0 | 26,0 | 36x39,5/30x33,5 | 25 |
| 24055st16 | M40x1,5 | 8,0 | 15,5 – 11,5 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st18 | M40x1,5 | 8,0 | 18,0 – 14,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st20 | M40x1,5 | 8,0 | 20,5 – 17,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st25 | M40x1,5 | 8,0 | 25,0 – 20,0 | 28,0 | 46x50/41x44,5 | 10 |
| 24055st28 | M40x1,5 | 8,0 | 28,0 – 24,0 | 28,0 | 46x50/41x44,5 | 10 |
| 25056st32 | M50x1,5 | 10,0 | 32,0 – 27,0 | 29,0 | 55x60,5/50x54 | 5 |
| 25056st34 | M50x1,5 | 10,0 | 34,0 – 29,0 | 29,0 | 55x60,5/50x54 | 5 |
| 25056st36 | M50x1,5 | 10,0 | 36,0 – 32,0 | 29,0 | 55x60,5/50x54 | 5 |
| 26358st44 ** | M63x1,5 | 10,0 | 44,0 – 39,0 | 30,0 | 68x74/65x70 | 5 |
