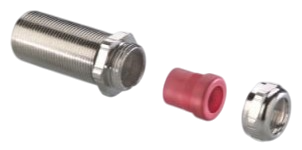

Pflitsch UNI Dicht bulkhead gland - brass bulkhead gland with TPE/TPE-V/silicone HT sealing
- UNI Dicht bulkhead gland - brass nickel-plated bulkhead gland with TPE/TPE-V/silicone HT sealing insert by Pflitsch. thread: M20-M40, protection degree: IP68 (up to10 bar)
Pflitsch UNI Dicht bulkhead gland
Bulkhead gland made of brass nickel-plated with an exceptionally wide clamping range. This product is available with threads from M20 to M40, offers sealing IP68 (up to 10 bar) and includes a sealing insert made of TPE/TPE-V/silicone HT.
Features of UNI Dicht bulkhead glands:
- Bulkhead version with extended thread (50 mm) – ideal for thick-walled enclosures
- Nickel-plated brass body – robust and corrosion-resistant
- Protection rating IP68 (up to 10 bar) with factory-mounted HNBR o-ring
- Strain relief in accordance with EN 62444, class A
- Metric thread according to EN 60423 – easy integration into industrial systems
- Multiple sealing options: TPE, TPE-V, silicone HT
- Temperature range from -55 °C to +200 °C (depending on insert type)
Applications
- Enclosures and panels with thick walls
- Industrial installations and automation
- Control cabinets and distribution boxes
- Measurement and instrumentation systems
- Marine and offshore applications
- Projects requiring long-thread bulkhead glands
- Areas with extreme thermal or chemical resistance requirements

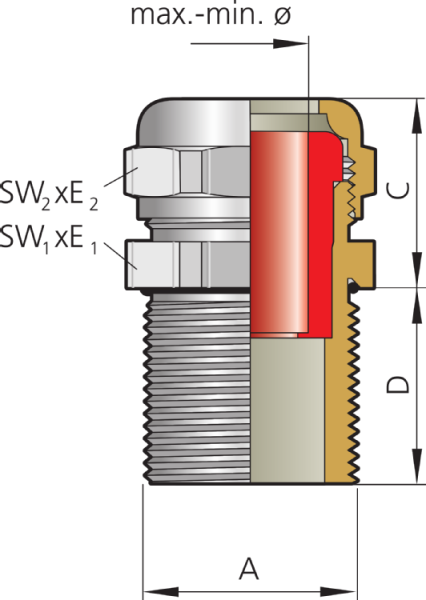

| Part No. | Thread A |
Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 22052d 7/50lg | M20x1,5 | 50,0 | 6,5 – 4,0 | 21,0 | 22x24,4 | 10 |
| 22052d 8/50lg | M20x1,5 | 50,0 | 8,0 – 5,0 | 21,0 | 22x24,4 | 50 |
| 22052d 9/50lg | M20x1,5 | 50,0 | 9,5 – 6,5 | 21,0 | 22x24,4 | 10 |
| 22052d 11/50lg | M20x1,5 | 50,0 | 10,5 – 7,0 | 21,0 | 22x24,4 | 10 |
| 22052d 13/50lg | M20x1,5 | 50,0 | 13,0 – 9,0 | 21,0 | 22x24,4 | 50 |
| 22553d 7/50lg | M25x1,5 | 50,0 | 6,5 – 4,0 | 21,0 | 28x31,2/24x26,7 | 10 |
| 22553d 8/50lg | M25x1,5 | 50,0 | 8,0 – 5,0 | 21,0 | 28x31,2/24x26,7 | 10 |
| 22553d 9/50lg | M25x1,5 | 50,0 | 9,5 – 6,5 | 21,0 | 28x31,2/24x26,7 | 10 |
| 22553d 11/50lg | M25x1,5 | 50,0 | 10,5 – 7,0 | 21,0 | 28x31,2/24x26,7 | 10 |
| 22553d 13/50lg | M25x1,5 | 50,0 | 13,0 – 9,0 | 21,0 | 28x31,2/24x26,7 | 10 |
| 22553d 16/50lg | M25x1,5 | 50,0 | 15,5 – 11,5 | 21,0 | 28x31,2/24x26,7 | 50 |
| 23254d 11/50lg | M32x1,5 | 50,0 | 10,5 – 7,0 | 26,0 | 35x38,5/30x33,5 | 5 |
| 23254d 13/50lg | M32x1,5 | 50,0 | 13,0 – 9,0 | 26,0 | 35x38,5/30x33,5 | 5 |
| 23254d 16/50lg | M32x1,5 | 50,0 | 15,5 – 11,5 | 26,0 | 35x38,5/30x33,5 | 5 |
| 23254d 18/50lg | M32x1,5 | 50,0 | 18,0 – 14,0 | 26,0 | 35x38,5/30x33,5 | 5 |
| 23254d 20/50lg | M32x1,5 | 50,0 | 20,5 – 17,0 | 26,0 | 35x38,5/30x33,5 | 5 |
| 24055d 16/50lg | M40x1,5 | 50,0 | 15,5 – 11,5 | 29,0 | 43x47,3/40x43,5 | 5 |
| 24055d 18/50lg | M40x1,5 | 50,0 | 18,0 – 14,0 | 29,0 | 43x47,3/40x43,5 | 5 |
| 24055d 20/50lg | M40x1,5 | 50,0 | 20,5 – 17,0 | 29,0 | 43x47,3/40x43,5 | 5 |
| 24055d 25/50lg | M40x1,5 | 50,0 | 25,0 – 20,0 | 29,0 | 43x47,3/40x43,5 | 5 |
| 24055d 28/50lg | M40x1,5 | 50,0 | 28,0 – 24,0 | 29,0 | 43x47,3/40x43,5 | 5 |
To download
Producer
Product code
UNI Dicht cable gland
Material
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
, TPE-V
, Silicone HT
Thread
M20
, M25
, M32
, M40
Sealing range in millimeters
4-6.5 mm
, 5-8 mm
, 6.5-9.5 mm
, 7-10,5 mm
, 9-13 mm
, 11.5-15.5 mm
, 14-18 mm
, 17-20.5 mm
, 20-25 mm
, 24-28 mm
Thread length in millimeters
50
Product height in millimetres
71
, 76
, 79
Product width in millimeters
24.4
, 26,7
, 33.5
, 43,5
Ingress Protection
IP68
Colour
Unpainted
Insert color
Blue
, Black
, Brown
, Green
, Gray
, Light yellow
, Natural
, Orange
, Red
, White
, Yellow
Certificate
EN 62444
Temperature range
-40...+130°C
, -40...+135°C
, -55...+200°C
