Pflitsch UNI connector cable gland with split sealing insert - brass/stainless steel/polycarbonate/PVDF cable gland with split TPE-V sealing insert
- UNI connector cable gland with split sealing insert- brass nickel-plated/stainless steel AISI 303/polycarbonate/PVDF cable gland with split TPE-V sealing insert by Pflitsch. thread: M40-M63, protection degree: IP68 (up to10 bar)

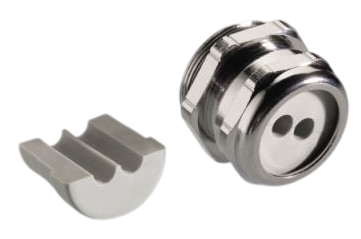

Pflitsch UNI connector cable gland with split sealing insert
Cable gland made of brass nickiel-plated/stainless steel AISI 303/polycarbonate/PVDF with an exceptionally wide clamping range. This product is available with threads from M40 to M63, offers sealing IP68 (up to 10 bar) and includes a split sealing insert made of TPE-V.
Features of UNI connector cable gland with split sealing insert:
- Body made of nickel-plated brass, stainless steel AISI 303, PC or PVDF
- Metric connection thread according to EN 60423
- IP68 protection up to 10 bar (for PC and PVDF only with optional flat gasket)
- Split sealing insert for flexible cable adaptation
- Sealing inserts made of TPE-V (natural color)
- Wide operating temperature range: –40 °C to +135 °C (brass, stainless steel, PVDF)
- PC version allows –20 °C to +100 °C operation
Applications
- Electrical and industrial installations
- Automation and control systems
- Data transmission technology
- Installations in aggressive or corrosive environments
- Machinery requiring flexible cable sealing
- Applications with limited installation space
| Part No. | Thread A | Packing |
|---|---|---|
| 24055 pmK | M40x1,5 | 10 |
| 24055 pmK 1/ 5 | M40x1,5 | 10 |
| 24055 pmK 1/ 6 | M40x1,5 | 10 |
| 24055 pmK 1/ 7 | M40x1,5 | 10 |
| 24055 pmK 1/ 8 | M40x1,5 | 10 |
| 24055 pmK 1/10 | M40x1,5 | 10 |
| 24055 pmK 1/12 | M40x1,5 | 10 |
| 24055 pmK 1/13,5 | M40x1,5 | 10 |
| 24055 pmK 1/17 | M40x1,5 | 10 |
| 24055 pmK 1/21 | M40x1,5 | 10 |
| 24055 pmK 1/6-1/ 8,5 | M40x1,5 | 10 |
| 24055 pmK 2/6 | M40x1,5 | 10 |
| 24055 pmK 2/8 | M40x1,5 | 10 |
| 24055 pmK 2/10 | M40x1,5 | 10 |
| 24056 pmK * | M40x1,5 | 10 |
| 25056 pmK | M50x1,5 | 5 |
| 25056 pmK 1/ 4,5 | M50x1,5 | 5 |
| 25056 pmK 1/ 8 | M50x1,5 | 5 |
| 25056 pmK 1/10 | M50x1,5 | 5 |
| 25056 pmK 1/11 | M50x1,5 | 5 |
| 25056 pmK 1/12 | M50x1,5 | 5 |
| 25056 pmK 1/21 | M50x1,5 | 5 |
| 25056 pmK 1/23 | M50x1,5 | 5 |
| 25056 pmK 1/4,5-1/ 9-1/9,5 | M50x1,5 | 5 |
| 25056 pmK 1/5-1/10-1/10,5 | M50x1,5 | 5 |
| 25056 pmK 1/8-1/10,5-1/12 | M50x1,5 | 5 |
| 25056 pmK 2/6 | M50x1,5 | 5 |
| 25056 pmK 2/8 | M50x1,5 | 5 |
| 25056 pmK 2/11,5 | M50x1,5 | 5 |
| 25056 pmK 2/5,5-1/11,5 | M50x1,5 | 5 |
| 25056 pmK 3/7,2 | M50x1,5 | 5 |
| 25056 pmK 3/7,5 | M50x1,5 | 5 |
| 25056 pmK 3/7,8 | M50x1,5 | 5 |
| 25056 pmK 3/10 | M50x1,5 | 5 |
| 25057 pmK * ** | M50x1,5 | 5 |
| 25057 pmK 1/9 * ** | M50x1,5 | 5 |
| 25057 pmK 1/22 | M50x1,5 | 5 |
| 25057 pmK 1/26 * ** | M50x1,5 | 5 |
| 25057 pmK 1/27 * ** | M50x1,5 | 5 |
| 25057 pmK 1/30 ** | M50x1,5 | 5 |
| 25057 pmK 1/32 * ** | M50x1,5 | 5 |
| 25057 pmK 2/9 * ** | M50x1,5 | 5 |
| 26358 pmK ** | M63x1,5 | 5 |
| 26358 pmK 1/6 ** | M63x1,5 | 5 |
| 26358 pmK 1/6-1/8 ** | M63x1,5 | 5 |
| 26358 pmK 1/8 ** | M63x1,5 | 5 |
| 26358 pmK 1/28 ** | M63x1,5 | 5 |
| 26358 pmK 1/29 ** | M63x1,5 | 5 |
| 26358 pmK 1/32 ** | M63x1,5 | 5 |
| 26358 pmK 2/8 ** | M63x1,5 | 5 |
To download
Producer
Product code
UNI connector cable gland with split sealing
Material
Nickel-plated Brass
, Stainless Steel AISI 303
, Polycarbonate
, PVDF
Insert material
TPE-V
Thread
M40
, M50
, M63
Ingress Protection
IP68
Colour
Unpainted
, Grey
, Transparent
Insert color
Natural
Certificate
EN 60423
Temperature range
-40...+135°C
, -20...+100°C
