Pflitsch UNI Bending Strain relief cable gland - PVDF cable gland with strain relief with TPE-V sealing insert
- UNI Bending Strain relief cable gland - PVDF cable gland with strain relief with TPE-V sealing insert by Pflitsch. Thread: M16-M40, protection degree: IP54
Pflitsch UNI Bending Strain relief cable gland

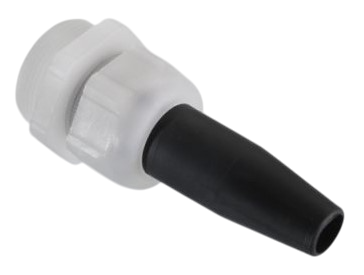

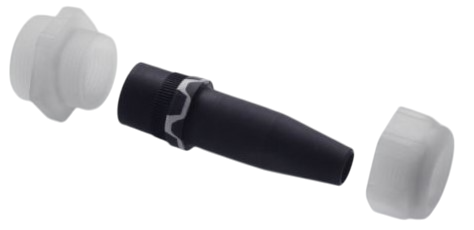

Cable gland made of PVDF with strain relief an exceptionally wide clamping range. This product is available with threads from M16 to M40, offers sealing IP54 and includes a sealing insert made of TPE-V.
Features of UNI Bending Strain Relief Cable Glands:
- PVDF body – lightweight yet mechanically robust
- Integrated strain relief – effective cable pull-out protection
- Vibration-resistant design – maintains cable stability
- Metric thread according to EN 60423
- Ingress protection rating IP54 – protection against dust and splashes
- Sealing insert made of TPE-V – secure cable clamping
- Available in grey (RAL 7035) and black (RAL 9005)
- Operating temperature range: -20 °C to +100 °C
Applications
- Control cabinets and distribution panels in dry environments
- Cable entry systems for stationary equipment
- Applications with moderate mechanical requirements
- HMI panels and push-button enclosures
- Building installations and data centers
- Consumer and industrial electronics
- Indoor use where lightweight construction is essential

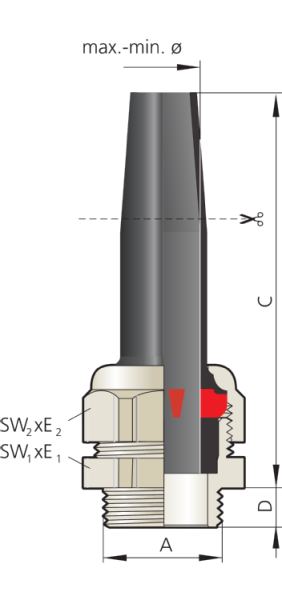

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21650y Lzp 7 | M16x1,5 | 9,0 | 6,5 – 4,5 | 55,0 | 19x21,2 | 50 |
| 21651y Lzp 9 | M16x1,5 | 8,5 | 9,0 – 6,5 | 64,0 | 22x24,5 | 50 |
| 22052y Lzp 9 | M20x1,5 | 9,0 | 9,5 – 6,5 | 72,0 | 24x26,5 | 50 |
| 22052y Lzp11 | M20x1,5 | 9,0 | 10,5 – 8,5 | 72,0 | 24x26,5 | 50 |
| 22053y Lzp13 | M20x1,5 | 9,0 | 13,0 – 9,0 | 76,0 | 27x29,5 | 25 |
| 22553y Lzp 9 | M25x1,5 | 9,0 | 9,5 – 6,5 | 80,0 | 29x31,5/27x29,5 | 25 |
| 22553y Lzp11 | M25x1,5 | 9,0 | 10,5 – 7,0 | 80,0 | 29x31,5/27x29,5 | 25 |
| 22553y Lzp13 | M25x1,5 | 9,0 | 13,0 – 9,0 | 80,0 | 29x31,5/27x29,5 | 25 |
| 22554y Lzp16 | M25x1,5 | 11,0 | 15,5 – 13,0 | 80,0 | 33x36,5 | 10 |
| 22554y Lzp18 | M25x1,5 | 11,0 | 17,5 – 14,0 | 80,0 | 33x36,5 | 10 |
| 22555y Lzp21 | M25x1,5 | 11,0 | 20,0 – 17,0 | 104,0 | 43x46 | 10 |
| 23254y Lzp13 | M32x1,5 | 11,0 | 13,0 – 9,0 | 80,0 | 38x42/33x36,5 | 10 |
| 23254y Lzp16 | M32x1,5 | 11,0 | 15,5 – 13,0 | 80,0 | 38x42/33x36,5 | 10 |
| 23254y Lzp18 | M32x1,5 | 11,0 | 17,5 – 14,0 | 80,0 | 38x42/33x36,5 | 10 |
| 23255y Lzp21 | M32x1,5 | 11,0 | 20,0 – 17,0 | 104,0 | 43x46 | 5 |
| 23255y Lzp25 | M32x1,5 | 11,0 | 24,0 – 21,0 | 104,0 | 43x46 | 5 |
| 24055y Lzp21 | M40x1,5 | 11,5 | 20,0 – 17,0 | 108,0 | 46x50/43x46,5 | 5 |
| 24055y Lzp25 | M40x1,5 | 11,5 | 24,0 – 21,0 | 108,0 | 46x50/43x46,5 | 5 |
To download
Producer
Product code
UNI Bending Strain relief cable gland
Material
PVDF
Insert material
TPE-V
Thread
M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
4,5-6,5 mm
, 6,5-9 mm
, 6.5-9.5 mm
, 8,5-10,5 mm
, 9-13 mm
, 7-10,5 mm
, 13-15,5 mm
, 14-17,5 mm
, 17-20 mm
, 21-24 mm
Thread length in millimeters
9
, 8,5
, 11
, 11,5
Product height in millimetres
64
, 72,5
, 81
, Wysokość towaru w centymetrach
85
, 89
, 91
, 115
, 119,5
Product width in millimeters
21,2
, 24.5
, 26.5
, 29.5
, 36,5
, 46
, 46,5
Ingress Protection
IP54
Colour
Transparent
, RAL 5015 - Sky blue
, RAL 9005 - Jet Black
Insert color
Black
Certificate
EN 60423
Temperature range
-20...+100°C
