Pflitsch UNI Bending Strain relief cable gland - polycarbonate cable gland with strain relief with TPE-V sealing insert
- UNI Bending Strain relief cable gland - polycarbonate cable gland with strain relief with TPE-V sealing insert by Pflitsch. Thread: M12-M40, protection degree: IP54

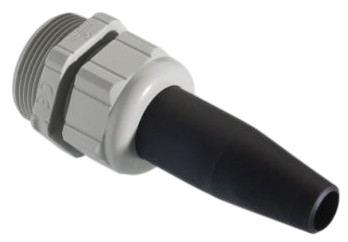

Pflitsch UNI Bending Strain relief cable gland
Cable gland made of polycarbonate with strain relief an exceptionally wide clamping range. This product is available with threads from M12 to M40, offers sealing IP54 and includes a sealing insert made of TPE-V.
Features of UNI Bending Strain Relief Cable Glands:
- Polycarbonate body – lightweight yet mechanically robust
- Integrated strain relief – effective cable pull-out protection
- Vibration-resistant design – maintains cable stability
- Metric thread according to EN 60423
- Ingress protection rating IP54 – protection against dust and splashes
- Sealing insert made of TPE-V – secure cable clamping
- Available in grey (RAL 7035) and black (RAL 9005)
- Operating temperature range: -20 °C to +100 °C
Applications
- Control cabinets and distribution panels in dry environments
- Cable entry systems for stationary equipment
- Applications with moderate mechanical requirements
- HMI panels and push-button enclosures
- Building installations and data centers
- Consumer and industrial electronics
- Indoor use where lightweight construction is essential

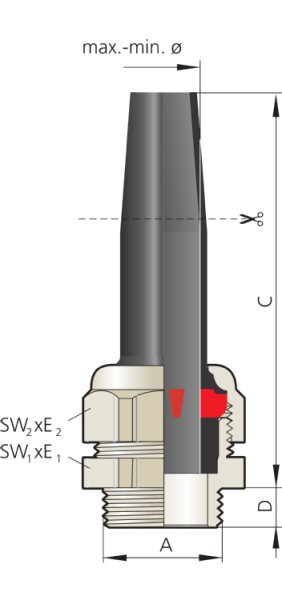

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21250PC Lzp 7 * | M12x1,5 | 8,0 | 6,5 – 4,5 | 55,0 | 19x21,2 | 50 |
| 21650PC Lzp 7 | M16x1,5 | 9,0 | 6,5 – 4,5 | 58,0 | 19x21,2 | 50 |
| 21651PC Lzp 9 * | M16x1,5 | 8,5 | 9,0 – 6,5 | 64,0 | 22x24,5 | 50 |
| 22052PC Lzp 9 * | M20x1,5 | 9,0 | 9,5 – 6,5 | 72,0 | 24x26,5 | 50 |
| 22052PC Lzp11 * | M20x1,5 | 9,0 | 10,5 – 8,5 | 72,0 | 24x26,5 | 50 |
| 22053PC Lzp13 * | M20x1,5 | 9,0 | 13,0 – 9,0 | 75,0 | 27x29,5 | 25 |
| 22553PC Lzp 9 | M25x1,5 | 9,0 | 9,5 – 6,5 | 80,0 | 30x33/27x29,5 | 25 |
| 22553PC Lzp11 | M25x1,5 | 9,0 | 10,5 – 7,0 | 80,0 | 30x33/27x29,5 | 25 |
| 22553PC Lzp13 | M25x1,5 | 9,0 | 13,0 – 9,0 | 80,0 | 30x33/27x29,5 | 25 |
| 22554PC Lzp16 * | M25x1,5 | 11,0 | 15,5 – 13,0 | 80,0 | 33x36,5 | 10 |
| 22554PC Lzp18 * | M25x1,5 | 11,0 | 17,5 – 14,0 | 80,0 | 33x36,5 | 10 |
| 23254PC Lzp13 | M32x1,5 | 11,0 | 13,0 – 9,0 | 80,0 | 36x39,5/33x36,5 | 10 |
| 23254PC Lzp16 | M32x1,5 | 11,0 | 15,5 – 13,0 | 80,0 | 36x39,5/33x36,5 | 10 |
| 23254PC Lzp18 | M32x1,5 | 11,0 | 17,5 – 14,0 | 80,0 | 36x39,5/33x36,5 | 10 |
| 23255PC Lzp21 * | M32x1,5 | 11,0 | 20,5 – 17,0 | 104,0 | 43x46 | 10 |
| 23255PC Lzp25 * | M32x1,5 | 11,0 | 24,0 – 20,0 | 104,0 | 43x46 | 10 |
| 24055PC Lzp21 | M40x1,5 | 11,5 | 20,5 – 17,0 | 108,0 | 46x50/43x46,5 | 5 |
| 24055PC Lzp25 | M40x1,5 | 11,5 | 24,0 – 20,0 | 108,0 | 46x50/43x46,5 | 5 |
To download
Producer
Product code
UNI Bending Strain relief cable gland
Material
Polycarbonate
Insert material
TPE-V
Thread
M12
, M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
4,5-6,5 mm
, 6.5-9.5 mm
, 8,5-10,5 mm
, 9-13 mm
, 7-10,5 mm
, 13-15,5 mm
, 14-17,5 mm
, 17-20.5 mm
, 20-24 mm
Thread length in millimeters
8
, 9
, 8,5
, 11
, 11,5
Product height in millimetres
63
, 67
, 72,5
, 81
, Wysokość towaru w centymetrach
84
, 89
, 91
, 115
, 119,5
Product width in millimeters
21,2
, 24.5
, 26.5
, 29.5
, 36,5
, 46
, 46,5
Ingress Protection
IP54
Colour
RAL 7035 - Light grey
, RAL 9005 - Jet Black
Insert color
Black
Certificate
EN 60423
Temperature range
-20...+100°C
