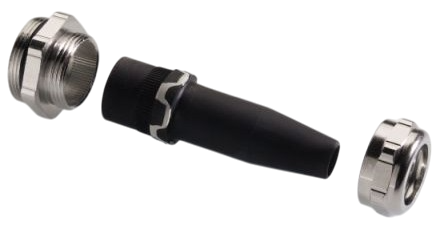

Pflitsch UNI Bending Strain relief cable gland - brass cable gland with strain relief with TPE-V sealing insert
- UNI Bending Strain relief cable gland - brass nickiel-plated cable gland with strain relief with TPE-V sealing insert by Pflitsch. Thread: M12-M40, protection degree: IP54
Pflitsch UNI Bending Strain relief cable gland
Cable gland made of brass nickiel-plated with strain relief an exceptionally wide clamping range. This product is available with threads from M12 to M40, offers sealing IP54 and includes a sealing insert made of TPE-V.
Features of UNI Bending Strain Relief Cable Glands:
- Nickel-plated brass body – corrosion-resistant and mechanically robust
- Integrated strain relief – secure cable retention under tensile load
- Vibration-resistant design – enhances connection stability
- Metric thread according to EN 60423
- Built-in HNBR o-ring – effective ingress sealing at cable entry
- Sealing insert made of TPE-V – ensures firm grip on the cable
- Ingress protection class IP54 – protection against dust and water splashes
- Available with Pg thread and optional long thread on request
- Operating temperature range: -20 °C to +100 °C
Applications
- Industrial cabling systems exposed to vibration
- Control enclosures with dynamic cable movement
- Installations with moderate environmental requirements
- Machinery and equipment with repetitive motion cycles
- Operator panels and HMI devices
- Applications requiring secure strain relief performance

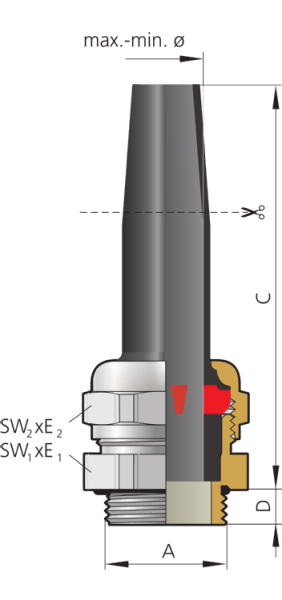

| Part No. | Thread A | Thread length D [mm] | Sealing range max-min ø [mm] | Mounting height C [mm] | Spanner width SW1 x E1/SW2 x E2 [mm] | Packing |
|---|---|---|---|---|---|---|
| 21250dLzp 7* | M12x1,5 | 5,0 | 6,5 – 4,5 | 54,0 | 17x18,9 | 50 |
| 21650dLzp 7 | M16x1,5 | 6,0 | 6,5 – 4,5 | 54,0 | 18x20/17x18,9 | 50 |
| 21651dLzp 9* | M16x1,5 | 6,0 | 9,0 – 6,0 | 63,0 | 20x22,2 | 50 |
| 21652dLzp 9* | M16x1,5 | 6,0 | 9,5 – 6,5 | 68,0 | 22x24,4 | 50 |
| 21652dLzp11* | M16x1,5 | 6,0 | 10,5 – 8,5 | 68,0 | 22x24,4 | 50 |
| 22051dLzp 9 | M20x1,5 | 6,5 | 9,5 – 6,5 | 69,0 | 22x24,4/20x22,2 | 50 |
| 22052dLzp 9 | M20x1,5 | 6,5 | 9,5 – 6,5 | 69,0 | 22x24,4 | 50 |
| 22052dLzp11 | M20x1,5 | 6,5 | 10,5 – 8,5 | 69,0 | 22x24,4 | 50 |
| 22053dLzp13* | M20x1,5 | 6,5 | 13,0 – 9,0 | 77,0 | 24x26,7 | 25 |
| 22054dLzp16* | M20x1,5 | 6,5 | 15,5 – 13,0 | 78,0 | 30x33,5 | 10 |
| 22553dLzp 9 | M25x1,5 | 7,5 | 9,5 – 6,5 | 73,0 | 28x31,2/24x26,7 | 25 |
| 22553dLzp11 | M25x1,5 | 7,5 | 10,5 – 8,5 | 73,0 | 28x31,2/24x26,7 | 25 |
| 22553dLzp13 | M25x1,5 | 7,5 | 13,0 – 9,0 | 73,0 | 28x31,2/24x26,7 | 25 |
| 22554dLzp16* | M25x1,5 | 7,5 | 15,5 – 13,0 | 78,0 | 30x33,5 | 10 |
| 23254dLzp13 | M32x1,5 | 8,0 | 13,0 – 9,0 | 78,0 | 35x38,5/30x33,5 | 10 |
| 23254dLzp16 | M32x1,5 | 8,0 | 15,5 – 13,0 | 78,0 | 35x38,5/30x33,5 | 10 |
| 23254dLzp18 | M32x1,5 | 8,0 | 17,5 – 14,0 | 78,0 | 35x38,5/30x33,5 | 10 |
| 23255dLzp21* | M32x1,5 | 8,0 | 20,0 – 17,0 | 103,0 | 40x43,5 | 10 |
| 24055dLzp21 | M40x1,5 | 8,0 | 20,0 – 17,0 | 104,0 | 43x47,3/40x43,5 | 10 |
| 24055dLzp25 | M40x1,5 | 8,0 | 24,5 – 21,0 | 104,0 | 43x47,3/40x43,5 | 5 |
To download
Producer
Product code
UNI Bending Strain relief cable gland
Material
Nickel-plated Brass
Insert material
TPE-V
Thread
M12
, M16
, M20
, M25
, M32
, M40
Sealing range in millimeters
4,5-6,5 mm
, 6-9 mm
, 6.5-9.5 mm
, 8,5-10,5 mm
, 9-13 mm
, 13-15,5 mm
, 14-17,5 mm
, 17-20 mm
, 21-24,5 mm
Thread length in millimeters
5
, 6
, 6.5
, 7.5
, 8
Product height in millimetres
59
, 60
, 69
, 74
, 75.5
, 83.5
, 84,5
, 80,5
, 85.5
, 86
, 111
, 112
Product width in millimeters
18.9
, 22.2
, 24,2
, 26,7
, 33.5
, 43,5
Ingress Protection
IP54
Colour
Unpainted
Insert color
Black
Certificate
EN 60423
Temperature range
-20...+100°C
