Pflitsch Splittable EMC connection bracket - brass nickel-plated splittable EMC connection bracket
- Pflitsch Splittable EMC connection bracket - brass nickel-plated splittable EMC connection bracket with spring made of non-magnetic bronze.
Pflitsch Splittable EMC connection bracket

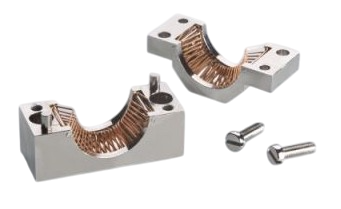

Brass nickel-plated splittable EMC connection bracket with spring made of non-magnetic bronze.
Features of Splittable EMC connection bracket:
- Splittable design – ideal for retrofitting existing cable installations
- Effective electromagnetic shielding in the range of 10 to 65 mm
- Non-magnetic bronze spring – ensures reliable 360° shielding contact
- Nickel-plated brass body, raw brass available upon request
- No sharp edges – safe installation and cable protection
- Robust construction for mounting on enclosures (mounting screws not included)
Applications
- Retrofitting cable installations
- Control and automation technology
- Machine building and control cabinets
- Systems requiring EMC shielding
- Power and data transmission technology
- Marine and offshore industries

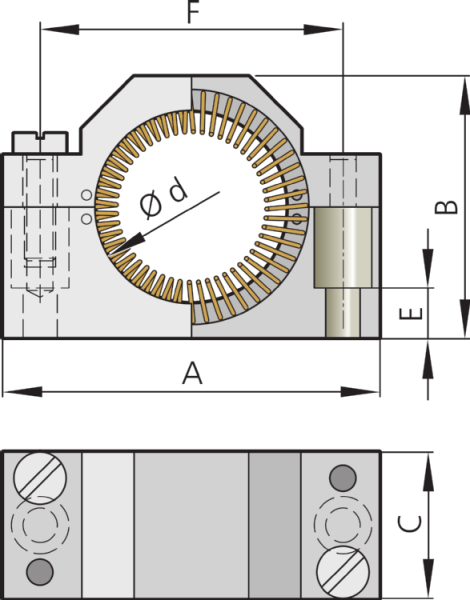

| Part No. | Screening range max-min ø [mm] |
A [mm] | B [mm] | C [mm] | ø D[mm] | E [mm] | F [mm] | Packing |
|---|---|---|---|---|---|---|---|---|
| GEA-B 225 triNM | 16,0 – 10,0 | 54 | 24,0 | 15 | 16,0 | 4,0 | 42 | 1 |
| GEA-B 232 triNM | 20,0 – 13,0 | 61 | 30,0 | 15 | 21,0 | 7,0 | 49 | 1 |
| GEA-B 240 triNM | 28,0 – 20,0 | 63 | 40,0 | 28 | 28,0 | 10,0 | 49 | 1 |
| GEA-B 250 triNM | 37,0 – 28,0 | 72 | 50,0 | 28 | 37,0 | 10,0 | 58 | 1 |
| GEA-B 263 triNM | 46,0 – 37,0 | 87 | 62,0 | 28 | 47,0 | 10,0 | 73 | 1 |
| GEA-B 275 triNM | 58,0 – 46,0 | 100 | 74,0 | 28 | 59,0 | 10,0 | 86 | 1 |
| GEA-B 285 triNM | 65,0 – 58,0 | 110 | 82,0 | 28 | 67,5 | 10,0 | 96 | 1 |
To download
Producer
Product code
Splittable EMC connection bracket
Material
Nickel-plated Brass
Product length in millimeters
15
, 28
Product width in millimeters
54
, 61
, 63
, 72
, 87
, 100
, Szerokość towaru w centymetrach
110
Product height in millimetres
24
, 30
, 40
, 50
, 62
, 74
, 82
Application features
EMC
